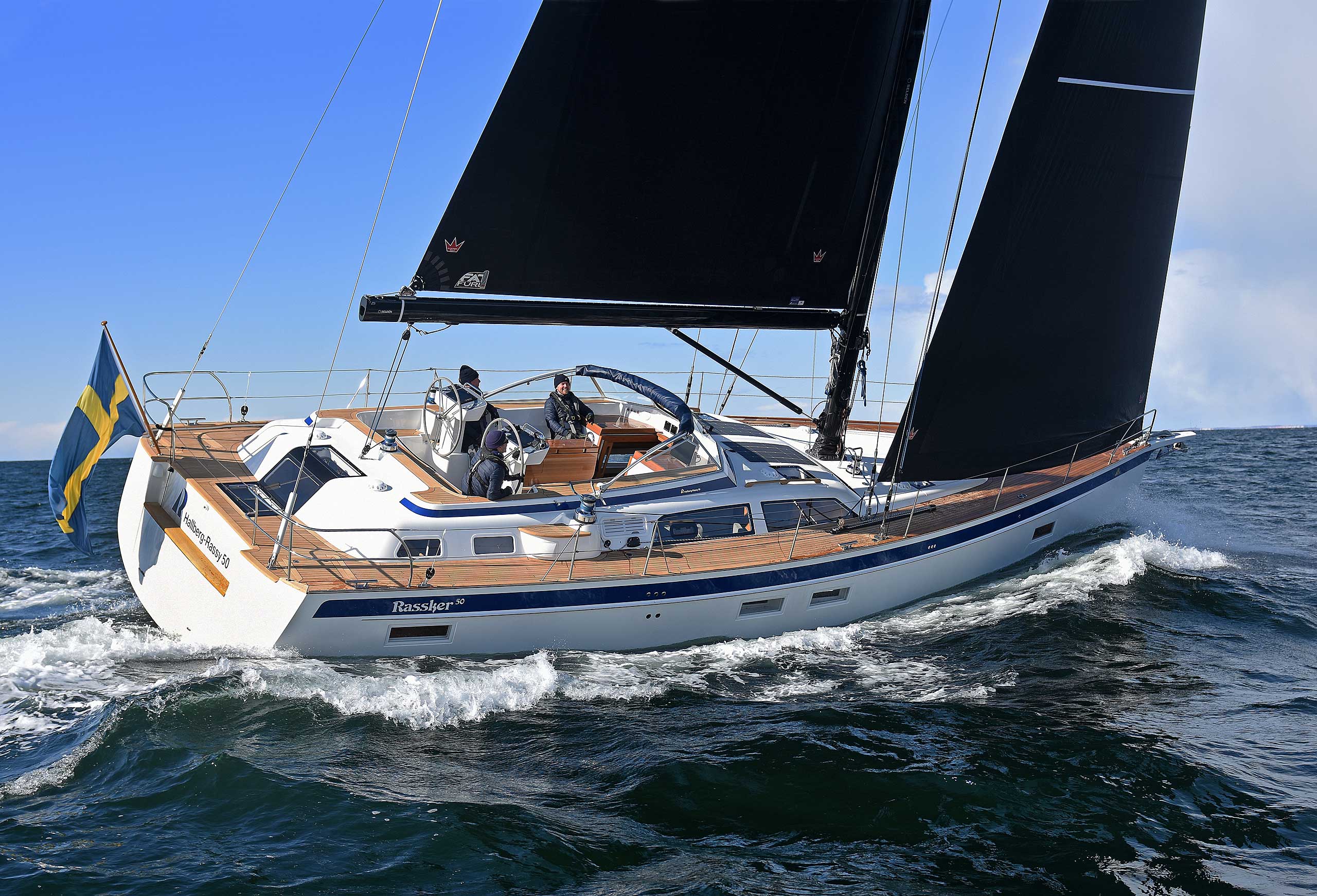

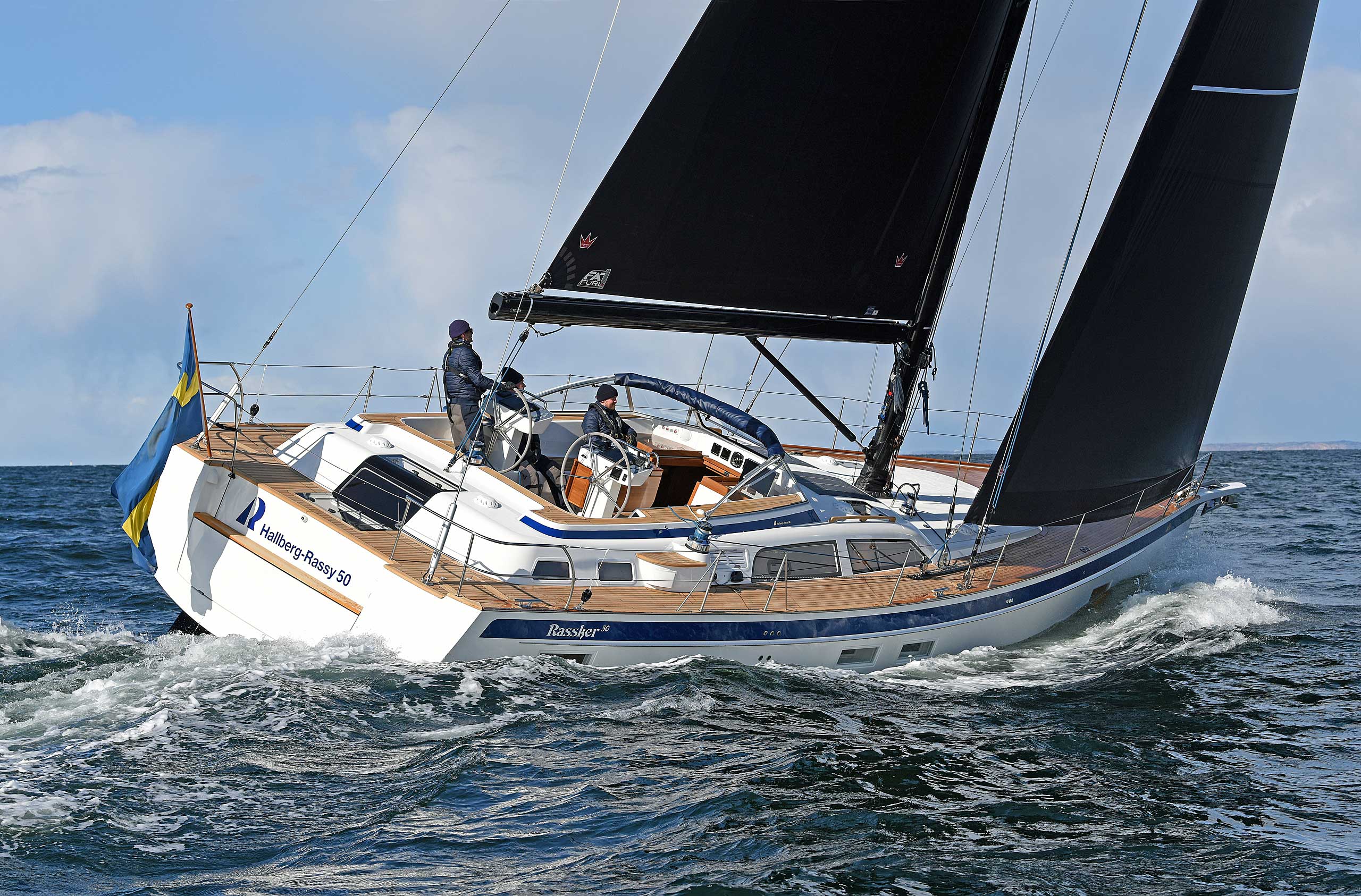

PUSHING THE BOUNDARIES

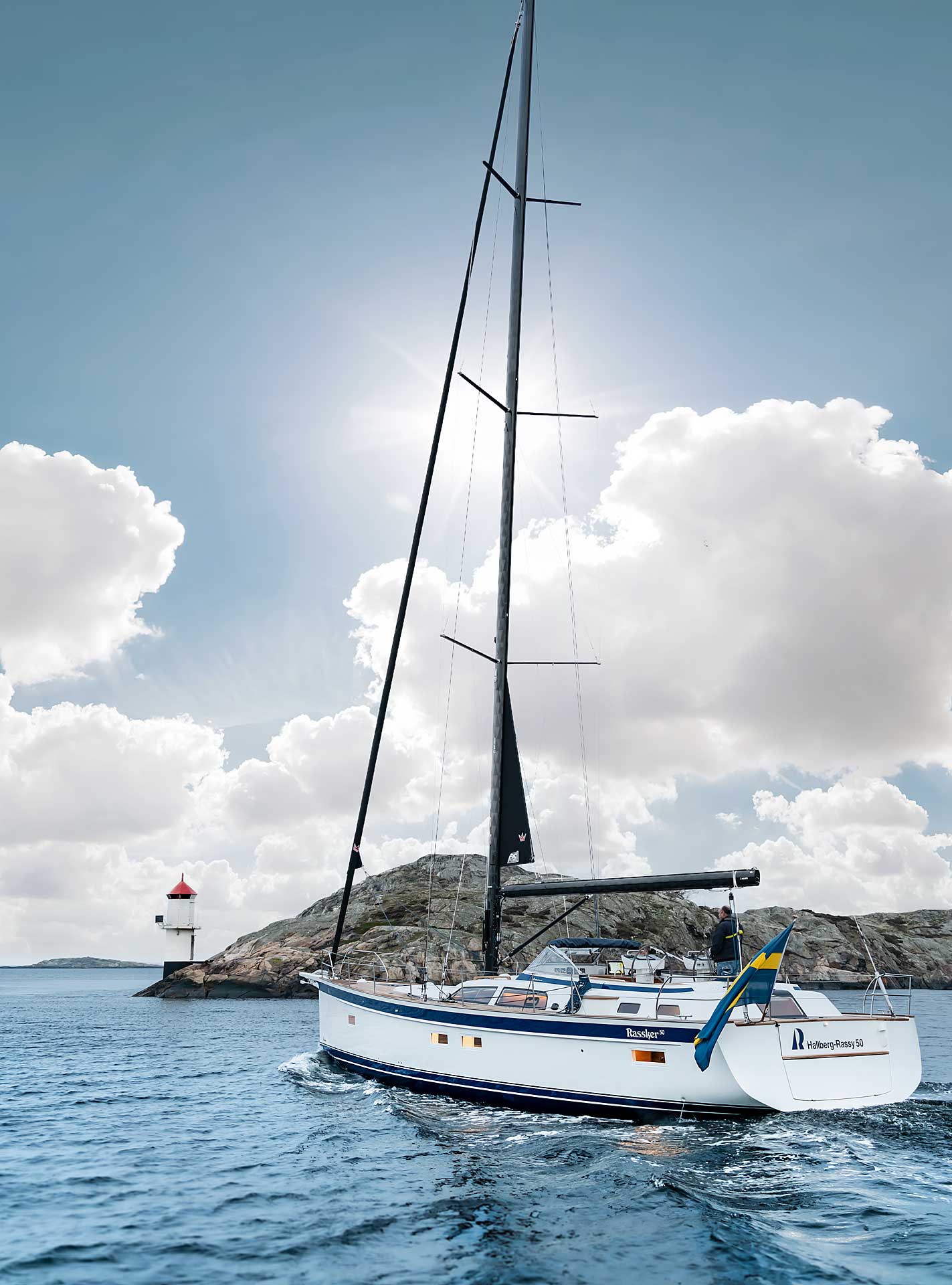

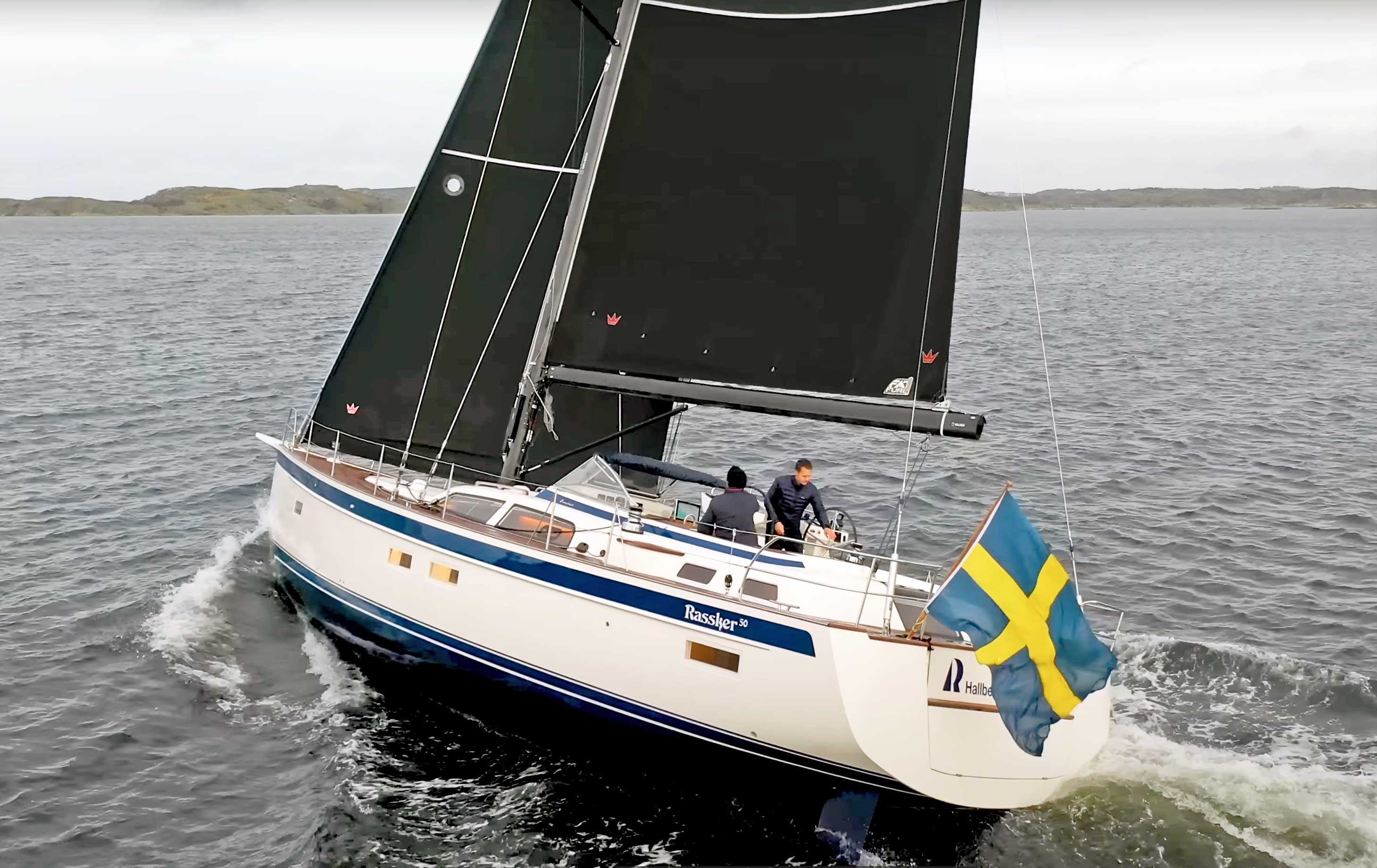

The all-new Hallberg-Rassy 50 follows the big success with the 57, 44, 40C and 340. The new 50 is designed for effortless sailing and great comfort with lots of storage. The Hallberg-Rassy 50 pushes the boundaries for what is possible up to 50 ft and at the same time remains true to the classic Hallberg-Rassy fundamentals.

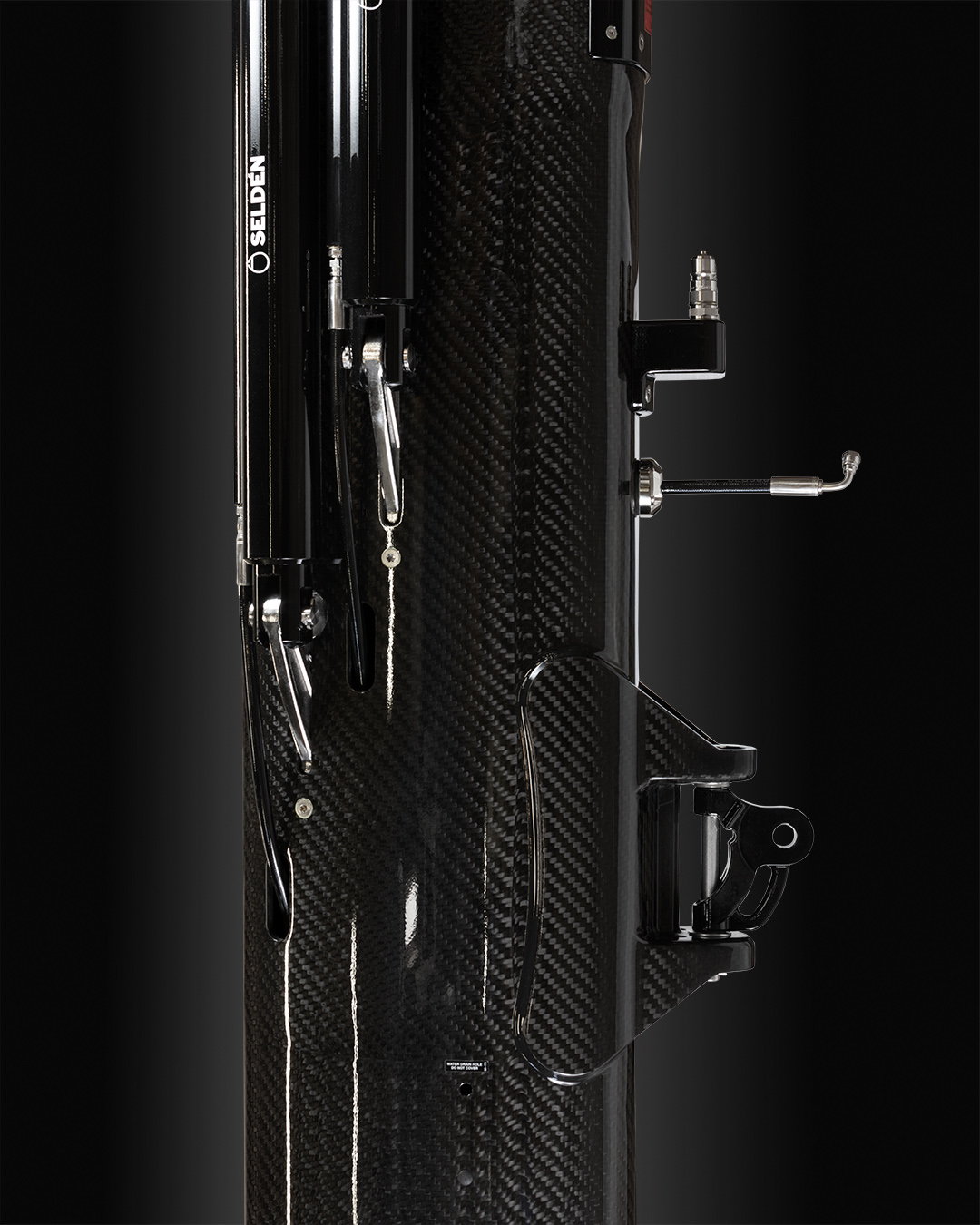

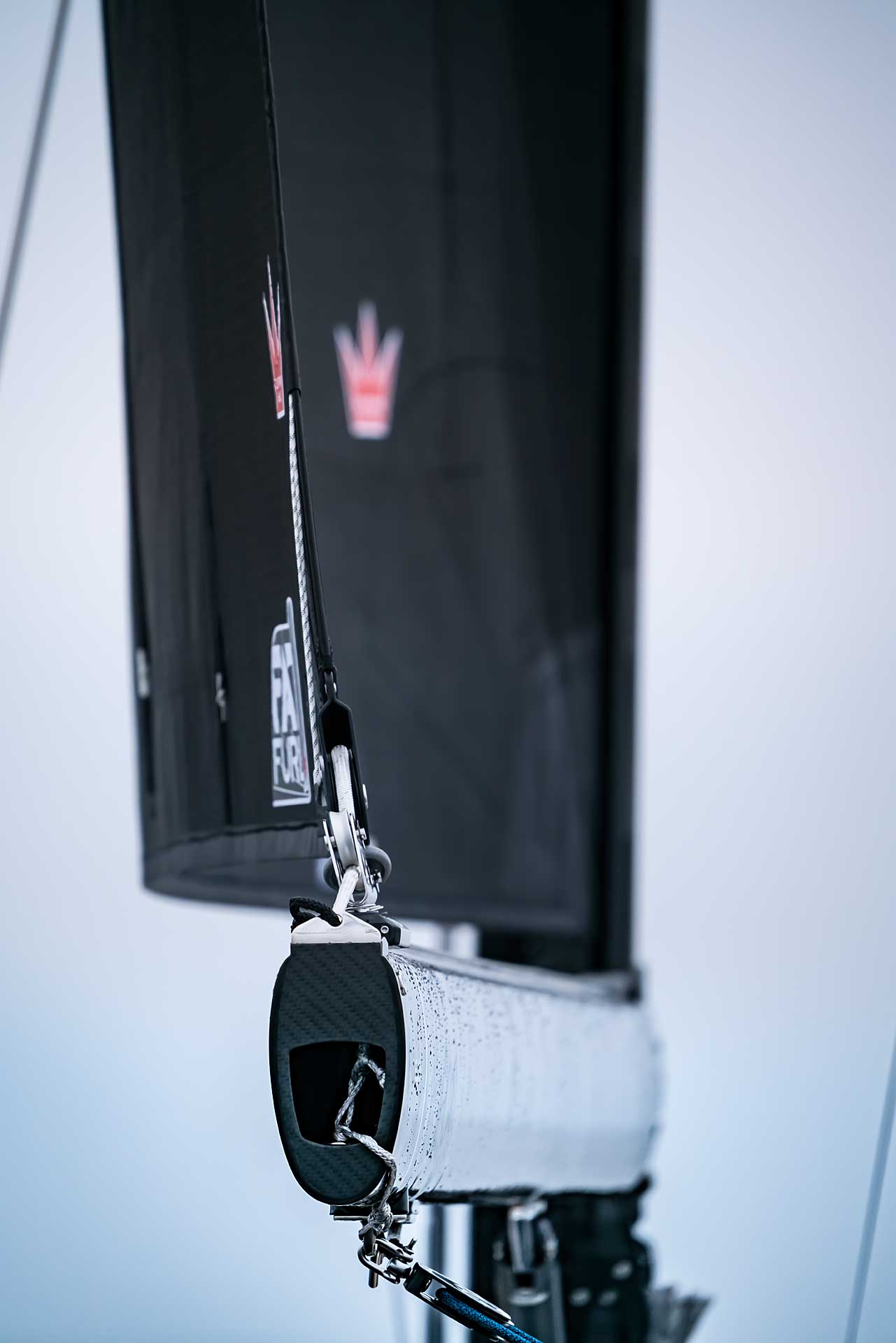

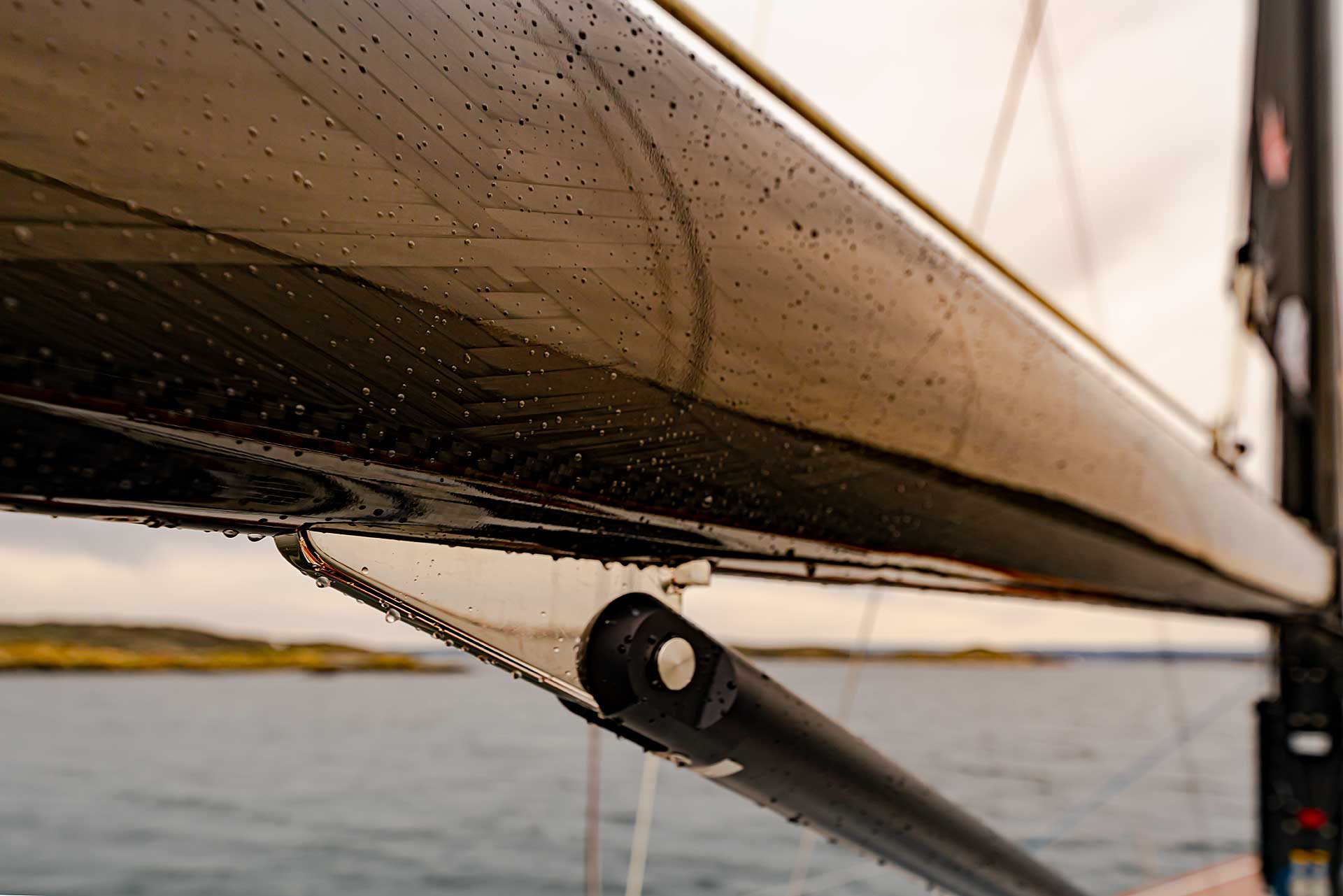

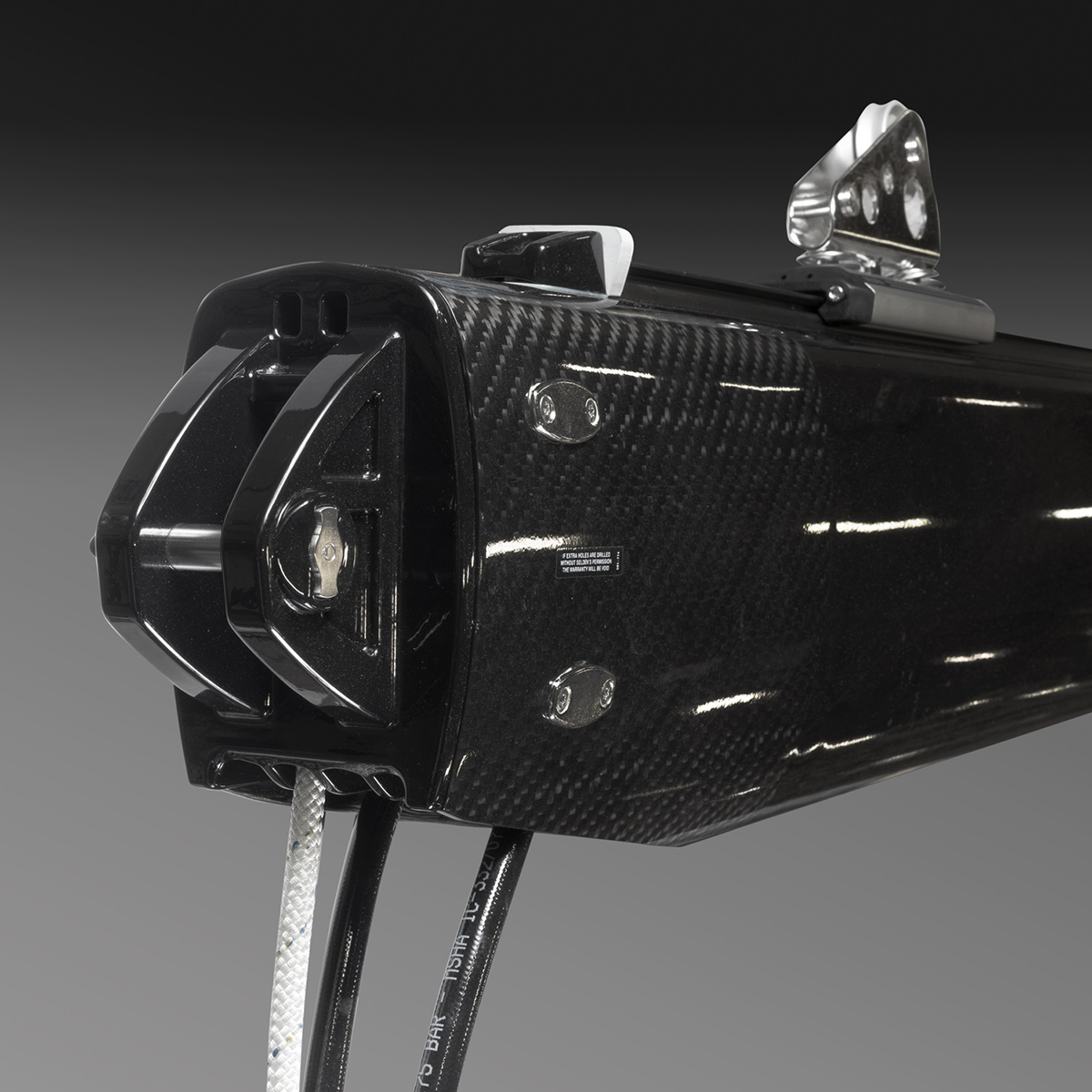

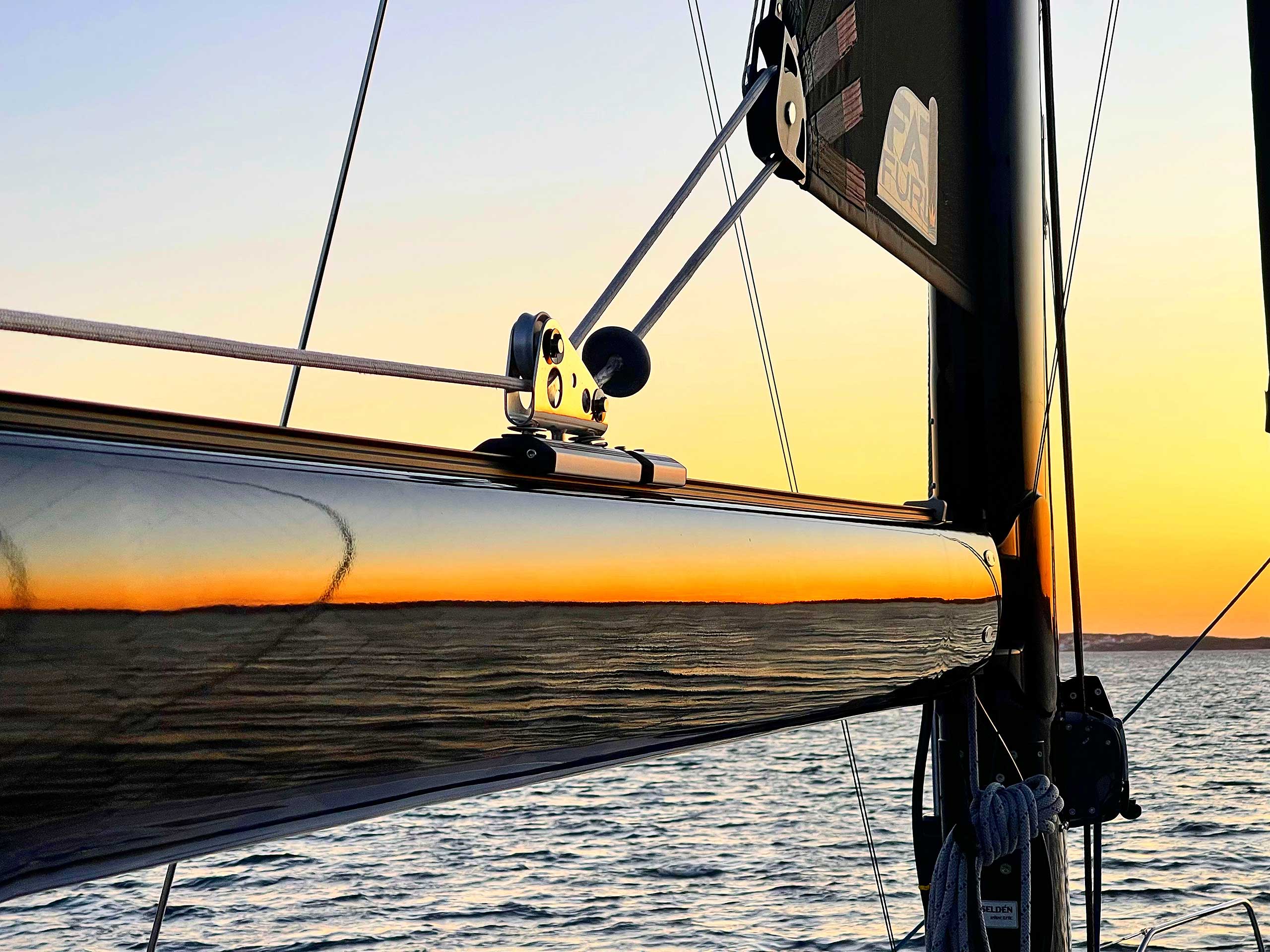

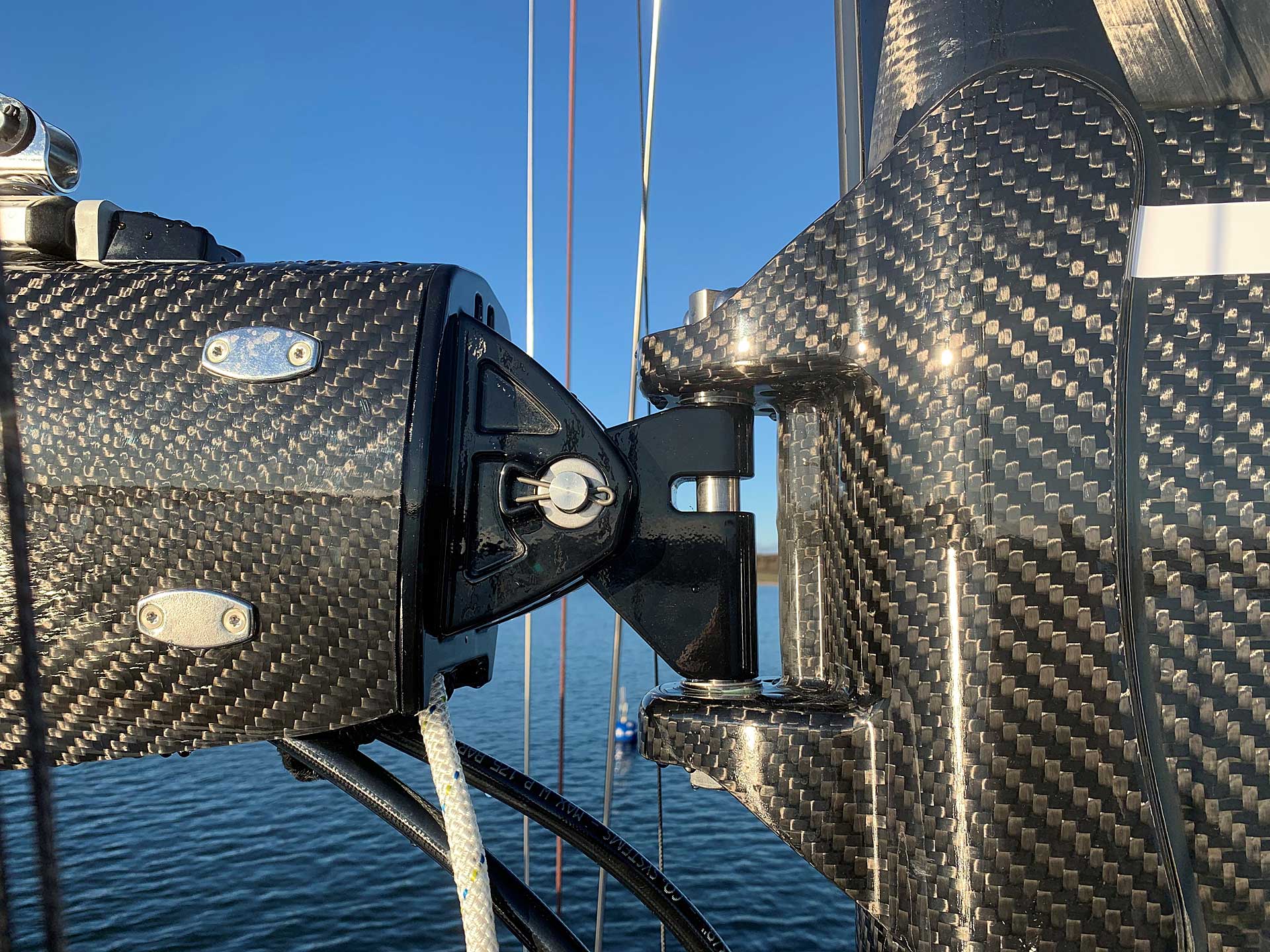

MAJOR LEAP FOR EFFORTLES CRUISING - CARBON FURLING MAST

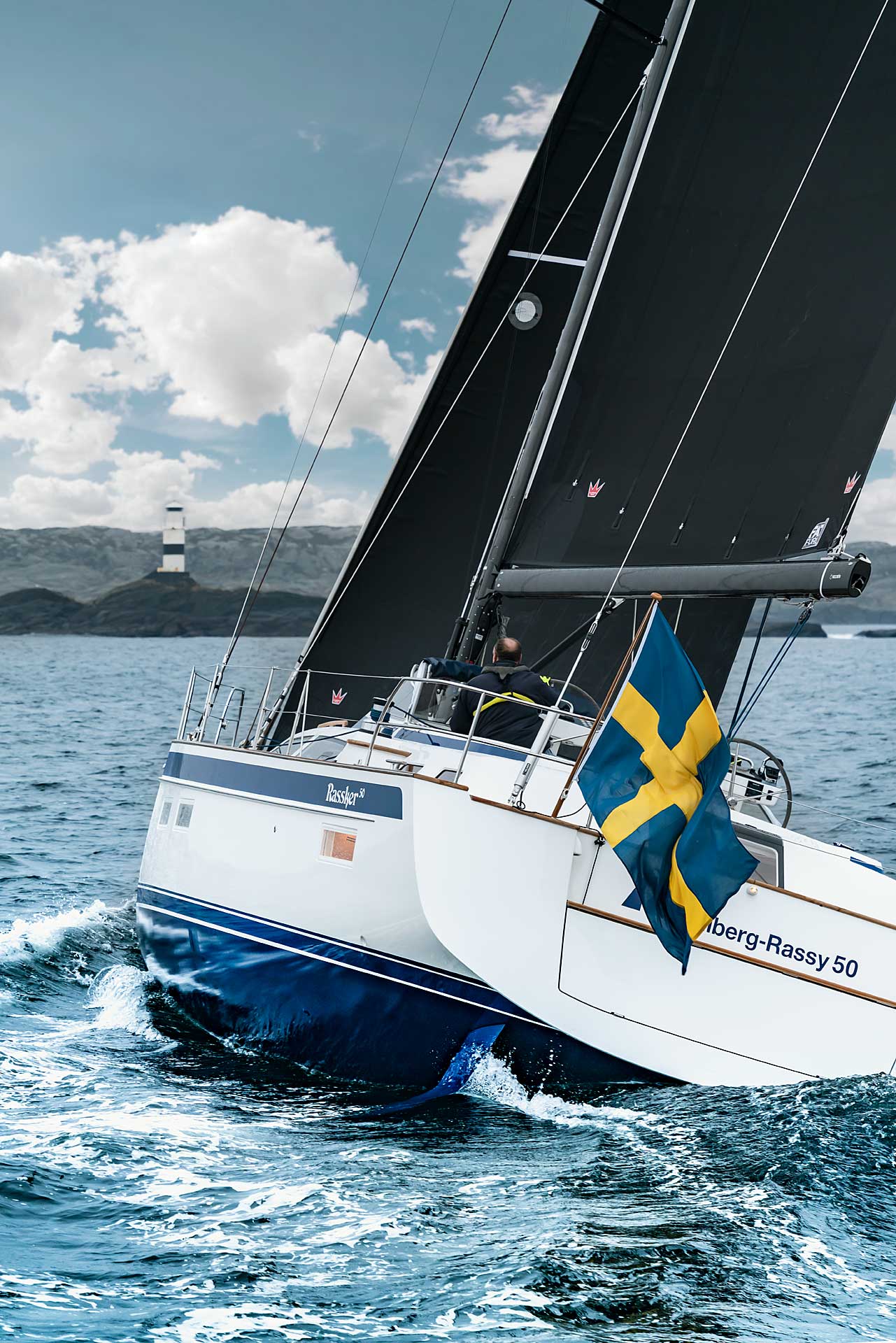

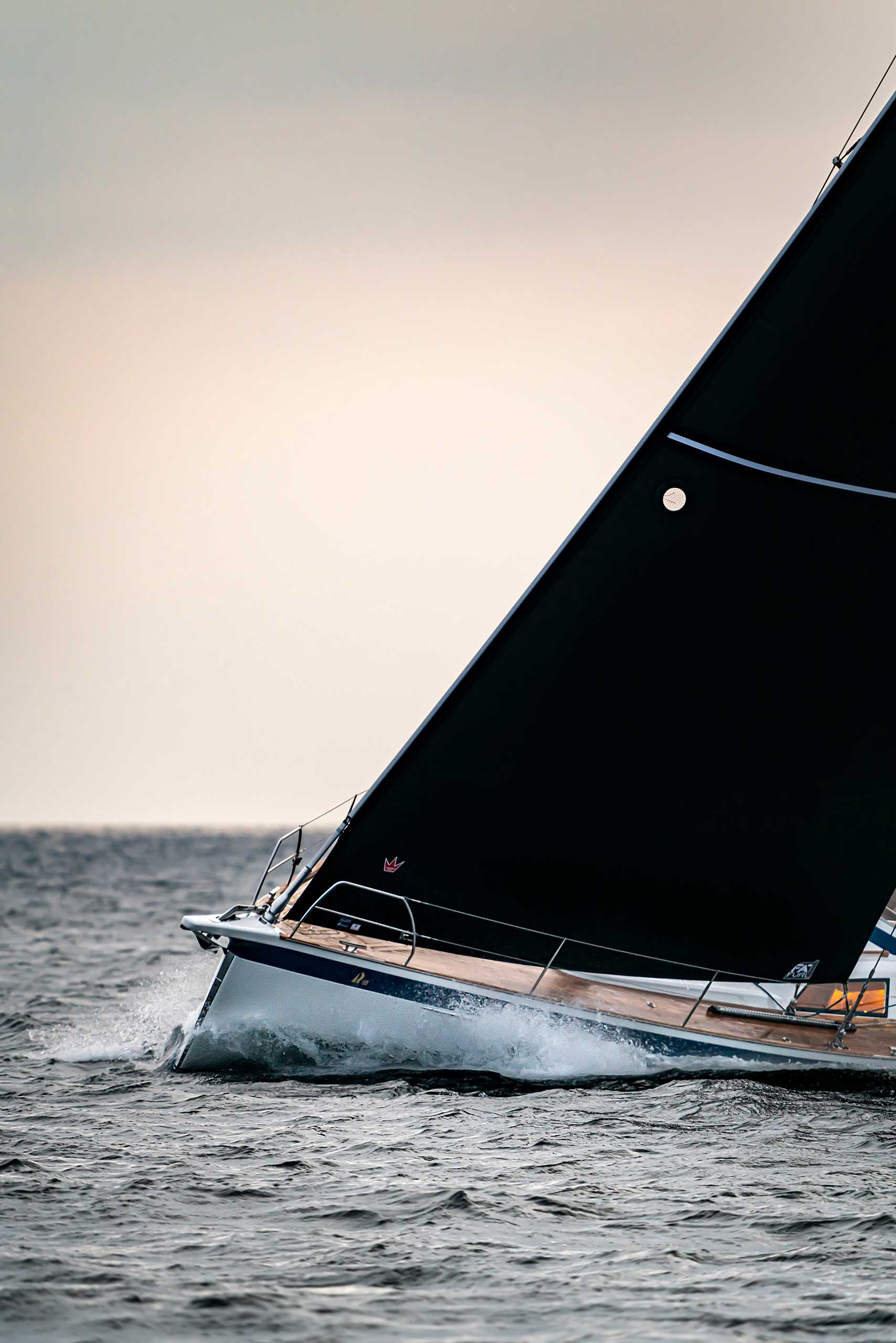

Hallberg-Rassy and Seldén are tweaking the concept of cruising by blending it with a great deal of performance. Carbon in-mast furling now takes push button performance to a completely new level. This set-up reduces the heeling and the weather helm to a minimum and improves up-wind performance. The lighter mast also makes for less pitching and pumping in choppy and big seas and the whole set-up will give a richer over-all sailing experience. Read more about it under News
LOTS OF VOLUME, COMFORT AND STORAGE

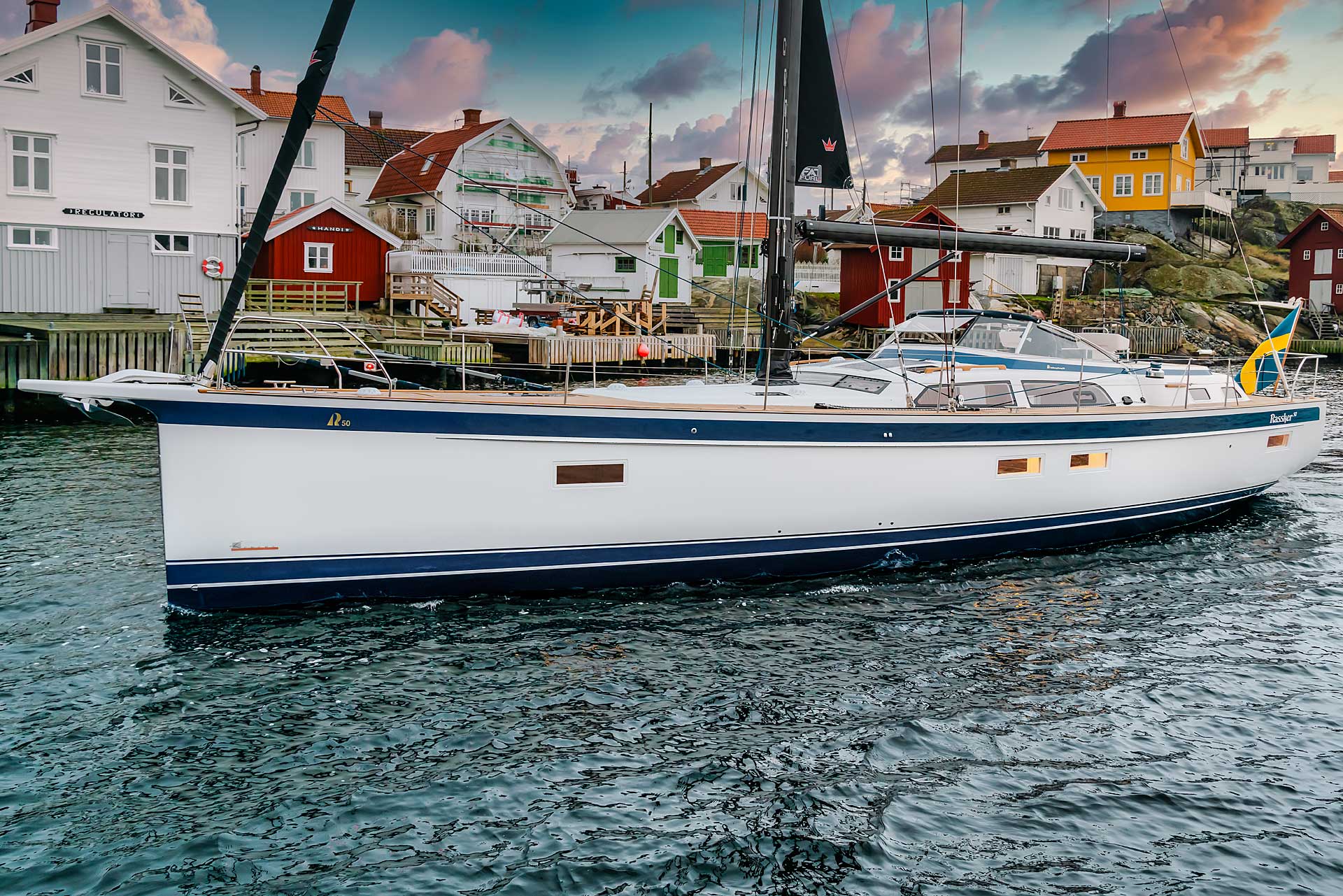

Traditionally we are used to comparing boats with hull length in feet. But much more relevant is the waterline length. The new 50 has a waterline that is as much as 50 cm / 1’ 8’’ longer than on the Hallberg-Rassy 55. Longer waterline gives better sailing performance with longer average day runs and at the same time more interior volume, comfort and storage under deck. The width is 33 cm larger at the widest point and an incredible 1.08 m wider than the 55 on the transom. That further enhances interior volume and storage.

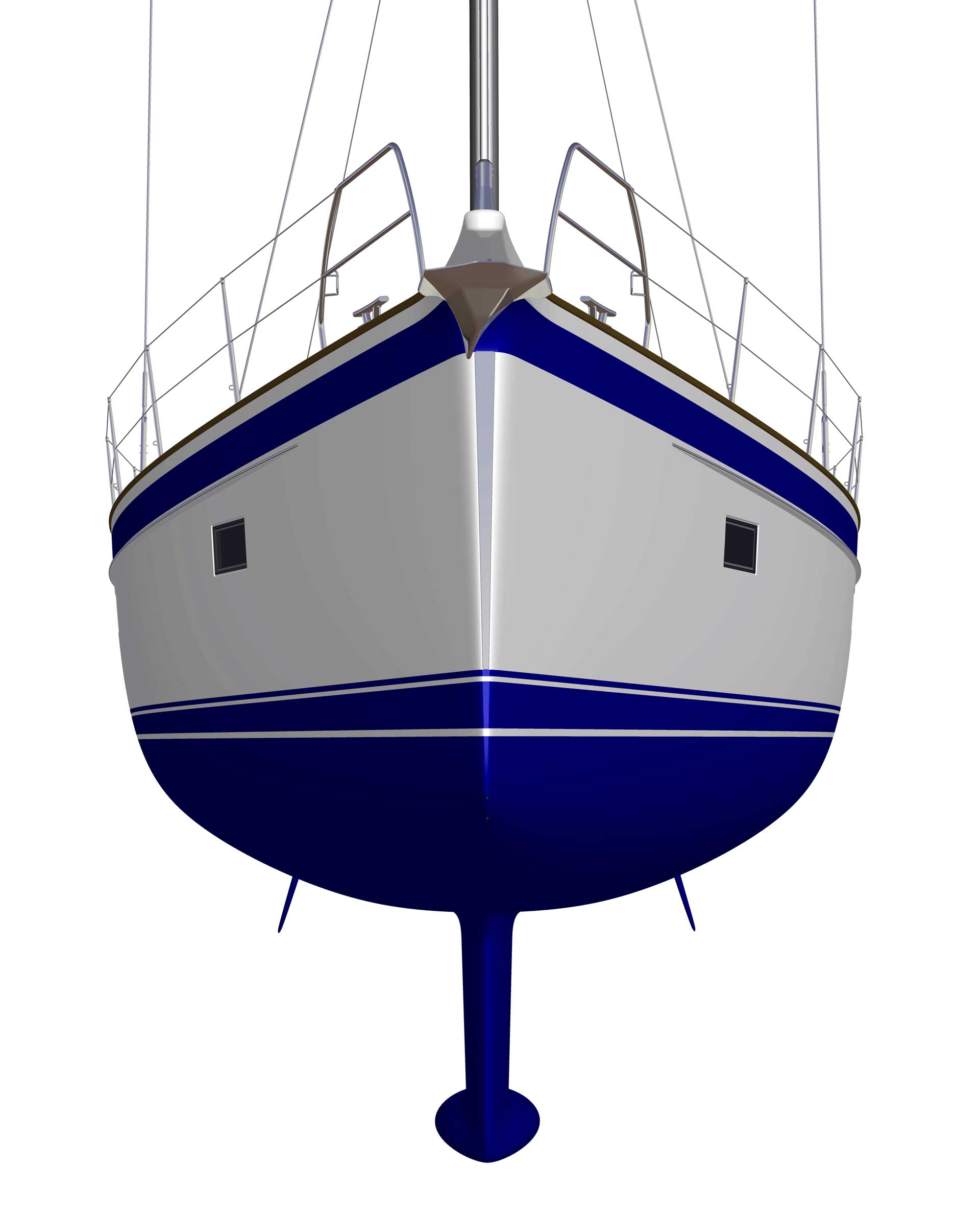

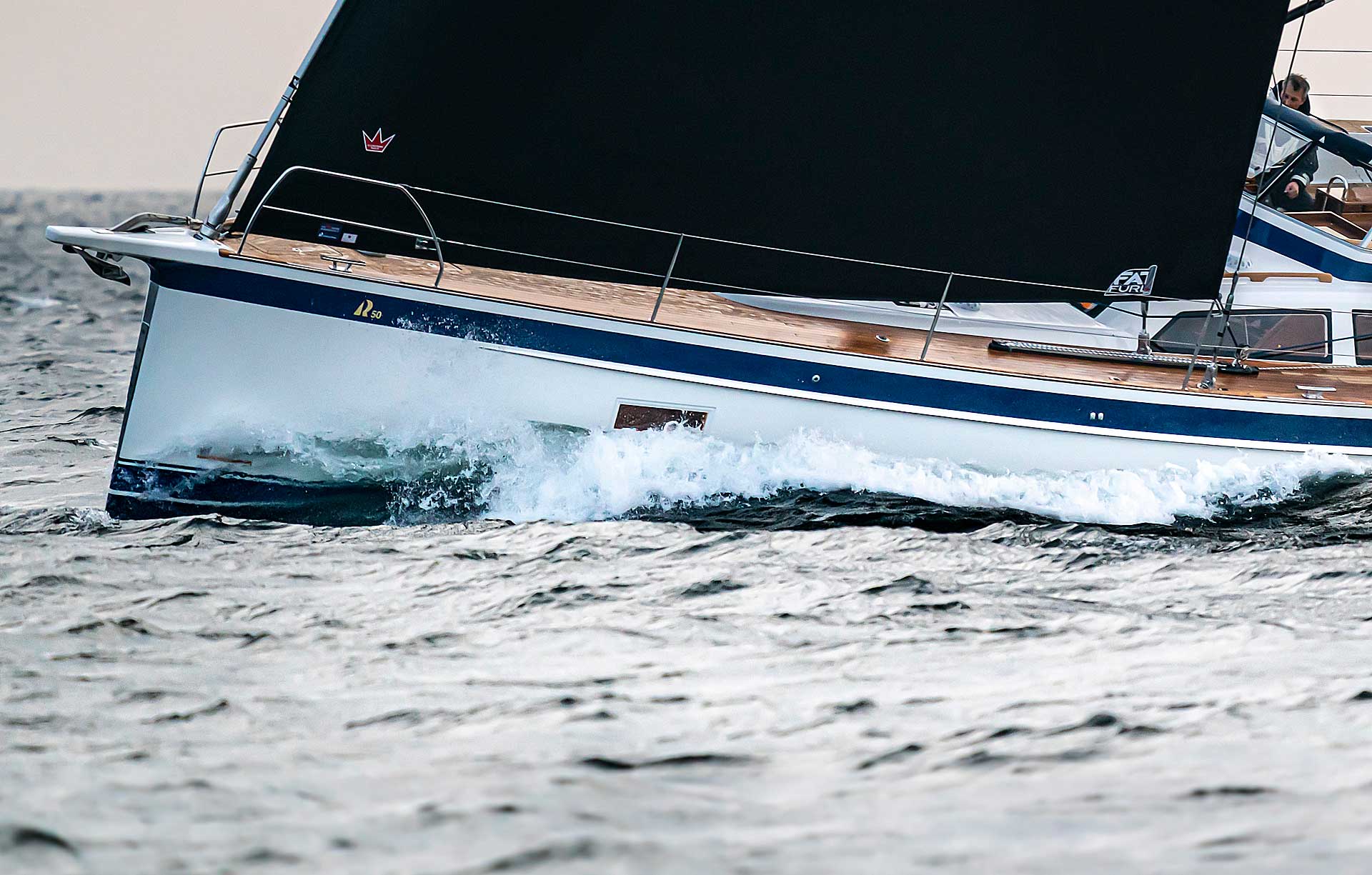

SOFT MOTION IN A SEAWAY
The modern and most efficient hull shape gives superior sailing performance. At the same time, the forward under water part of the hull is rounded, almost like an egg, and this means soft motion in a seaway at any angle of heel. The displacement of the hull is designed to carry all modern comfort equipment and lots of personal belongings, as well as generous tank capacity.

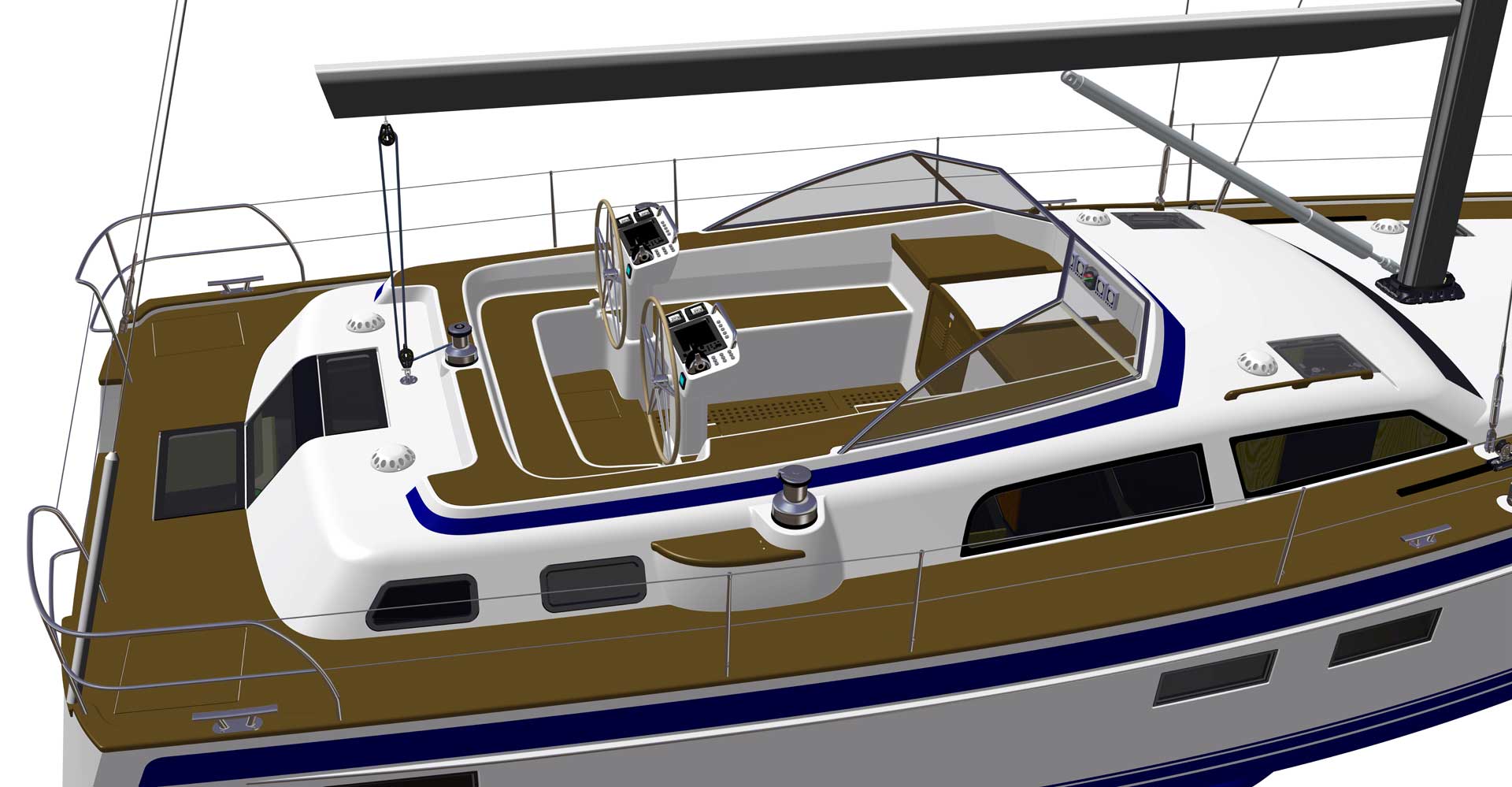

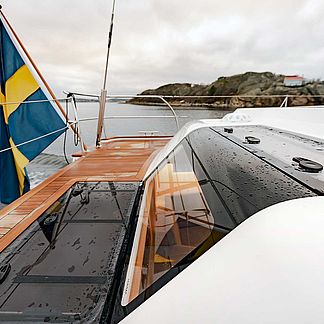

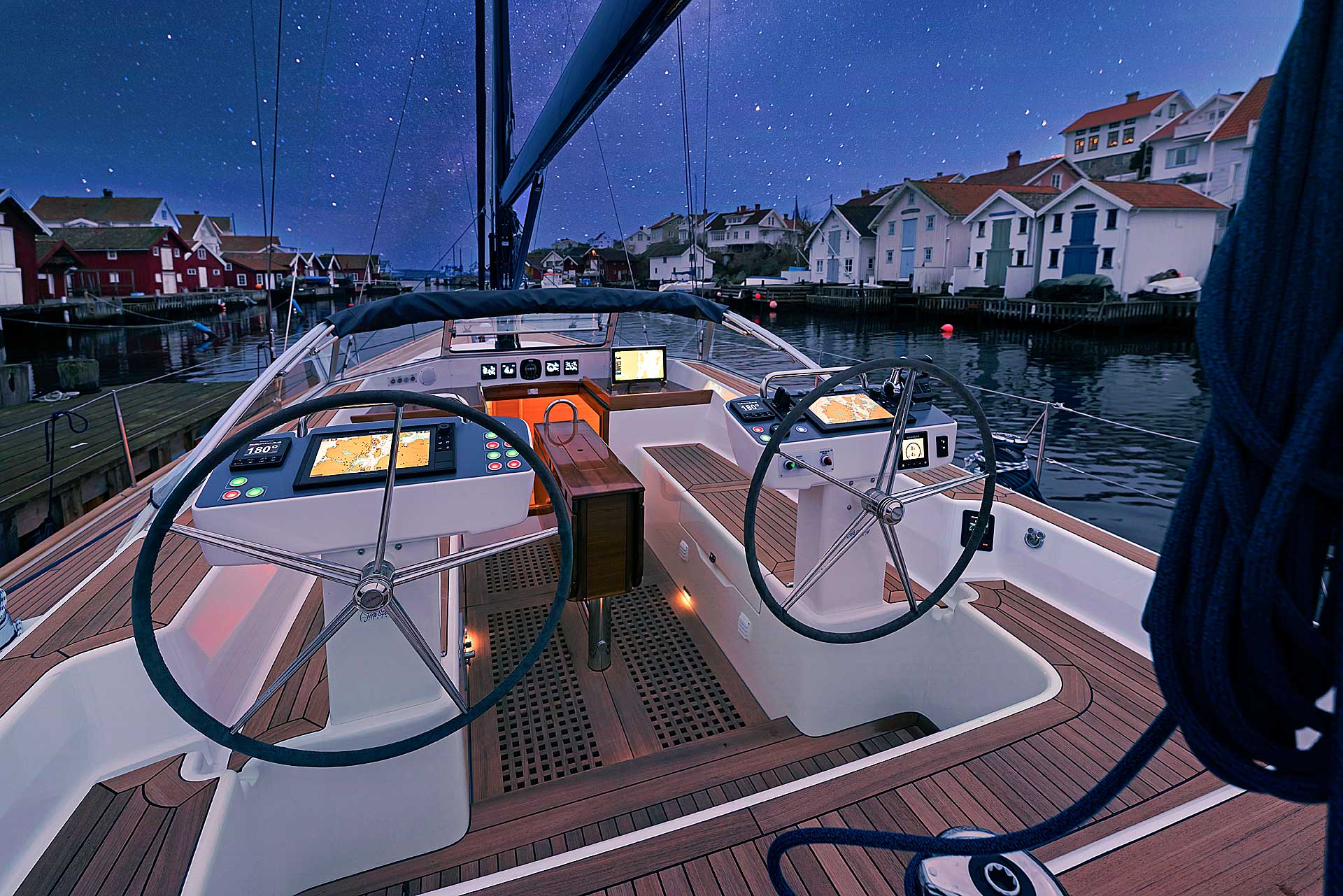

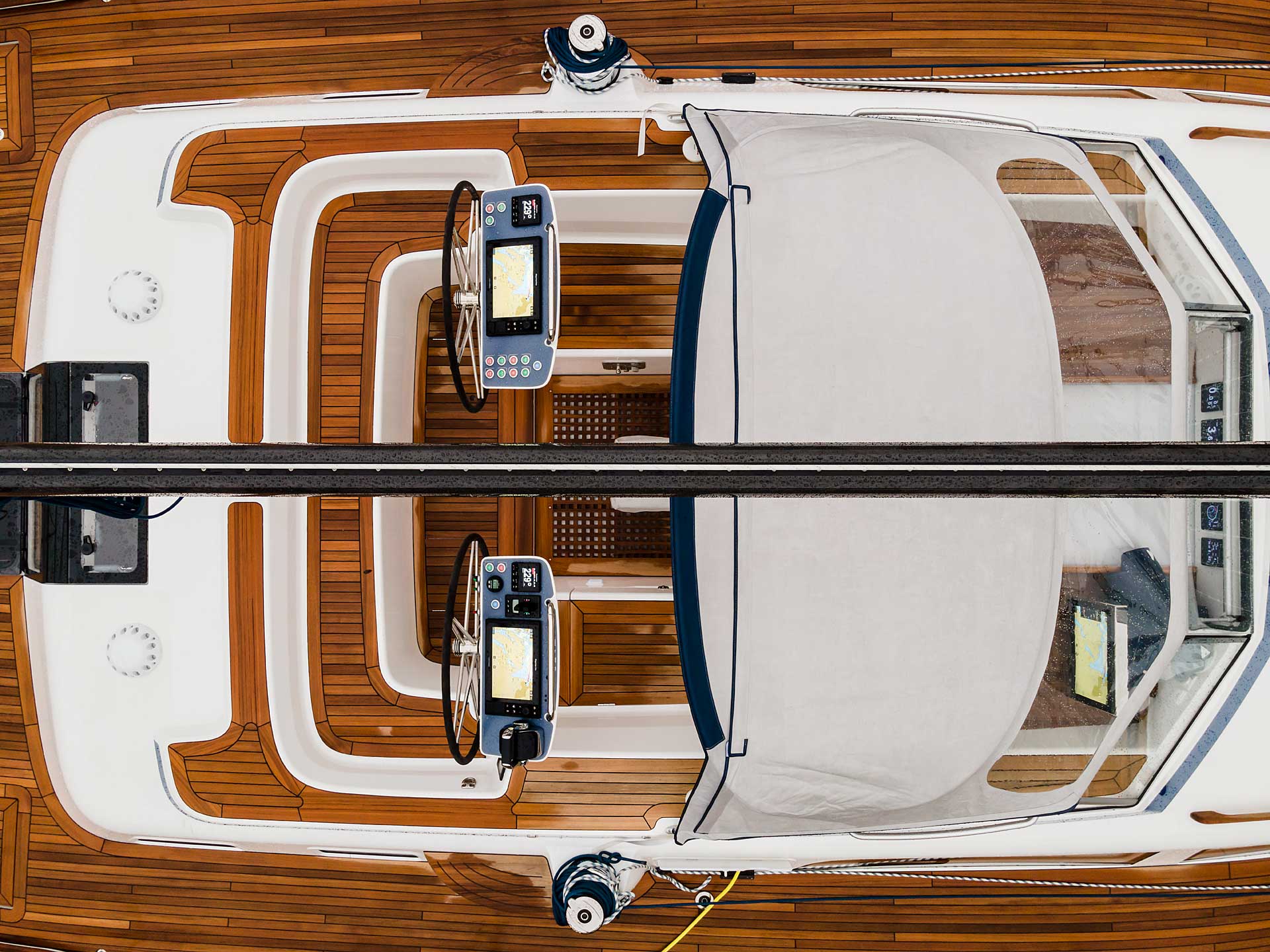

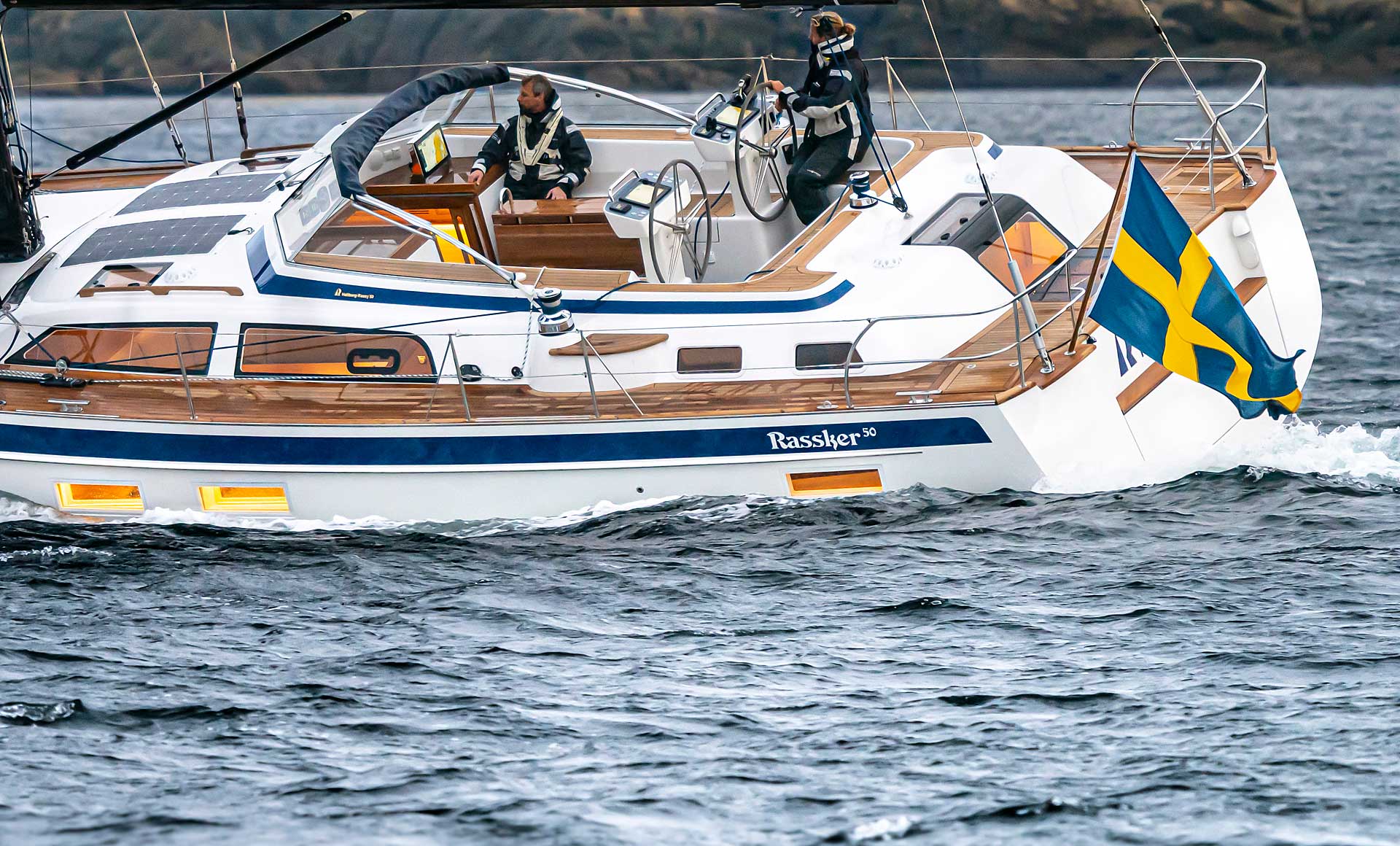

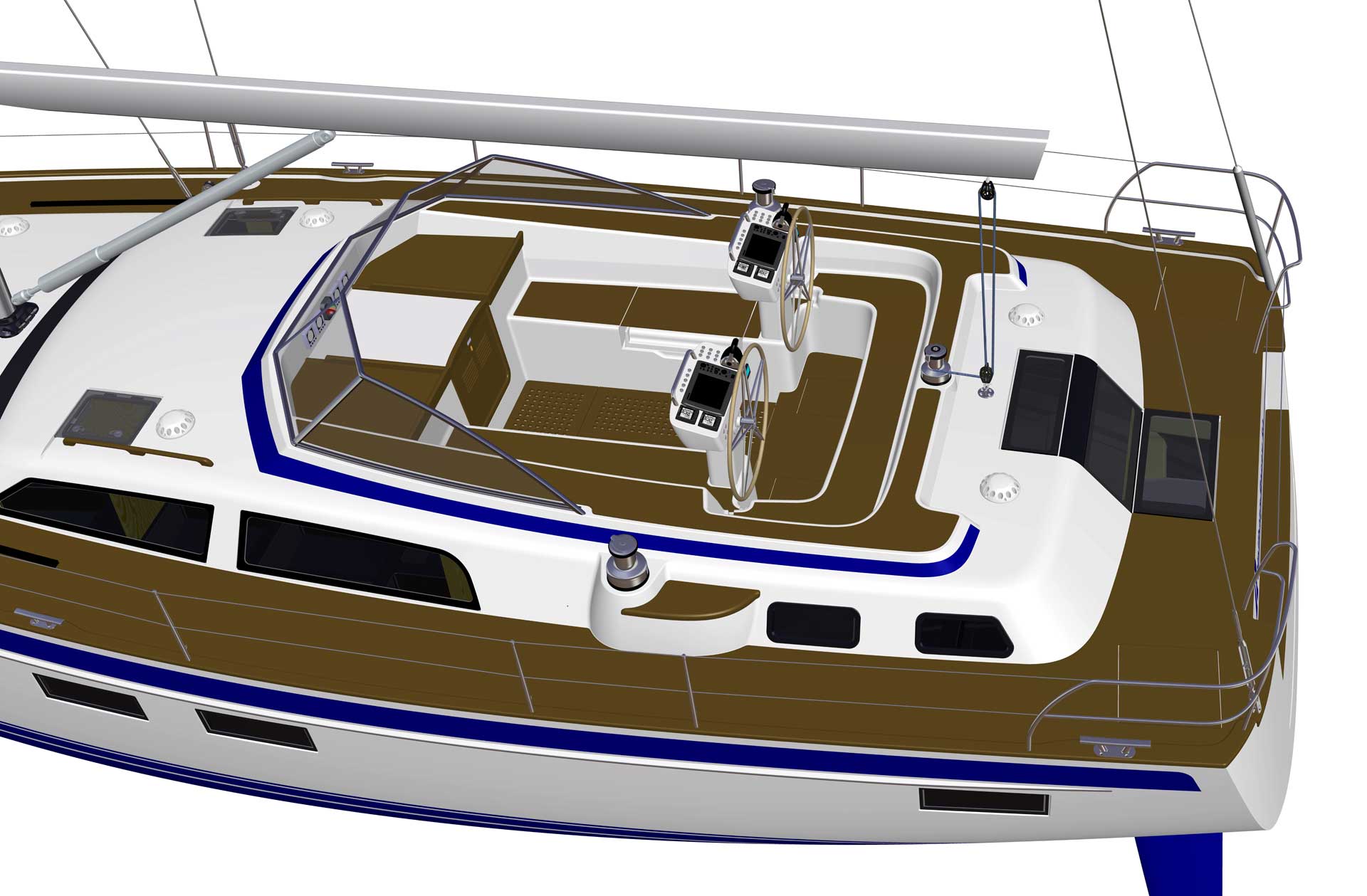

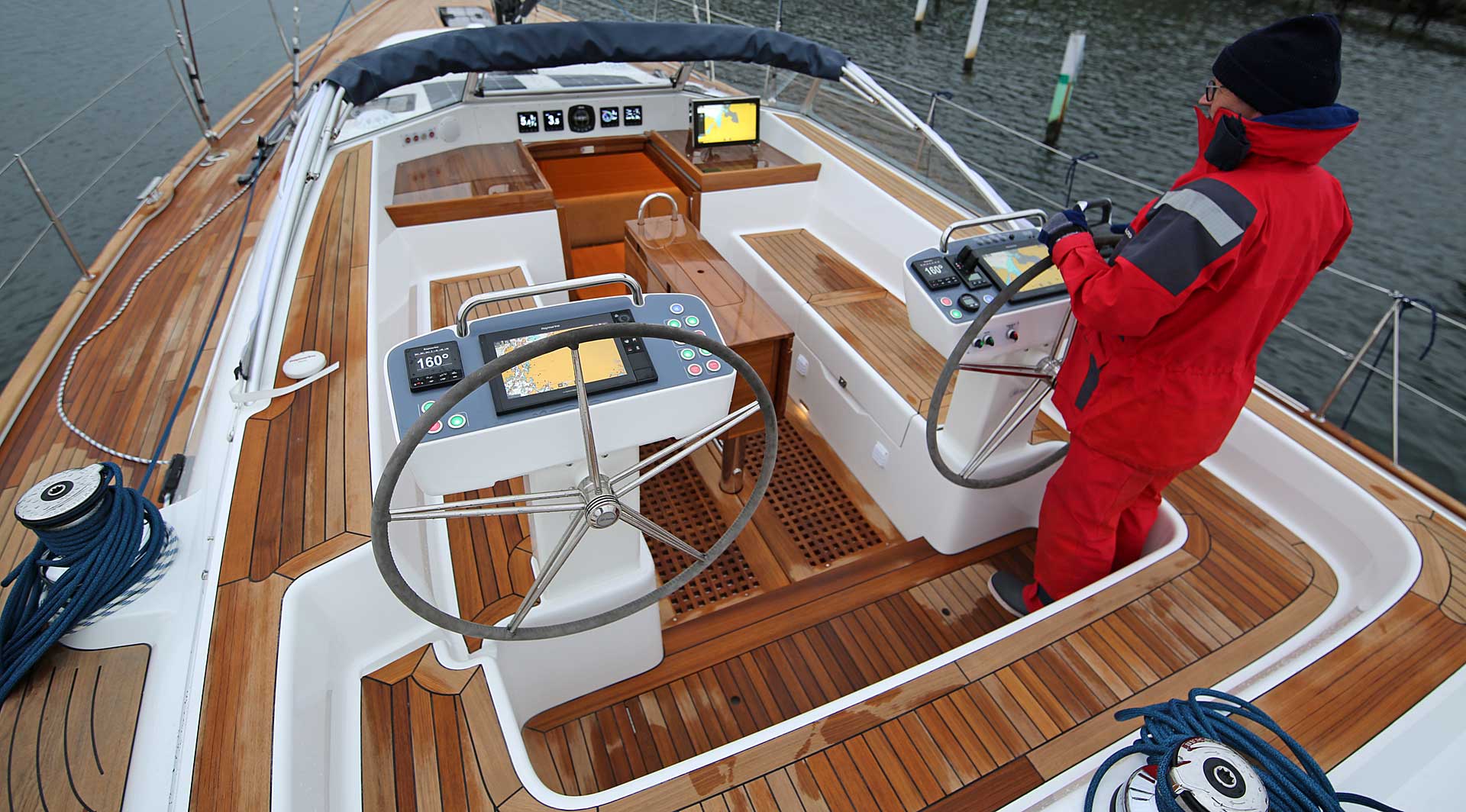

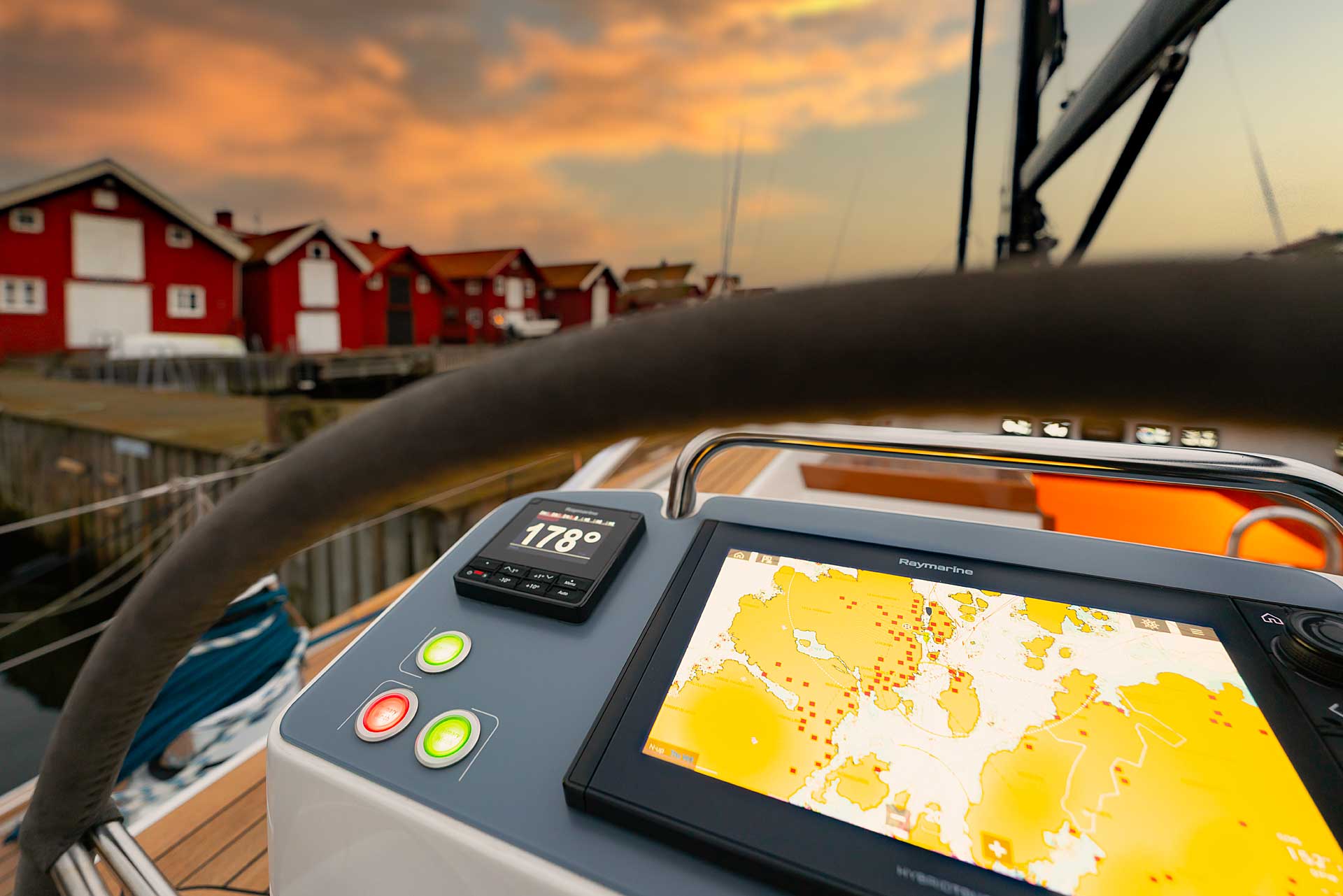

BIG AND WELL PROTECTED COCKPIT

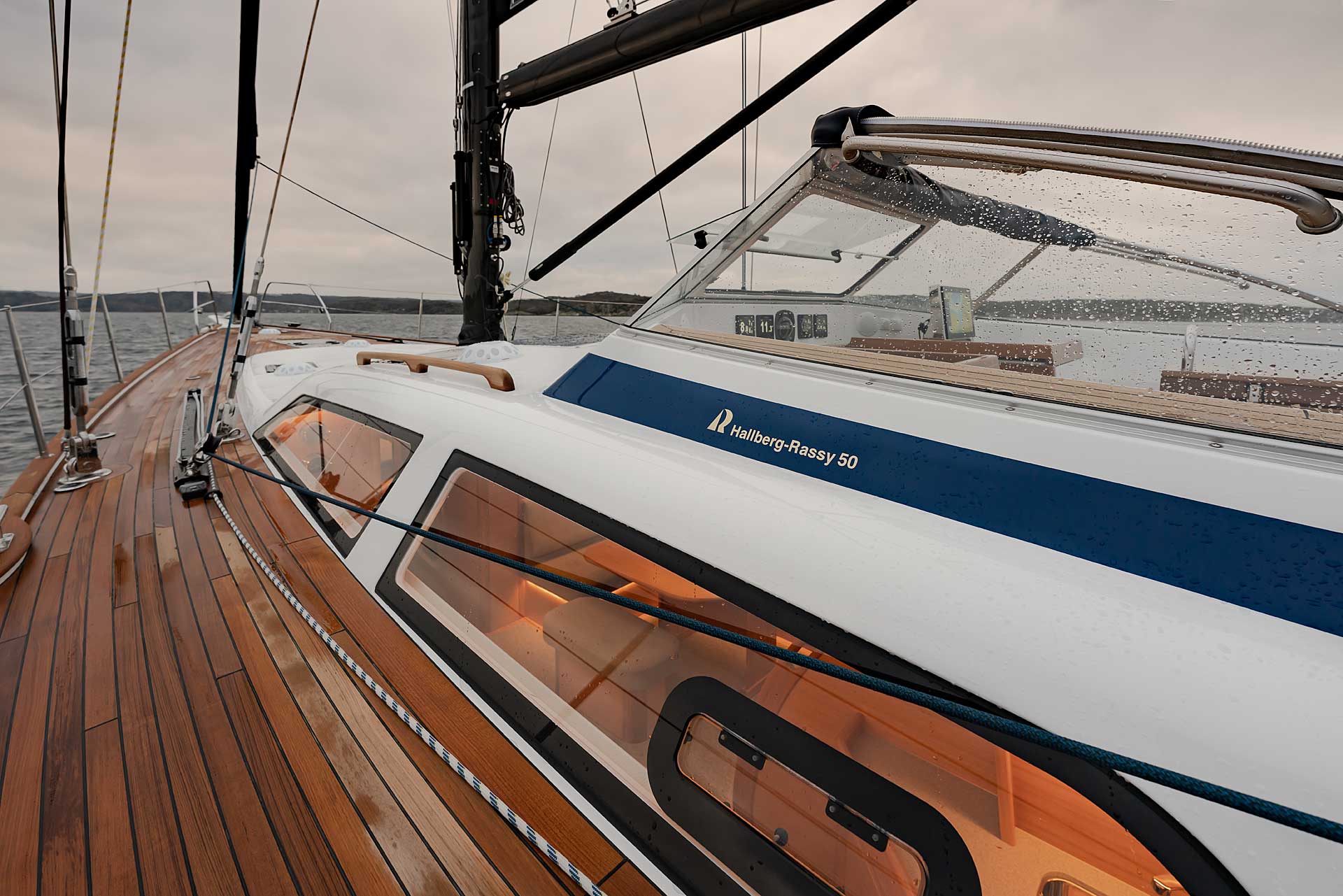

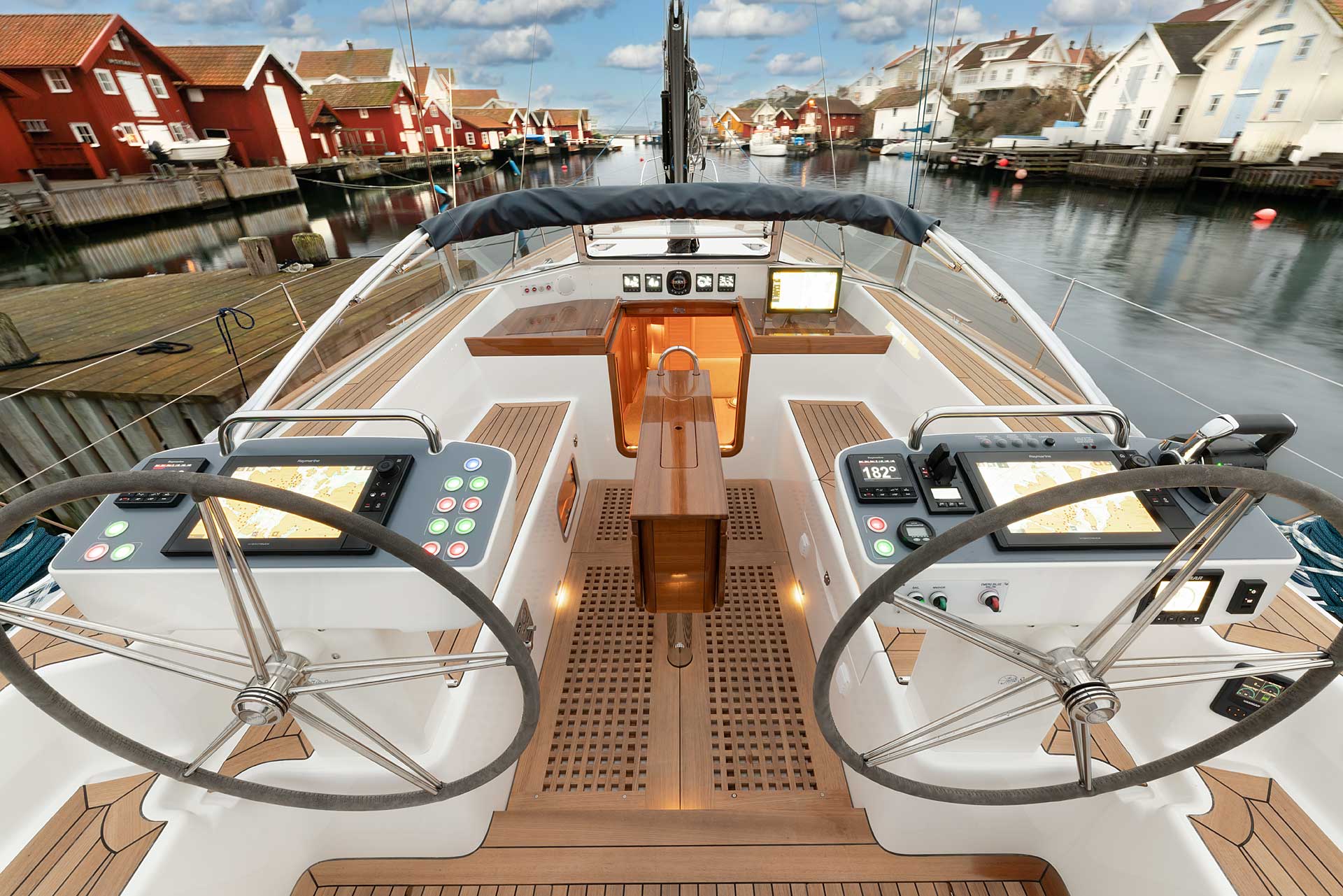

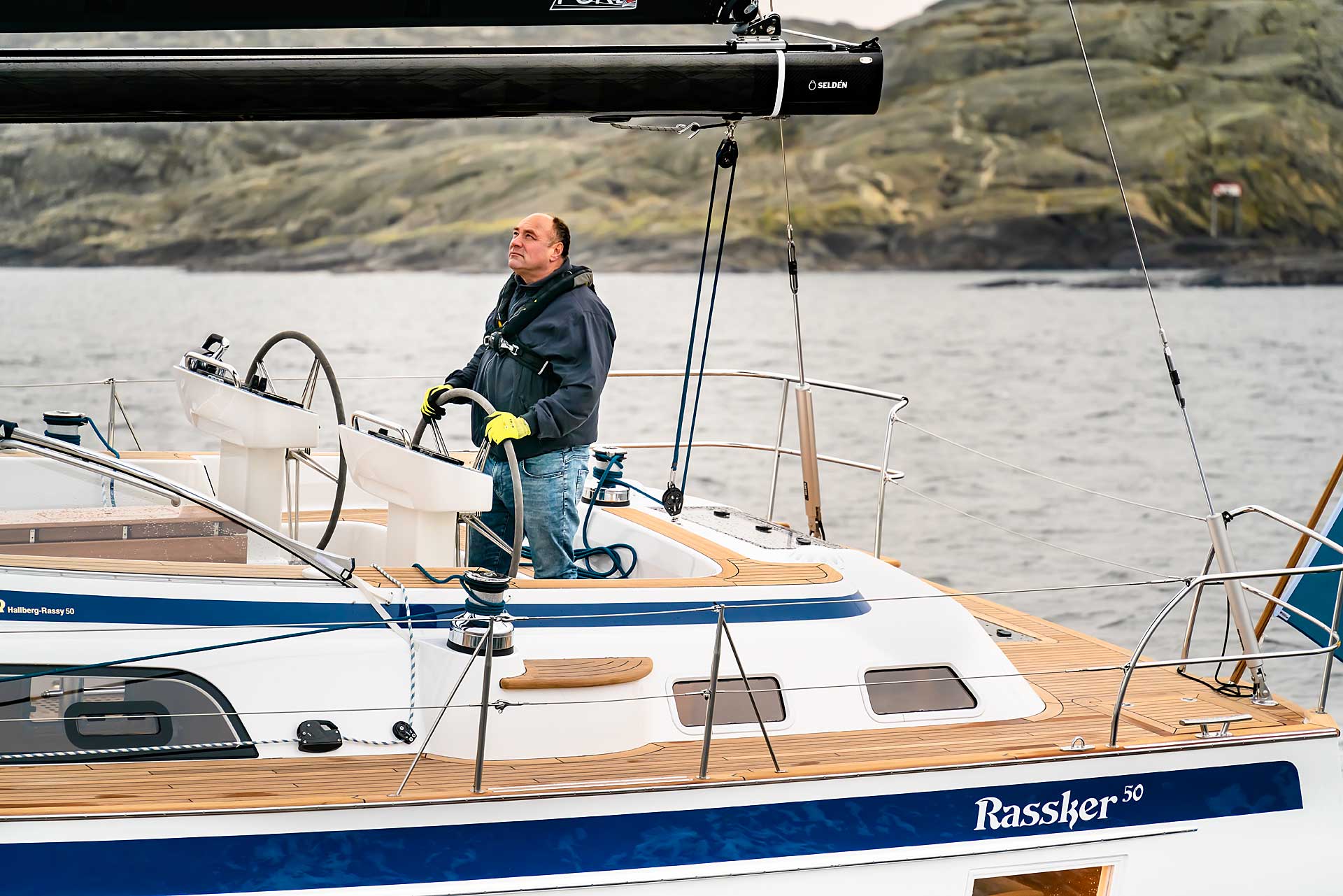

Typical Hallberg-Rassy, the cockpit is very well sheltered with high all-round coamings and a soft top or hard top windscreen with tempered glass, opening mid section and handholds at the sides. This is the ideal cockpit solution for both hot and cold areas. There is good all-round visibility. With twin wheels, there is both lots of space for displays and buttons and an easy passage from the helm position and forward. Furthermore, the wheel positions give better visibility forward, both when maneuvering in a harbour and to see the tell tails of the headsail. There is an optional big fixed high gloss varnished teak table with drop leaves.

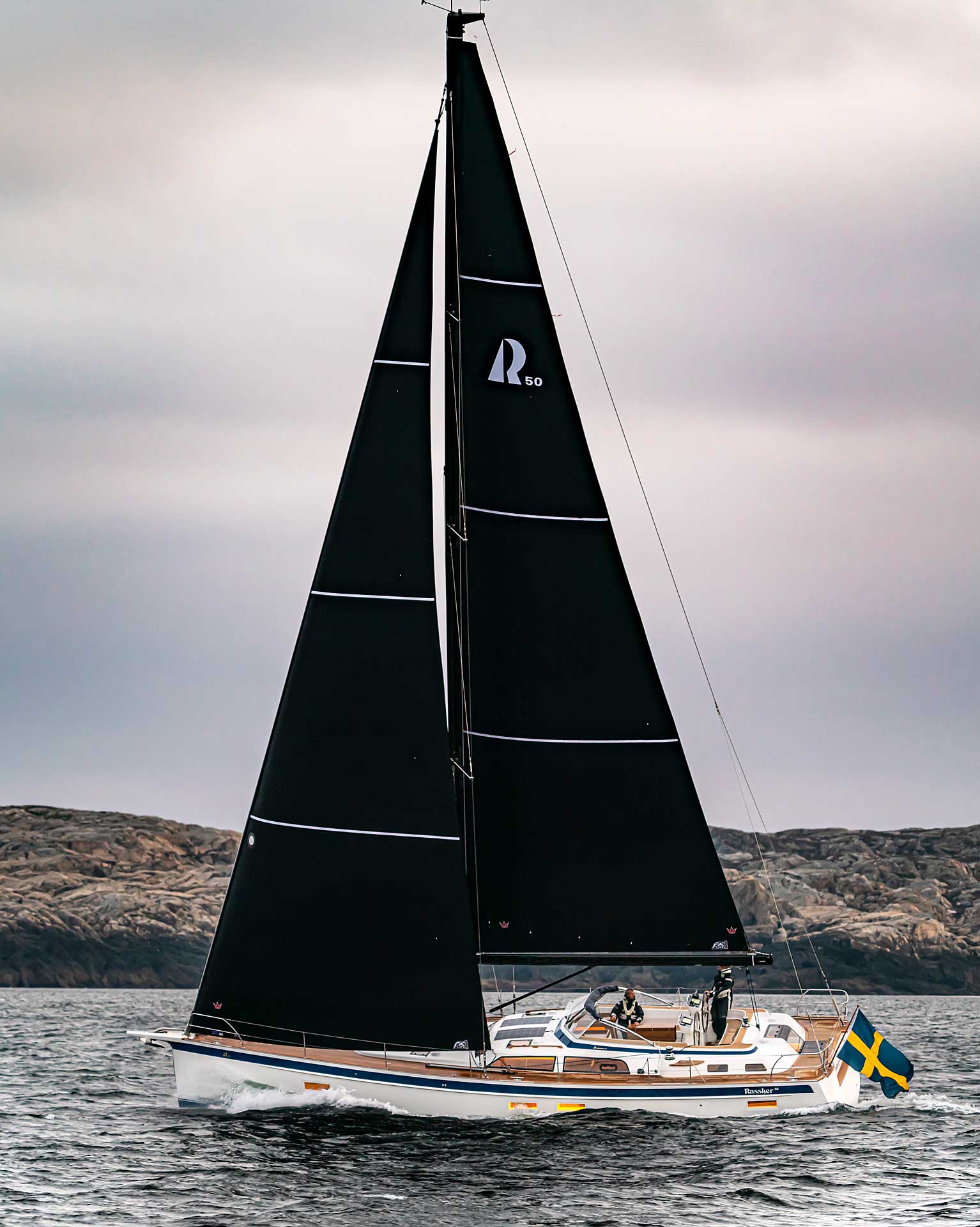

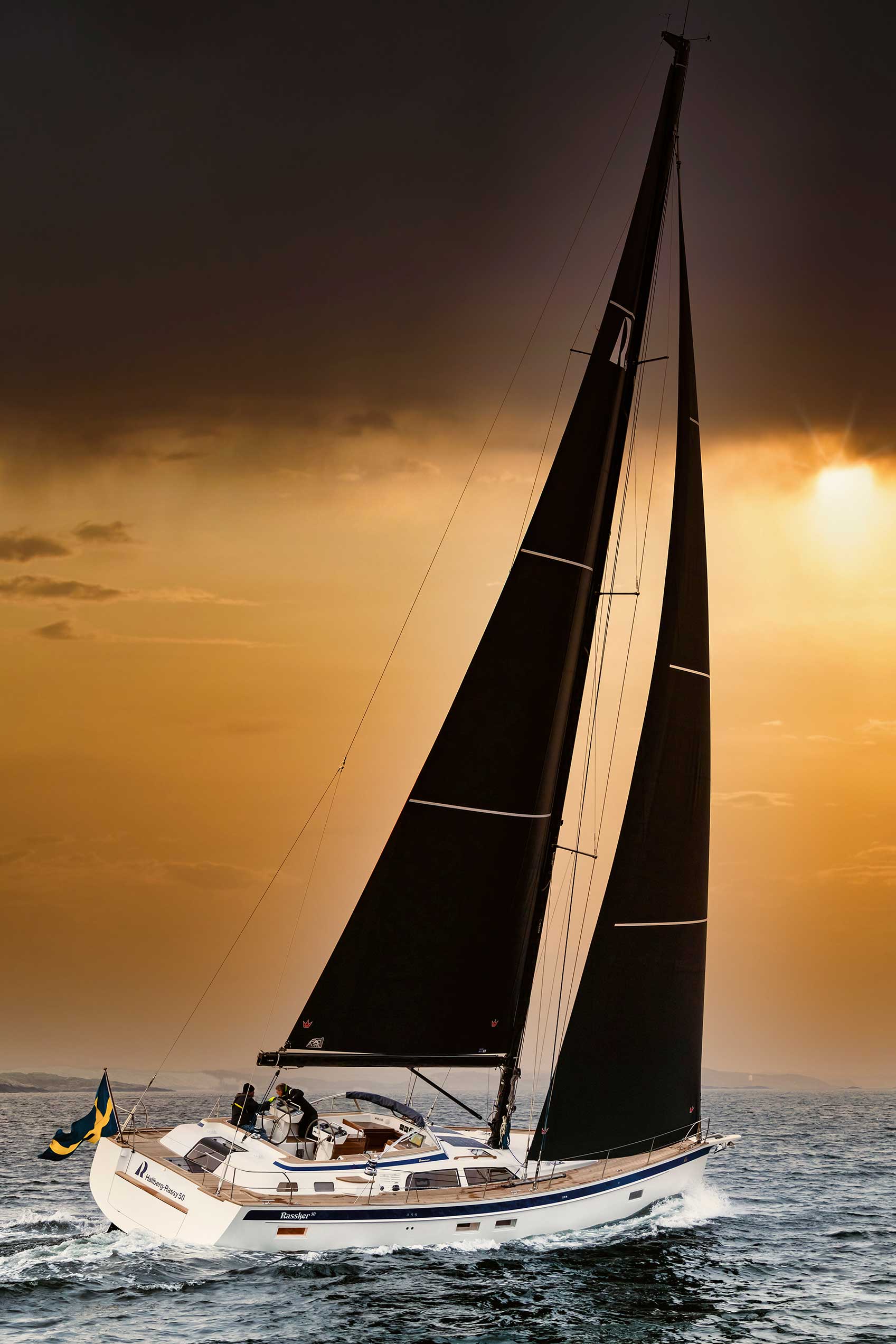

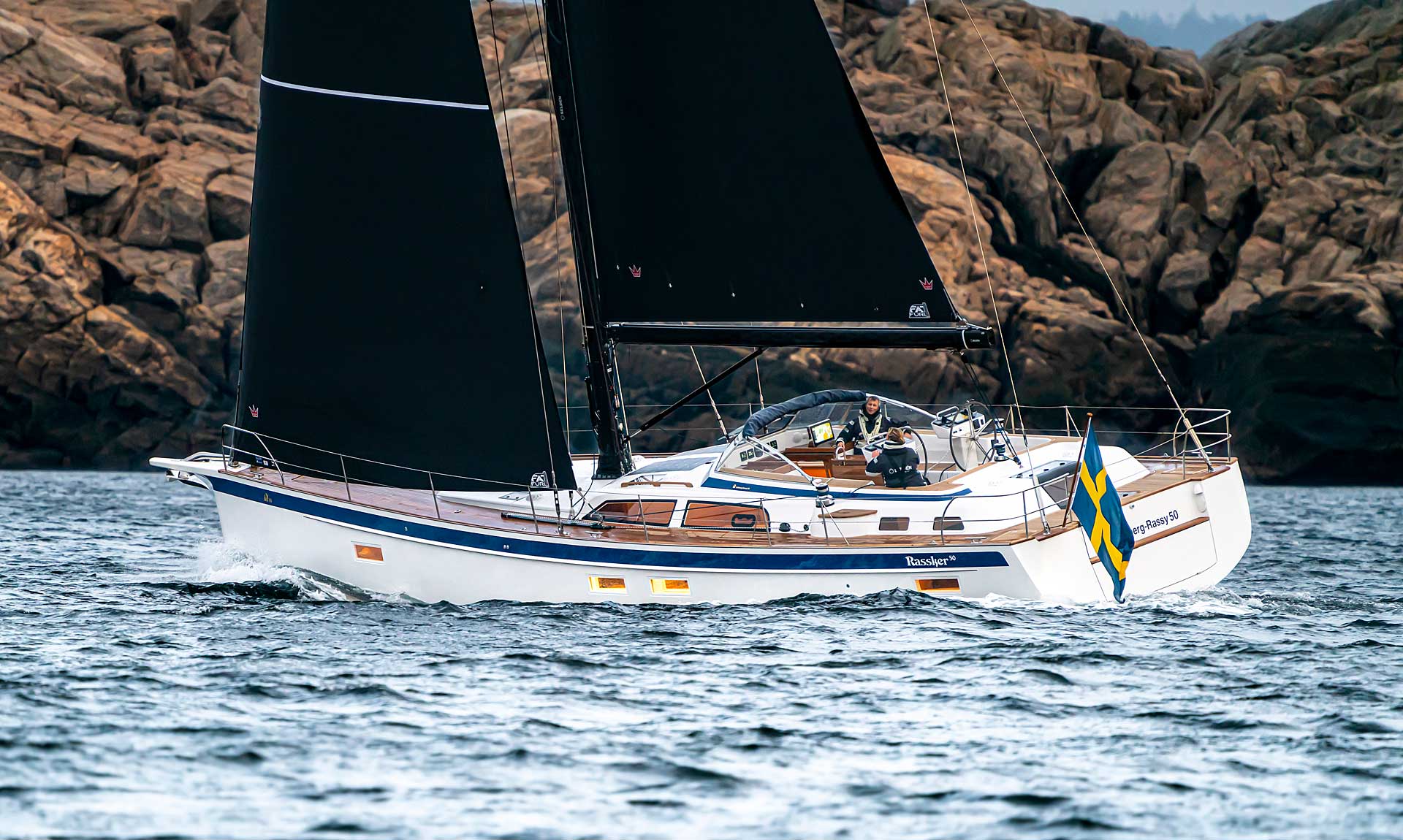

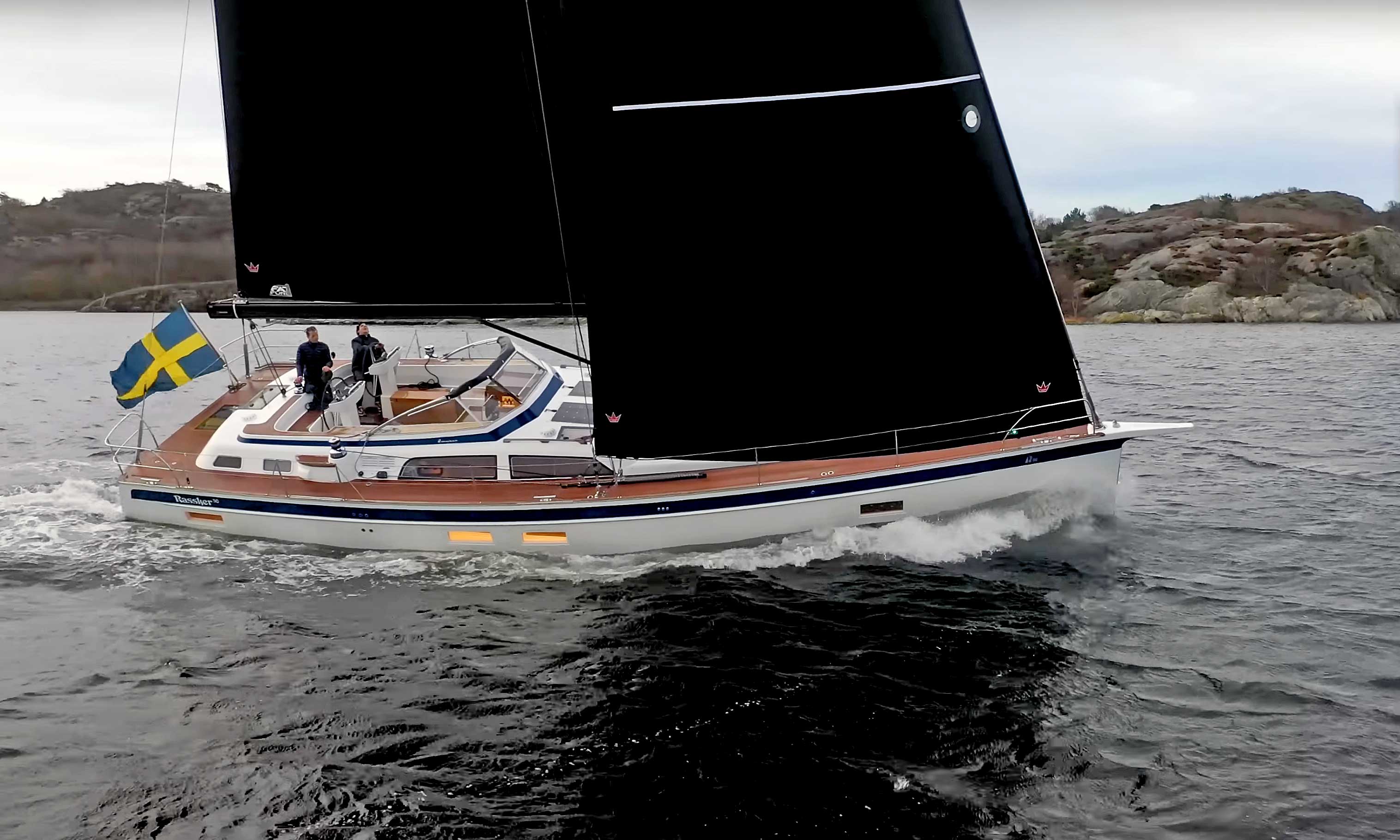

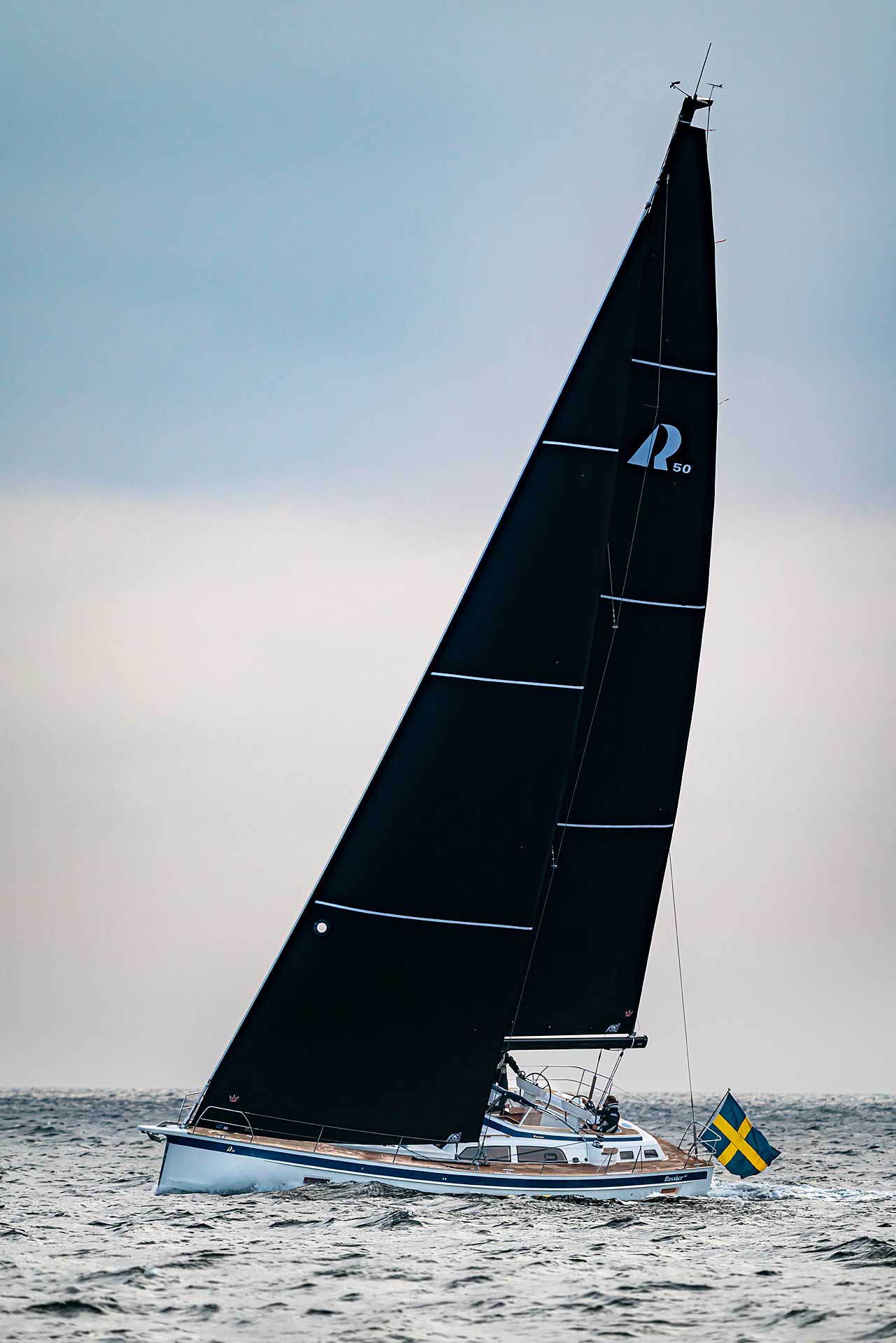

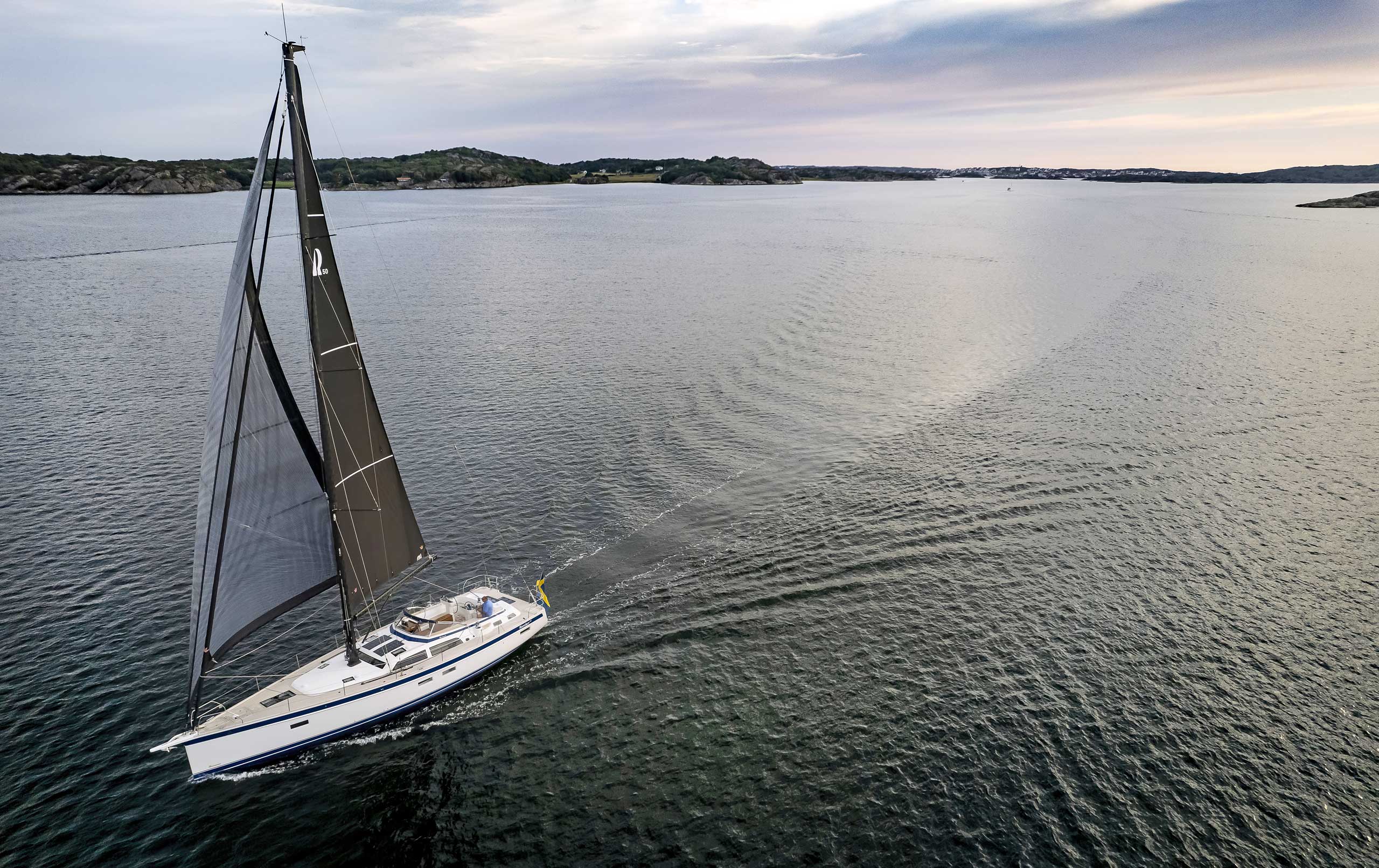

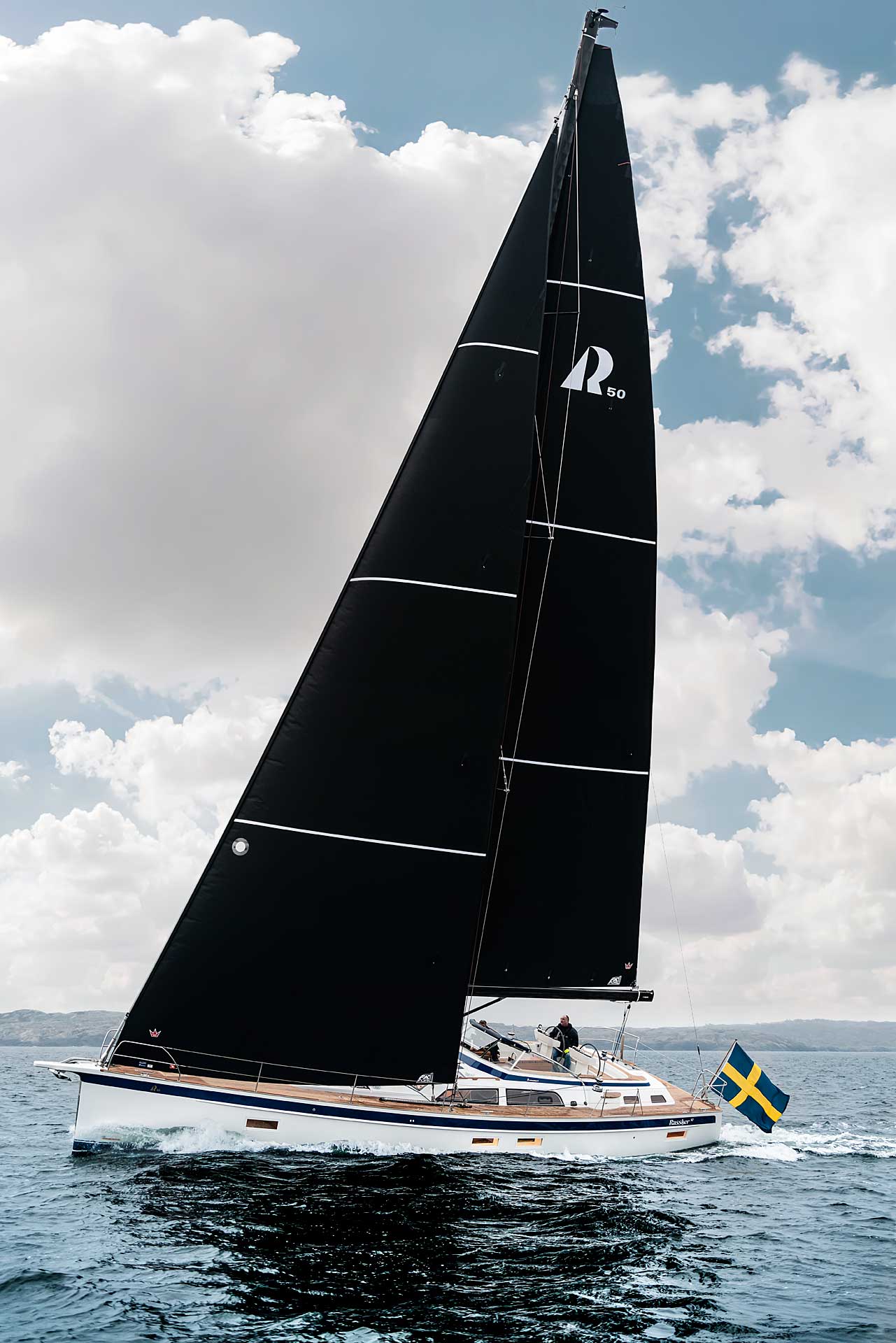

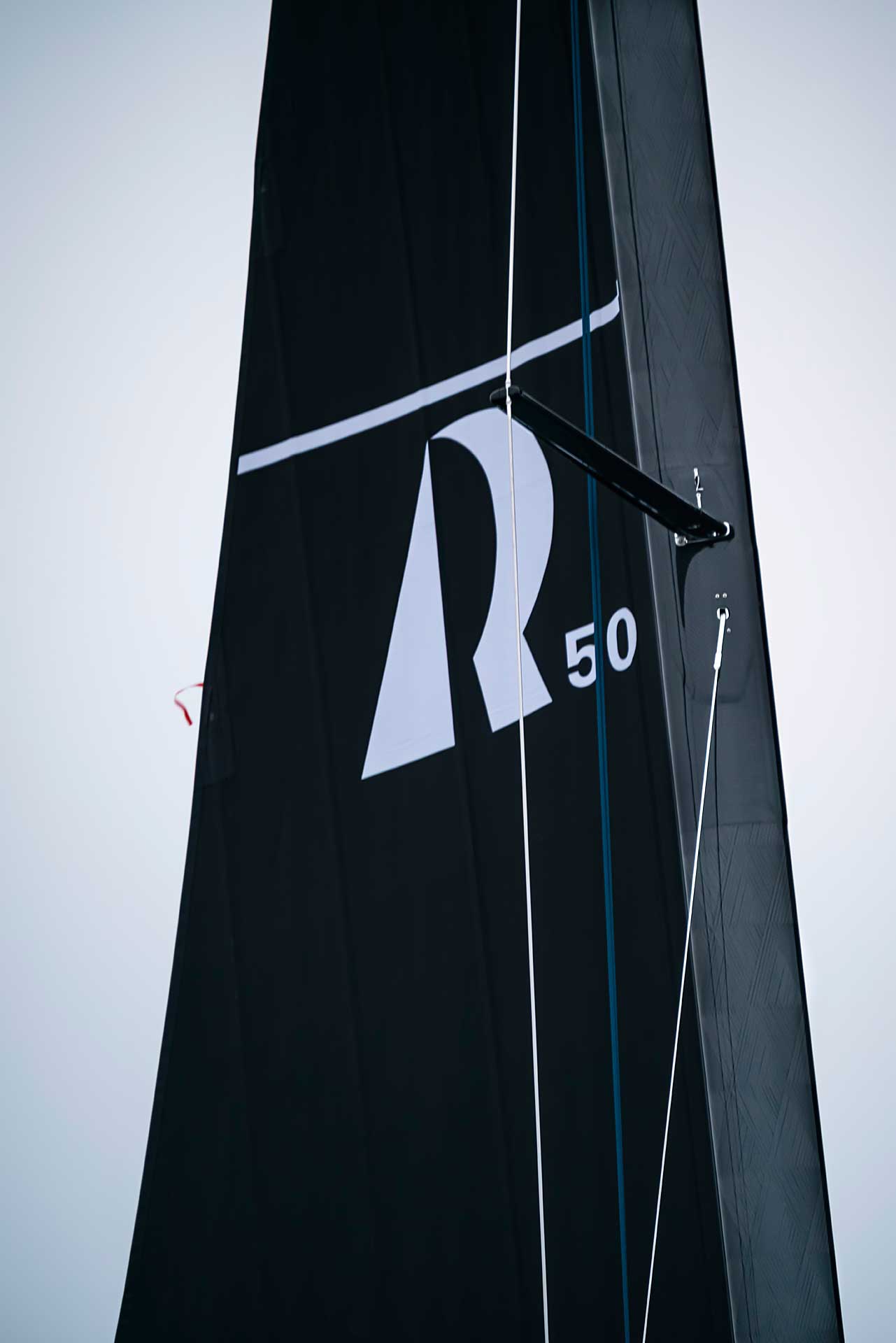

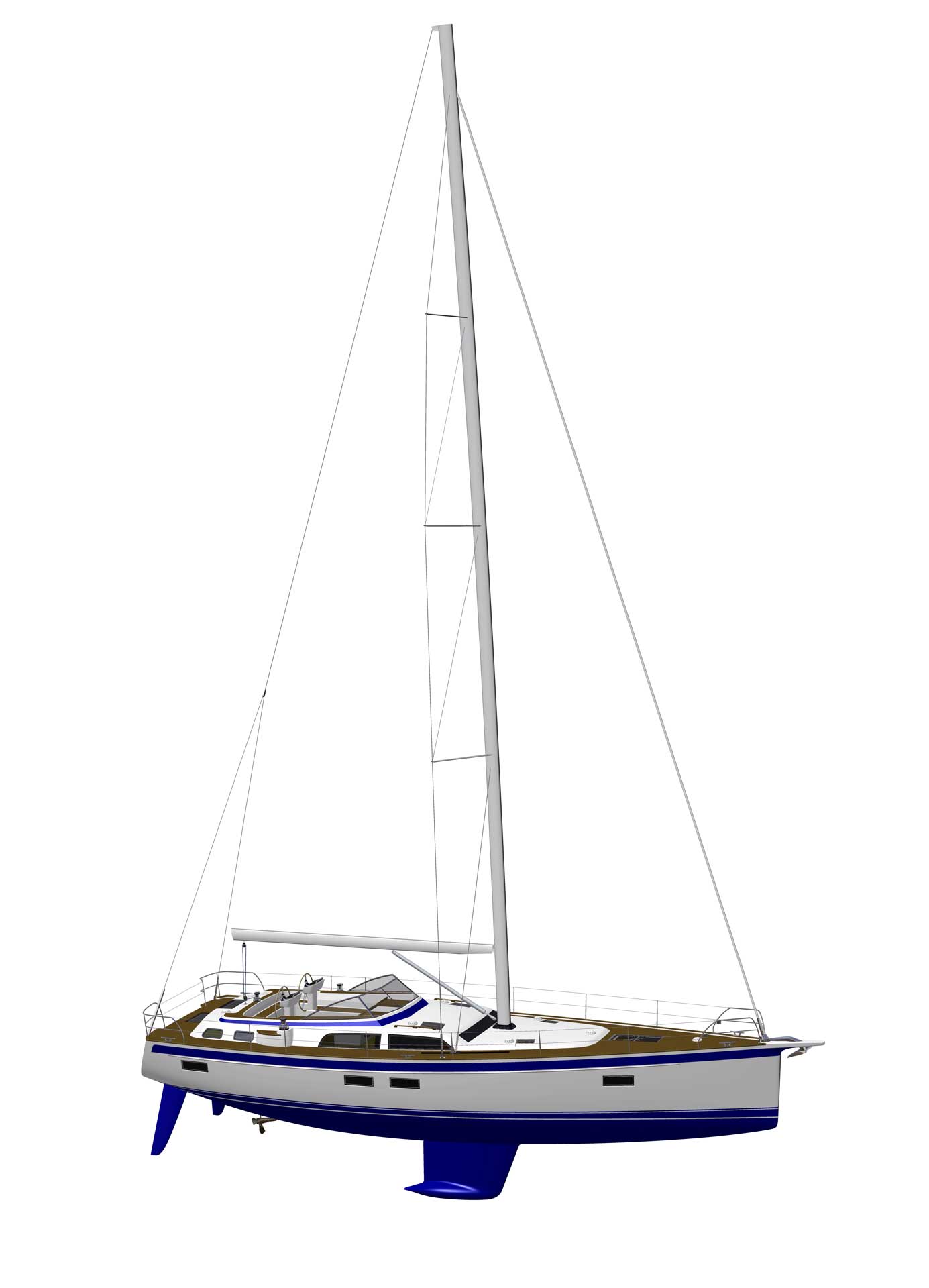

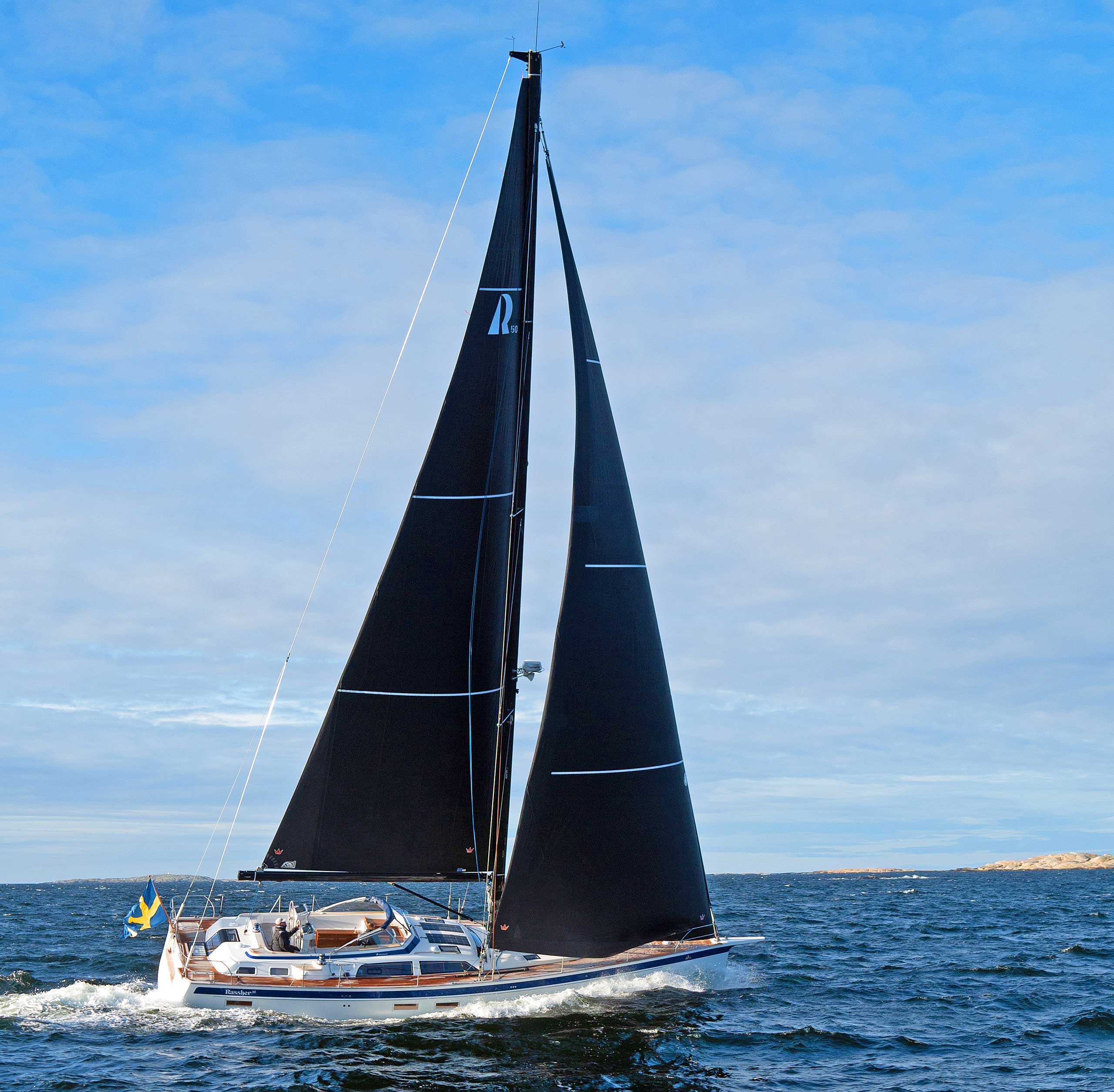

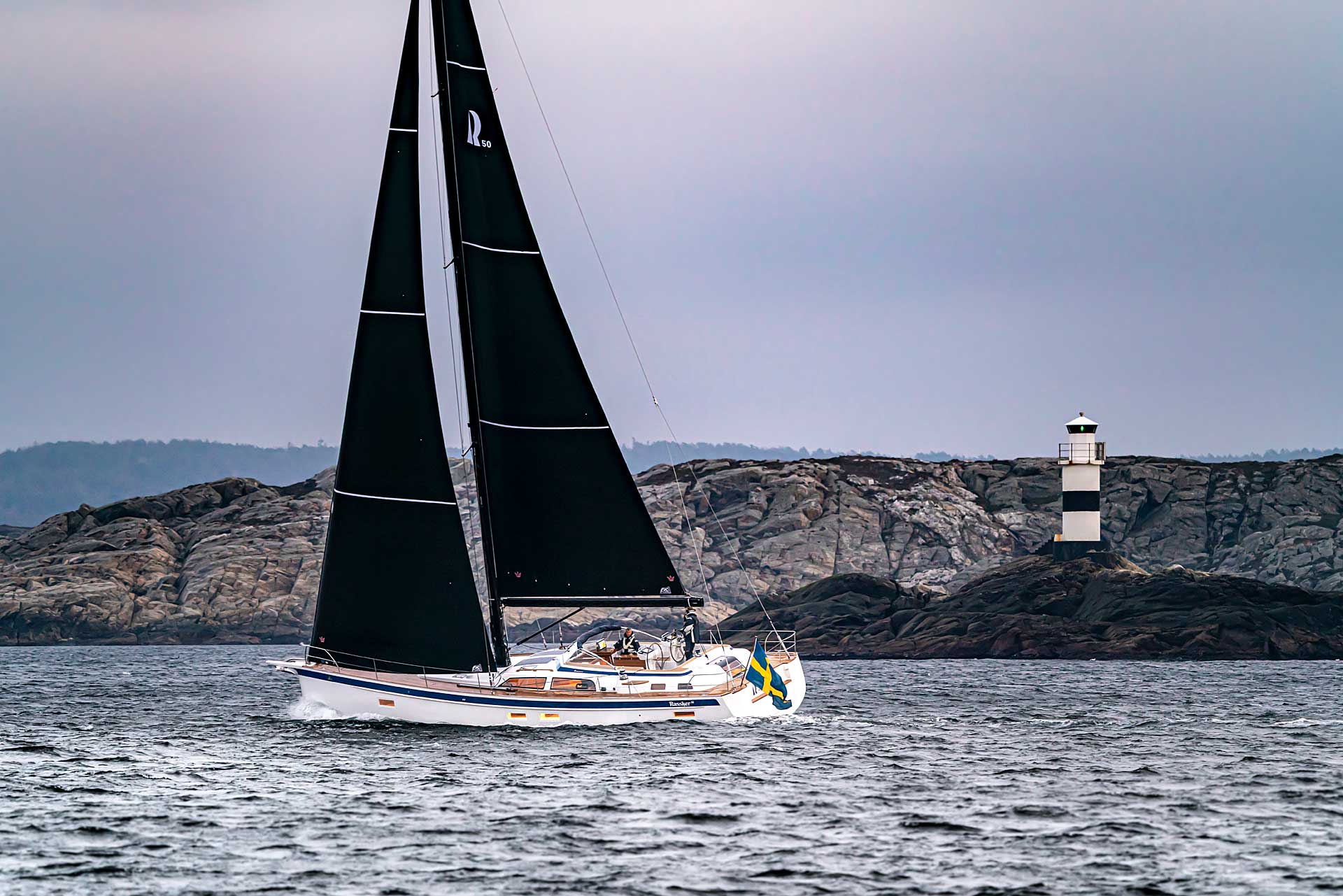

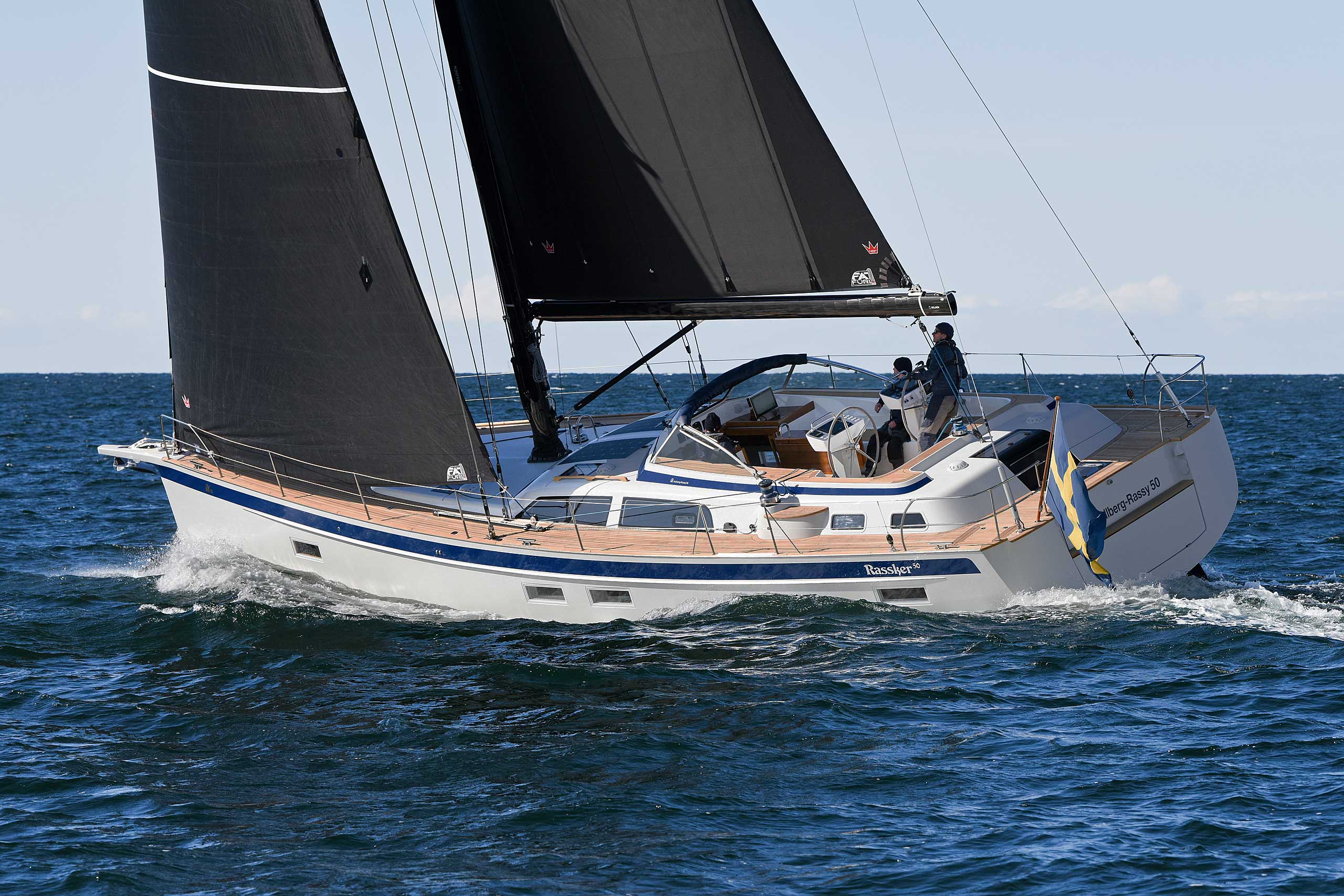

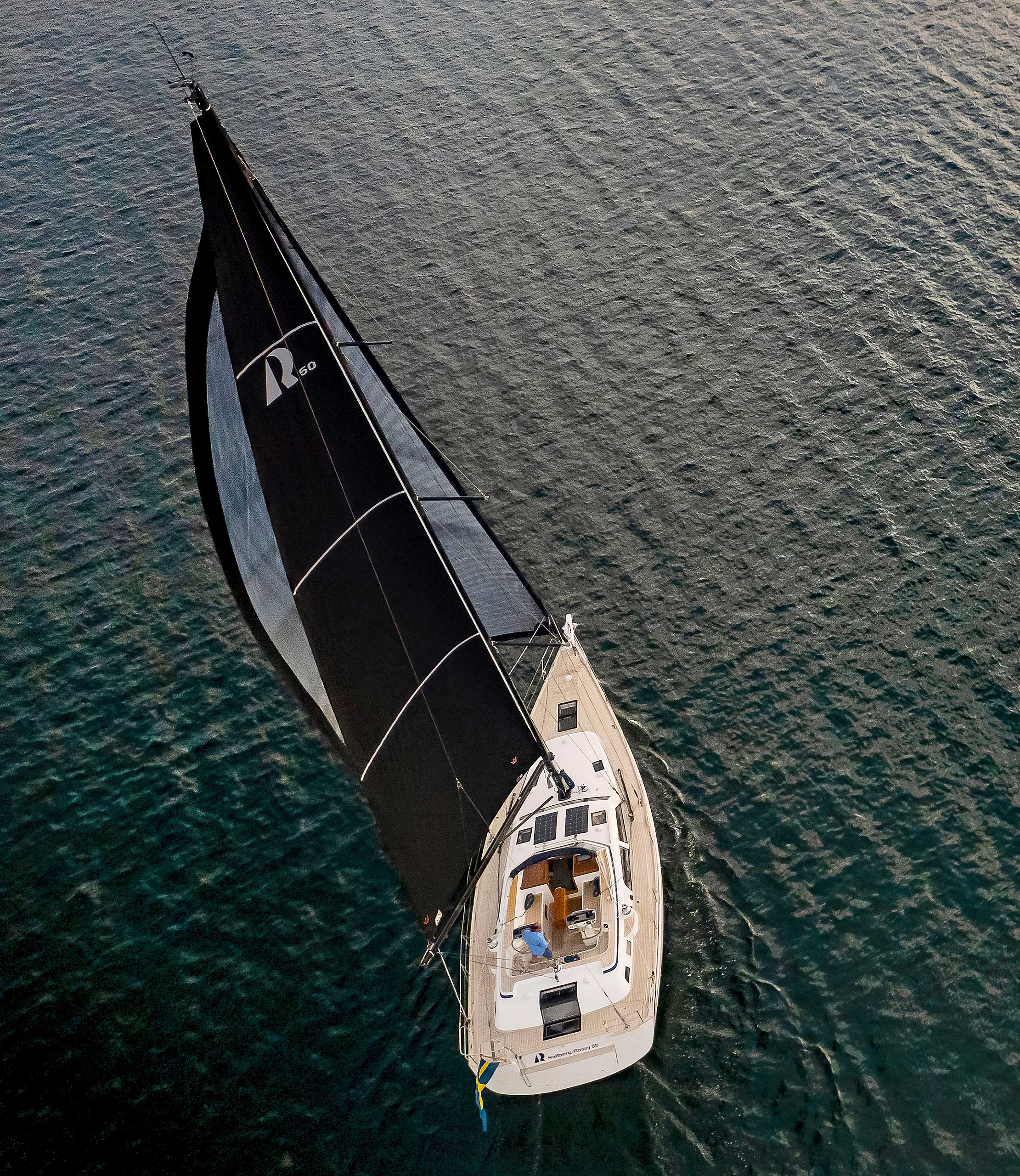

MODERN AND EASY TO HANDLE SAIL PLAN

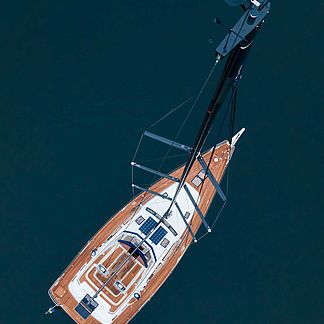

The rig is modern and easy to handle. It is even possible to fly an inner removable heavy weather sail with no runners. The foresail is only slightly overlapping, making tacking easy. There is also an option for a self tacking jib arrangement. Seldén electric furling for both in-mast and headsail, as well as electric sheet winches are fitted as standard. The main is designed to carry an Elvström FatFurl modern in-mast furling sail with Epex membrane, with roach, vertical battens and headboard. The top shrouds and lowers are to separate chain plates, a Hallberg-Rassy invention, which makes passage on deck easy, and arranges for easy sheeting of the headsail. The spreader base gets wide and stable in that way too. The deck plan is clean and uncluttered.

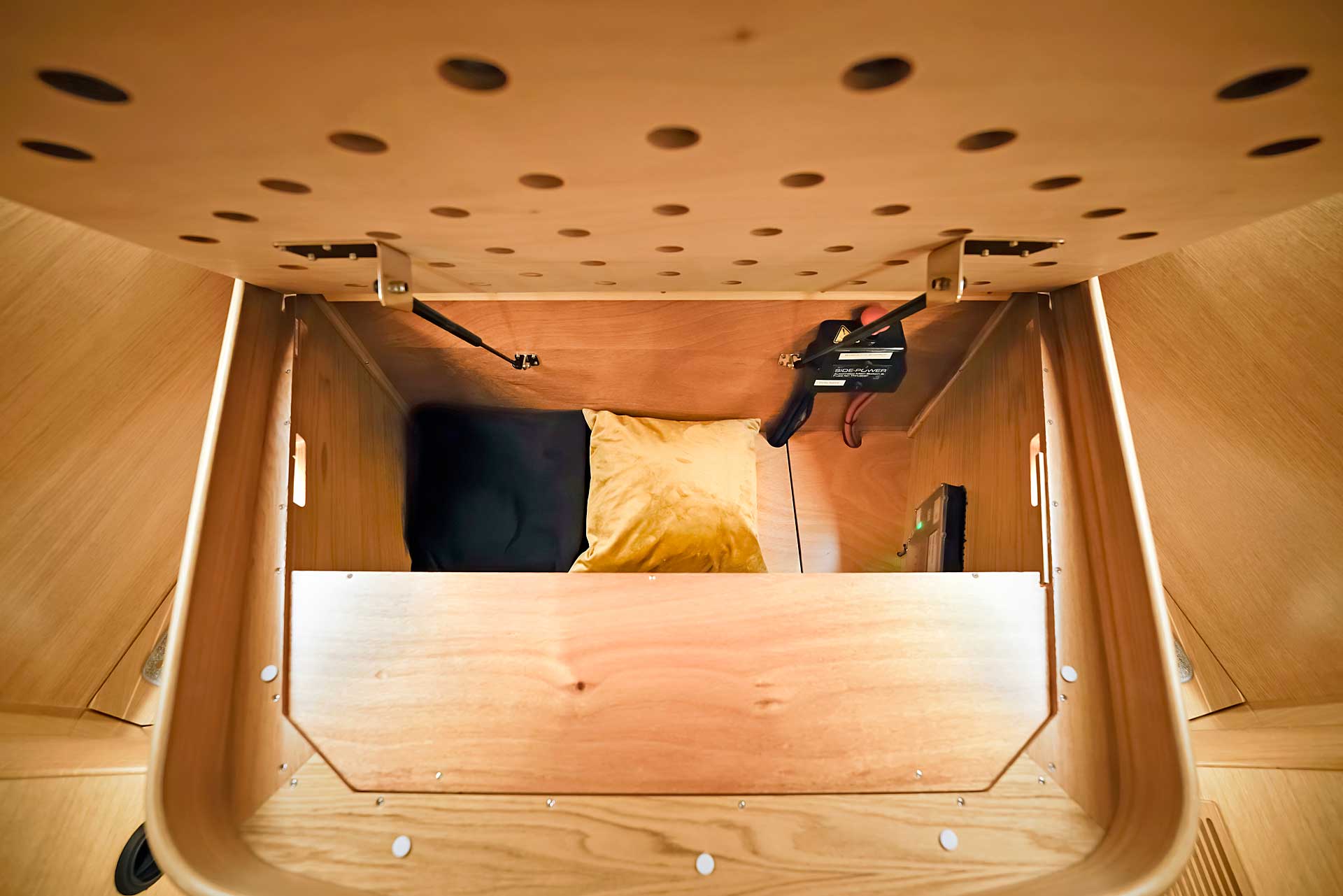

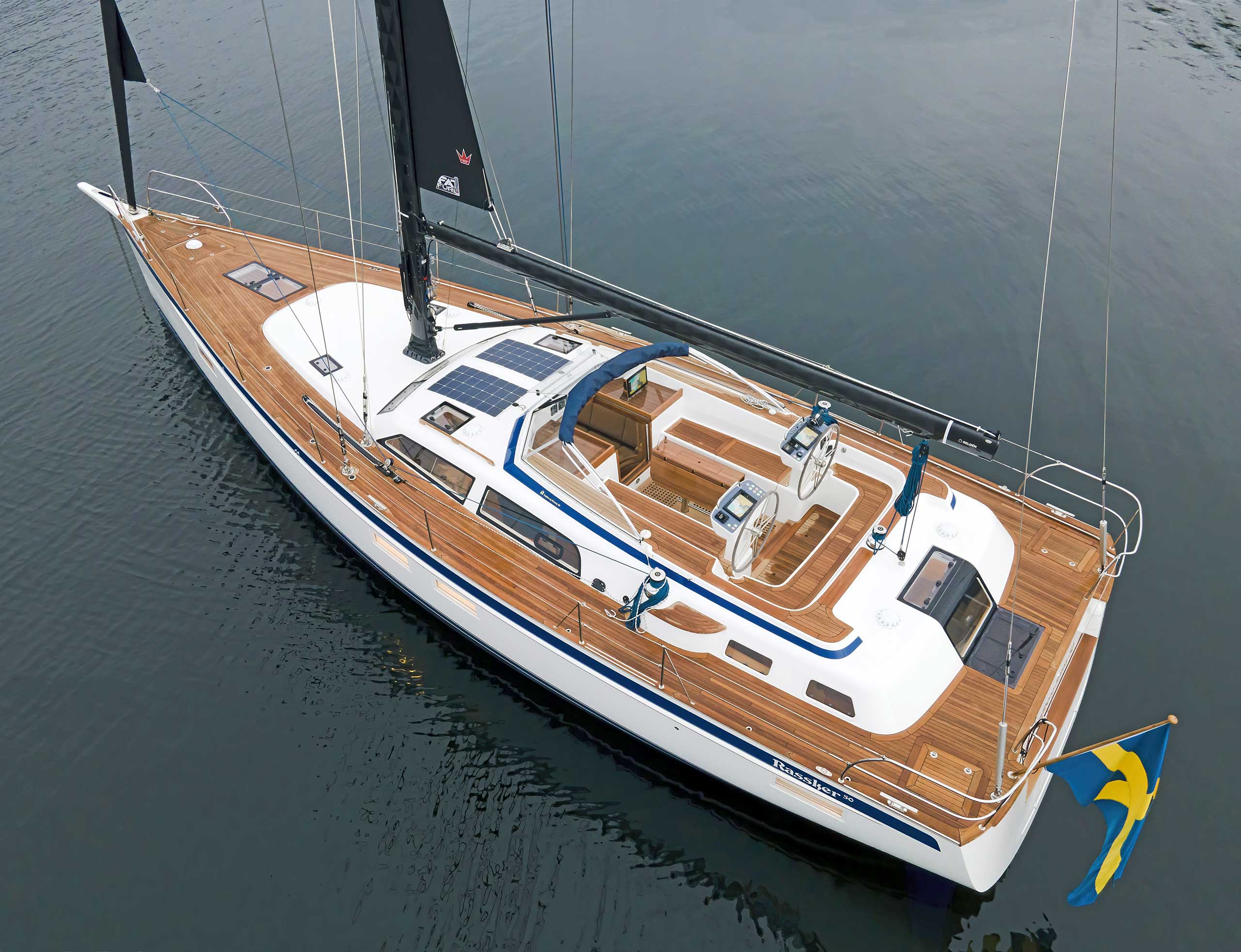

LOTS OF DECK STORAGE

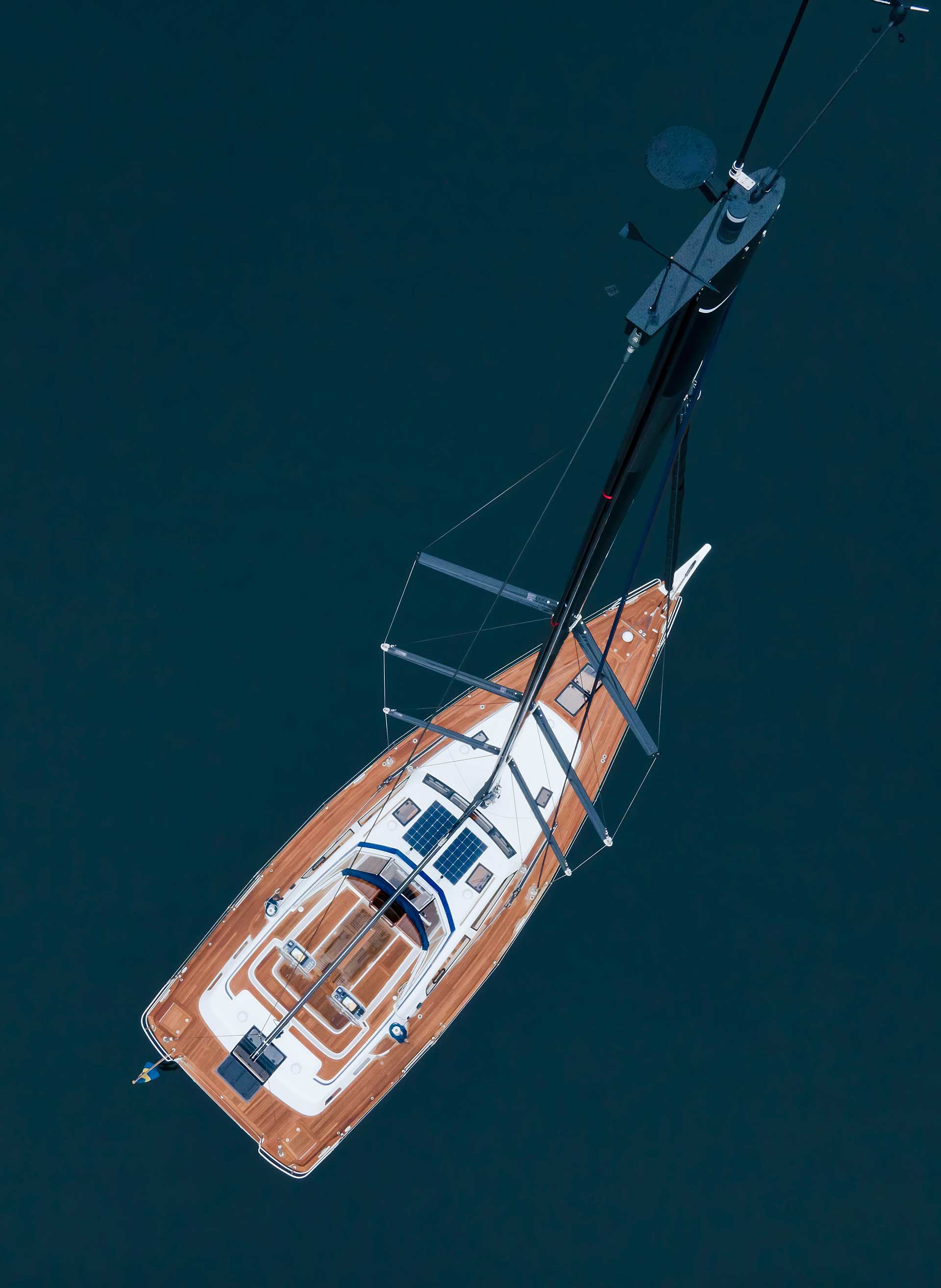

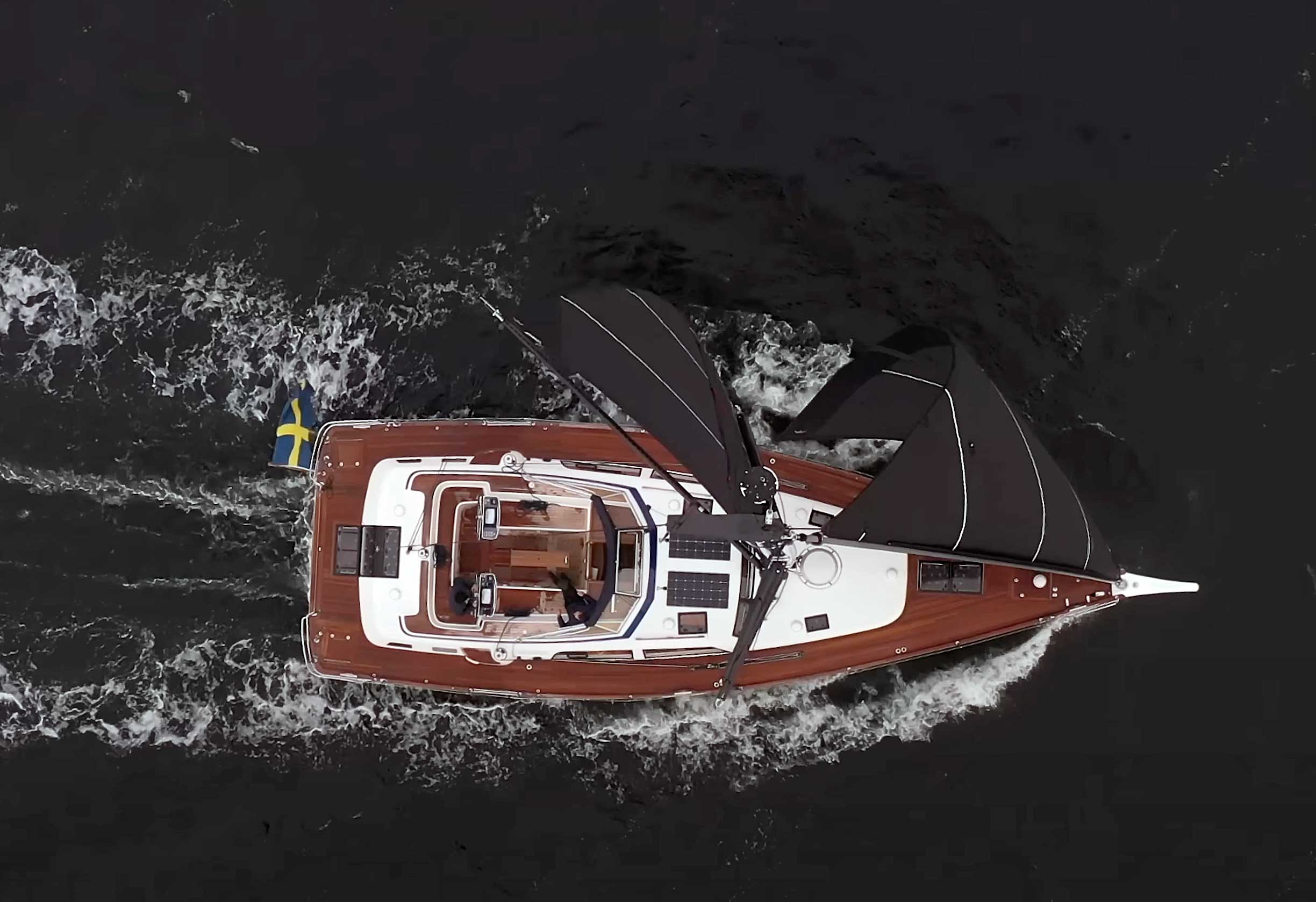

The deck storage is generous. There is not only an enormous deck locker between the forward cabin and the chain locker, there are also two top opening deck lockers aft, one locker in the cockpit and good storage for fenders and ropes also above the chain locker.

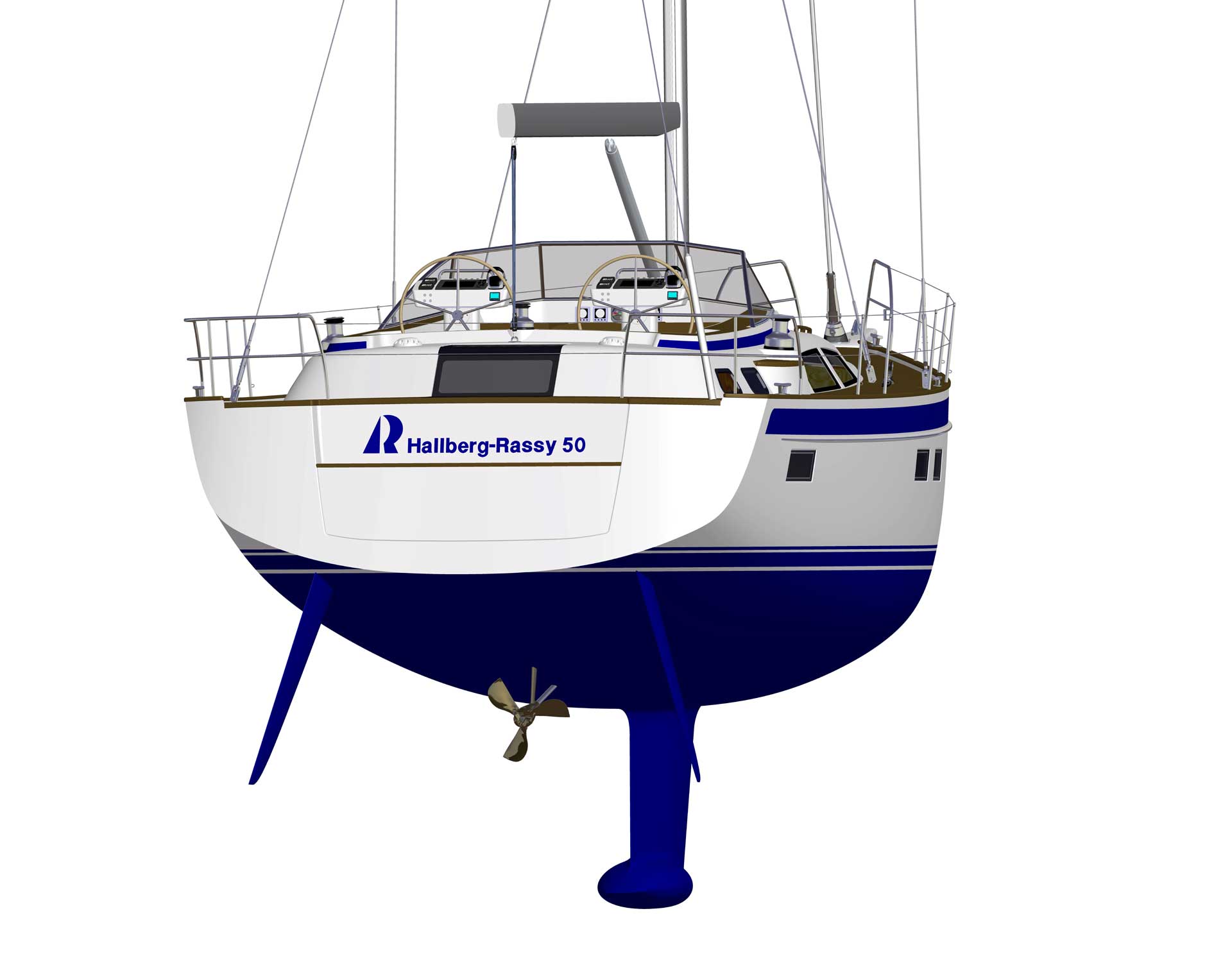

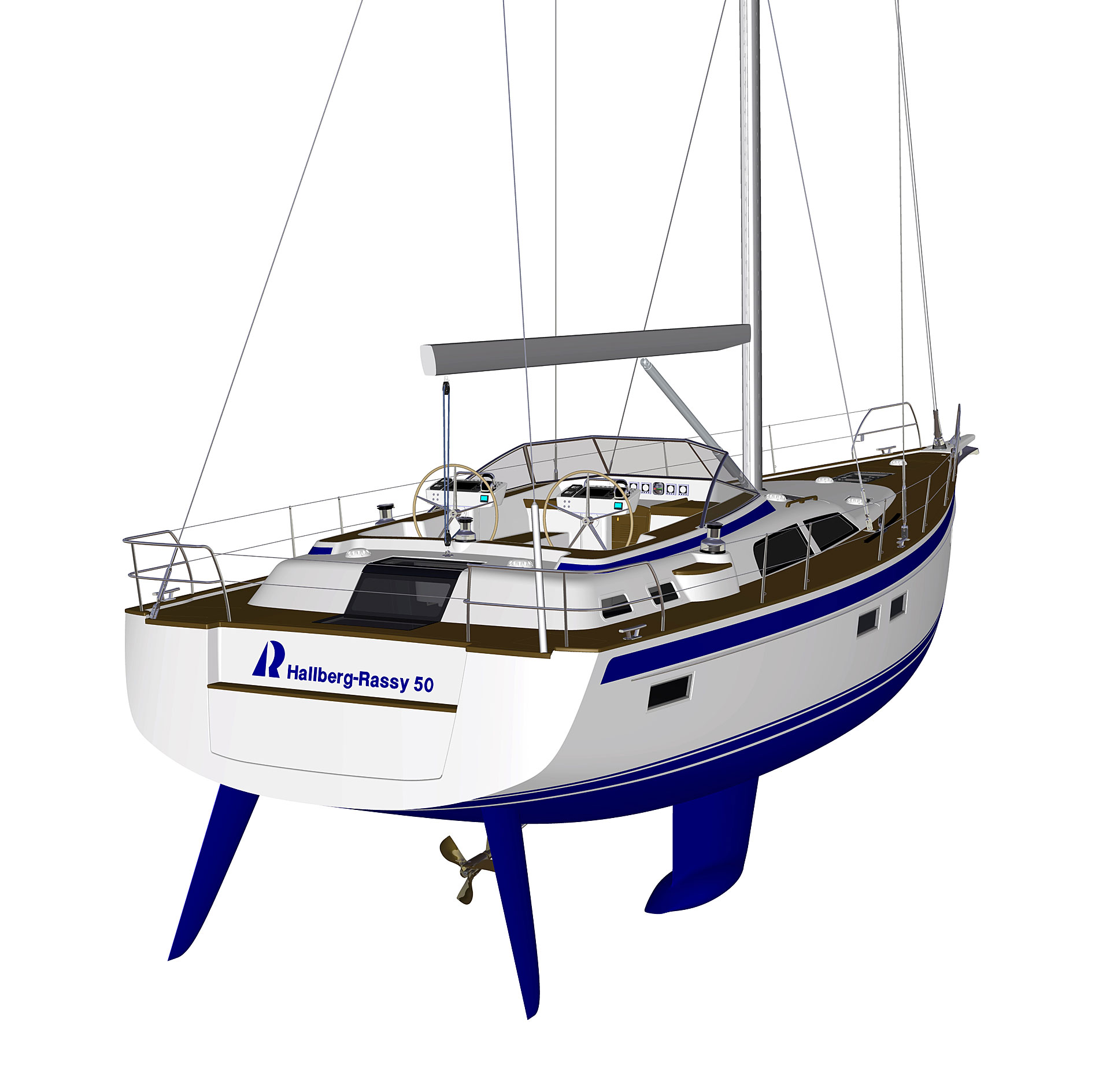

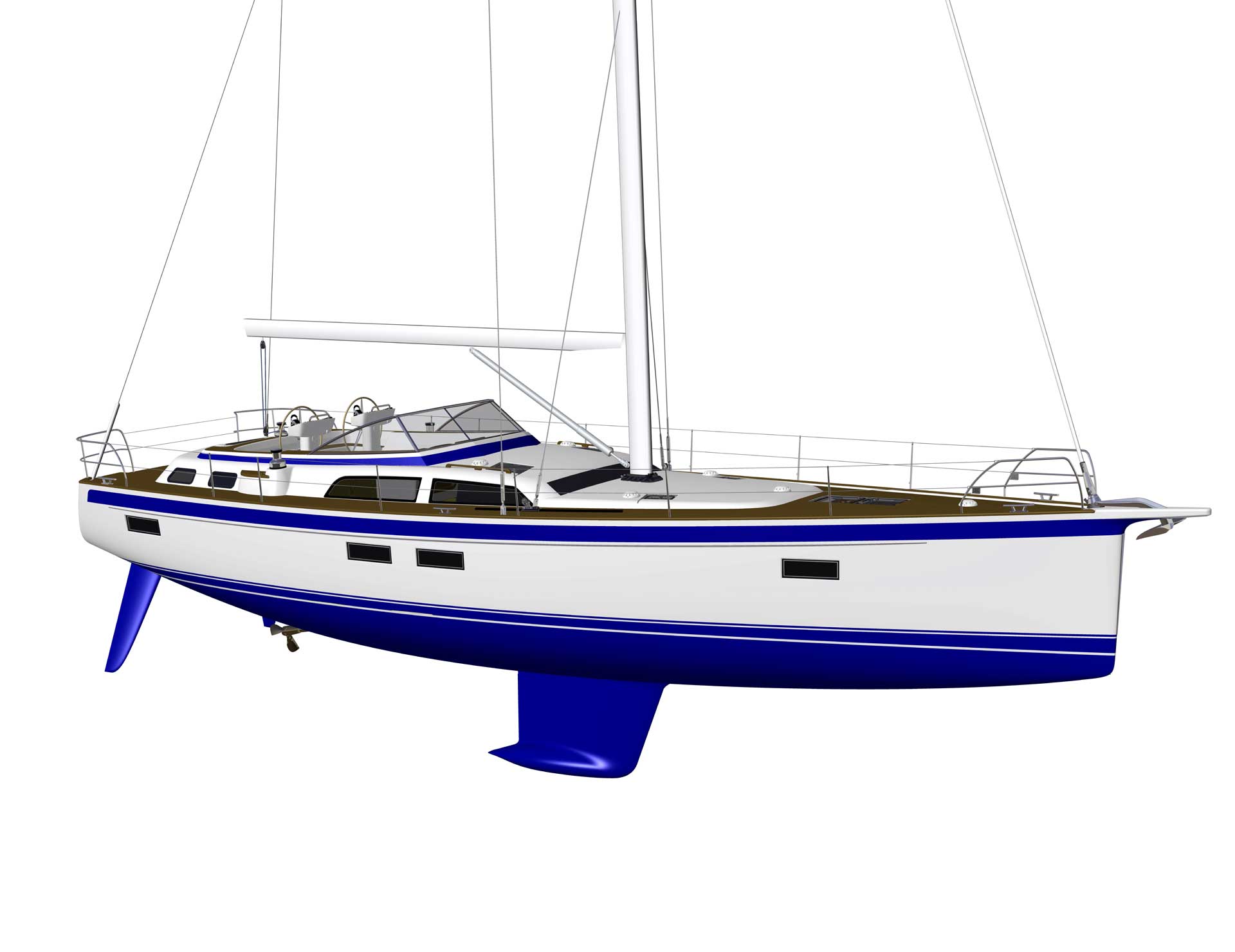

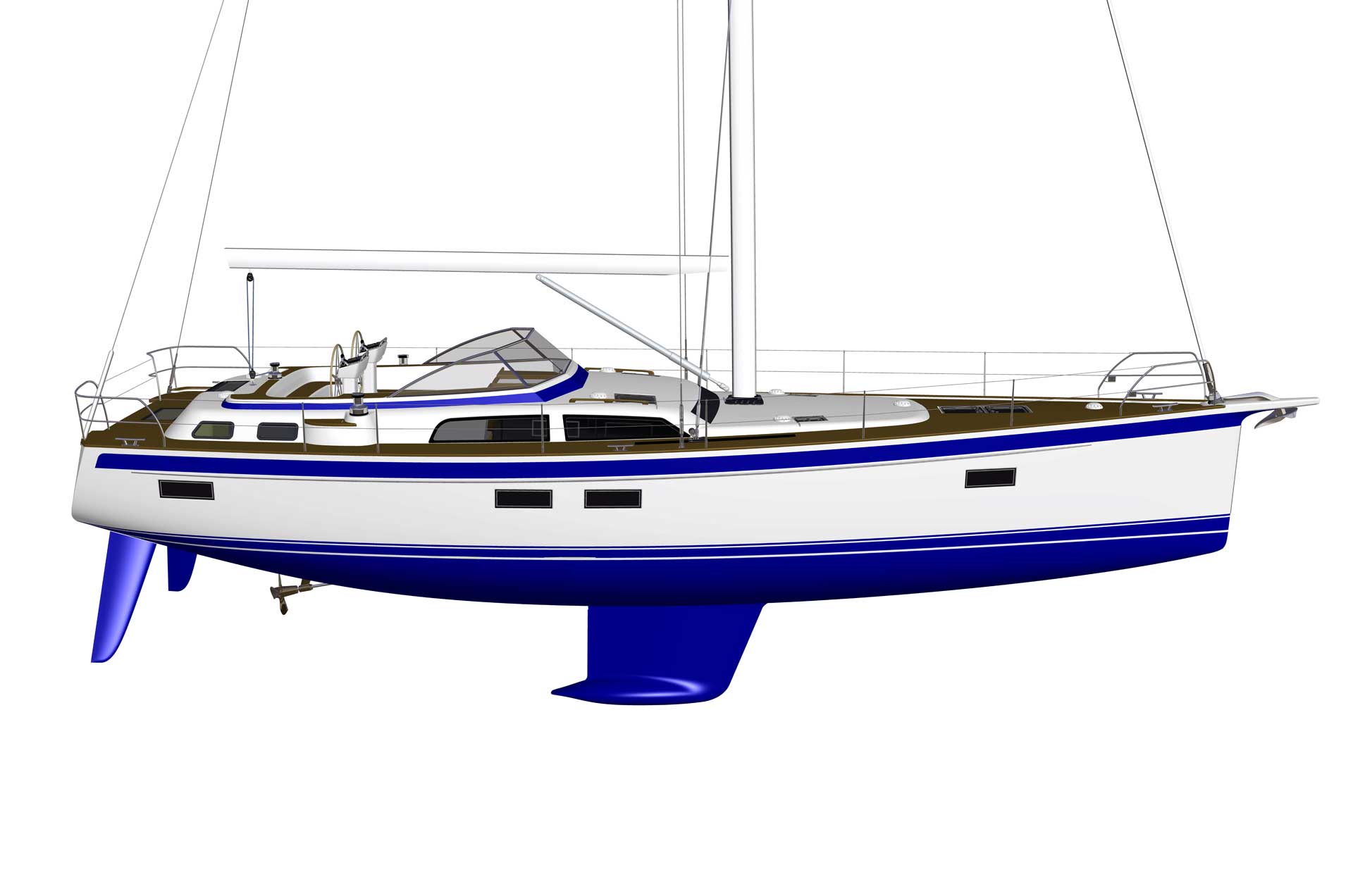

TWIN RUDDERS
The steering system has twin rudders, superior both in terms of control when sailing, as well as pleasant vibration free motoring and also from a safety perspective.
ONE LEVEL SOLE

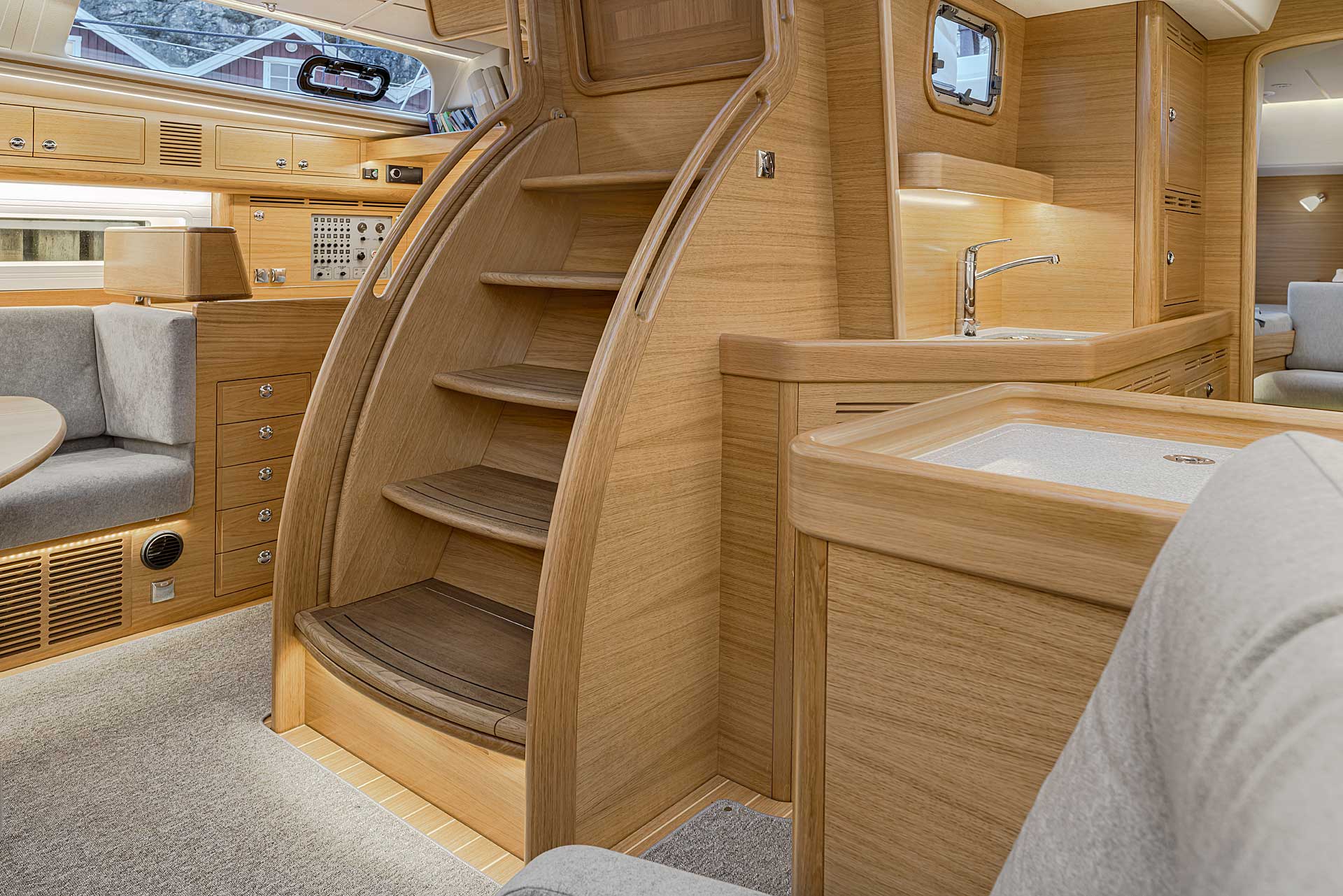

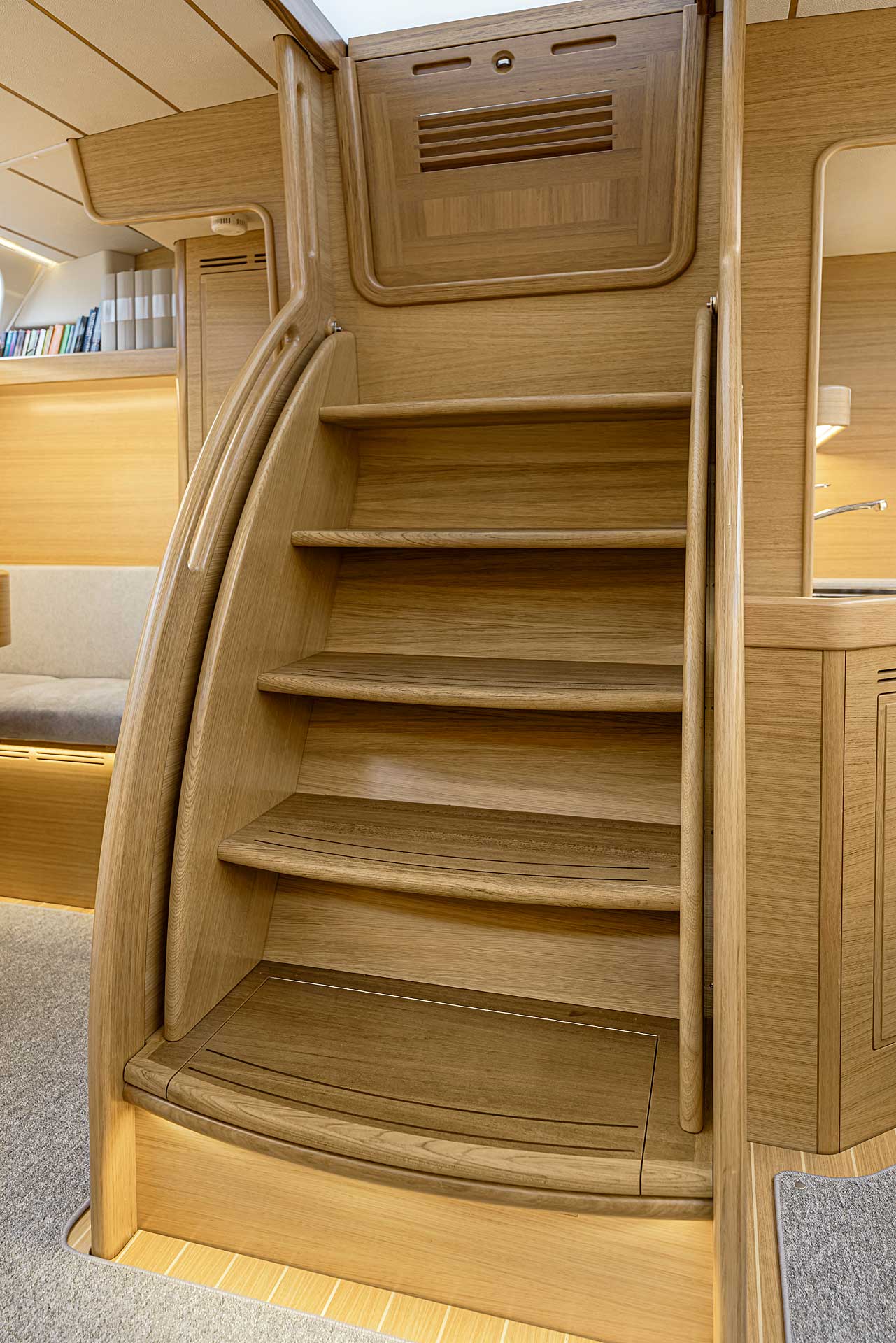

The interior sole is at one level throughout the boat. This gives easy movement both at sea and at anchor or in a marina.

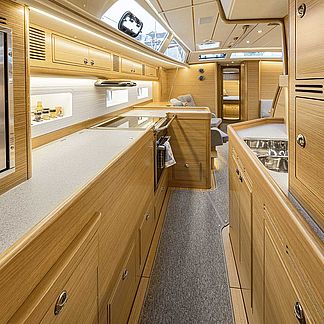

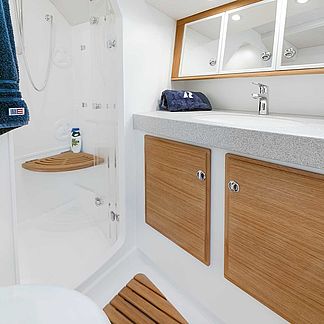

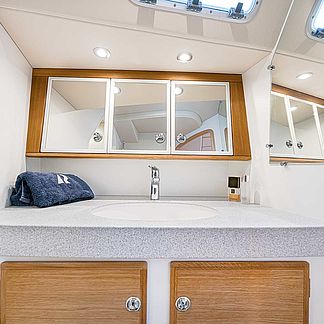

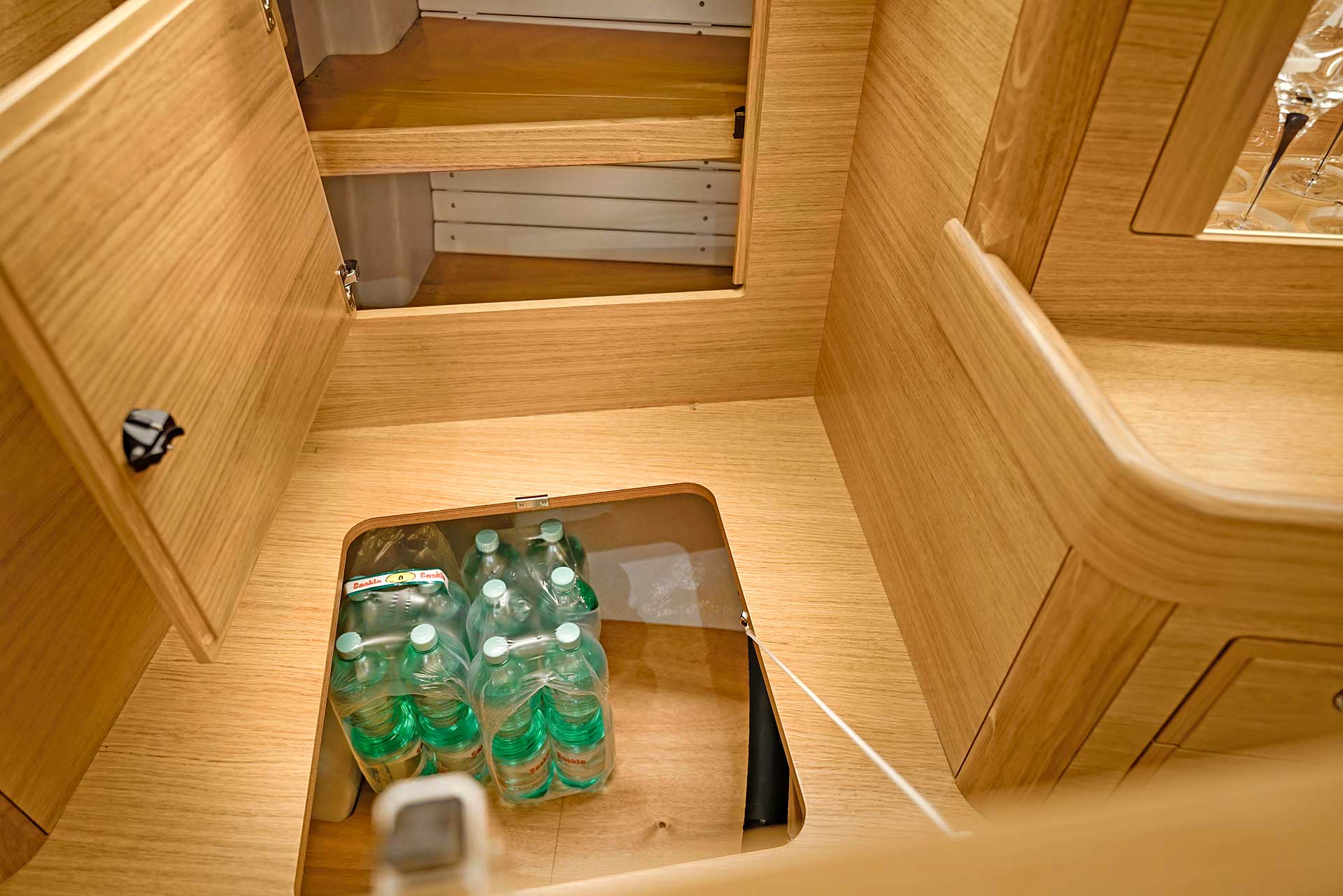

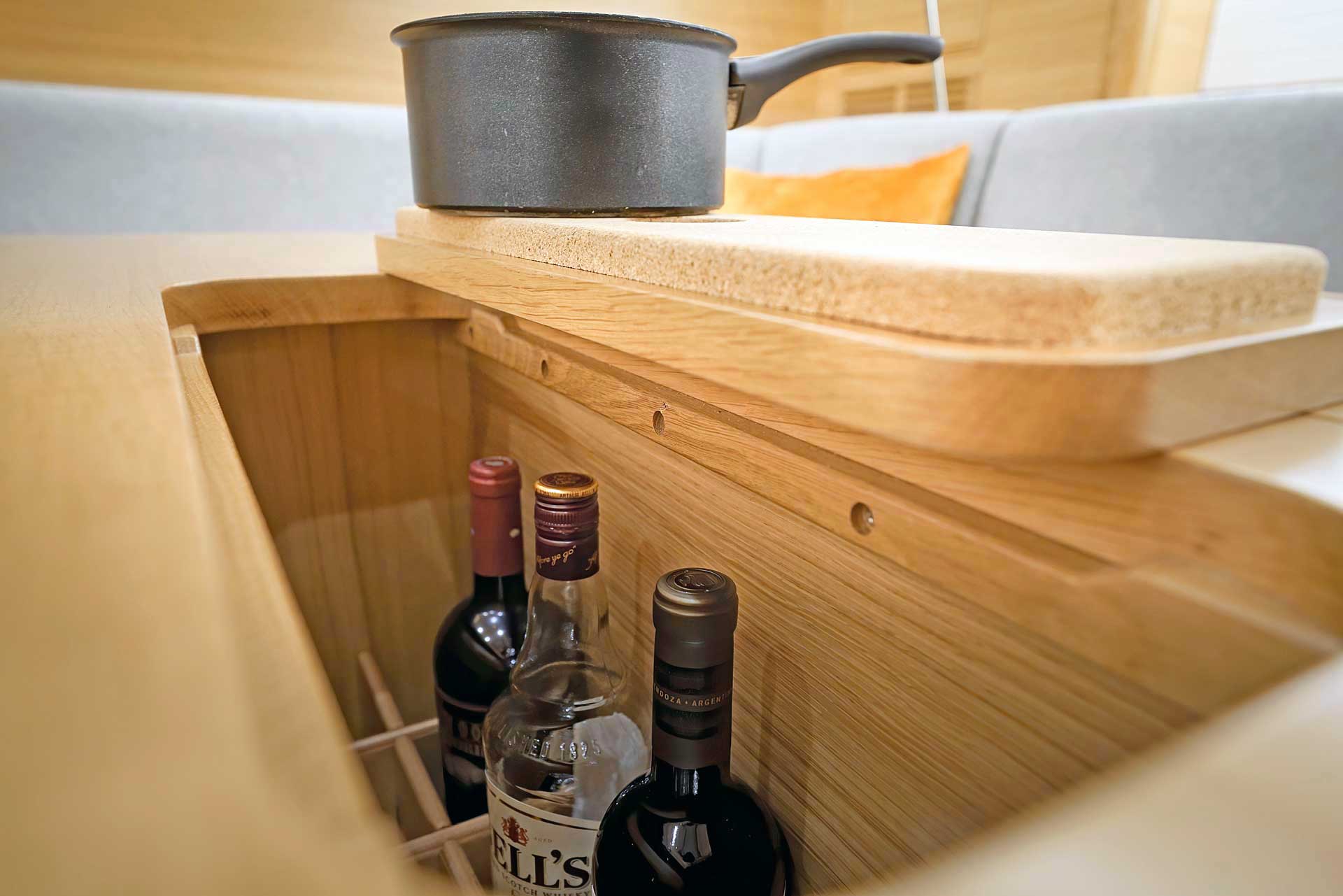

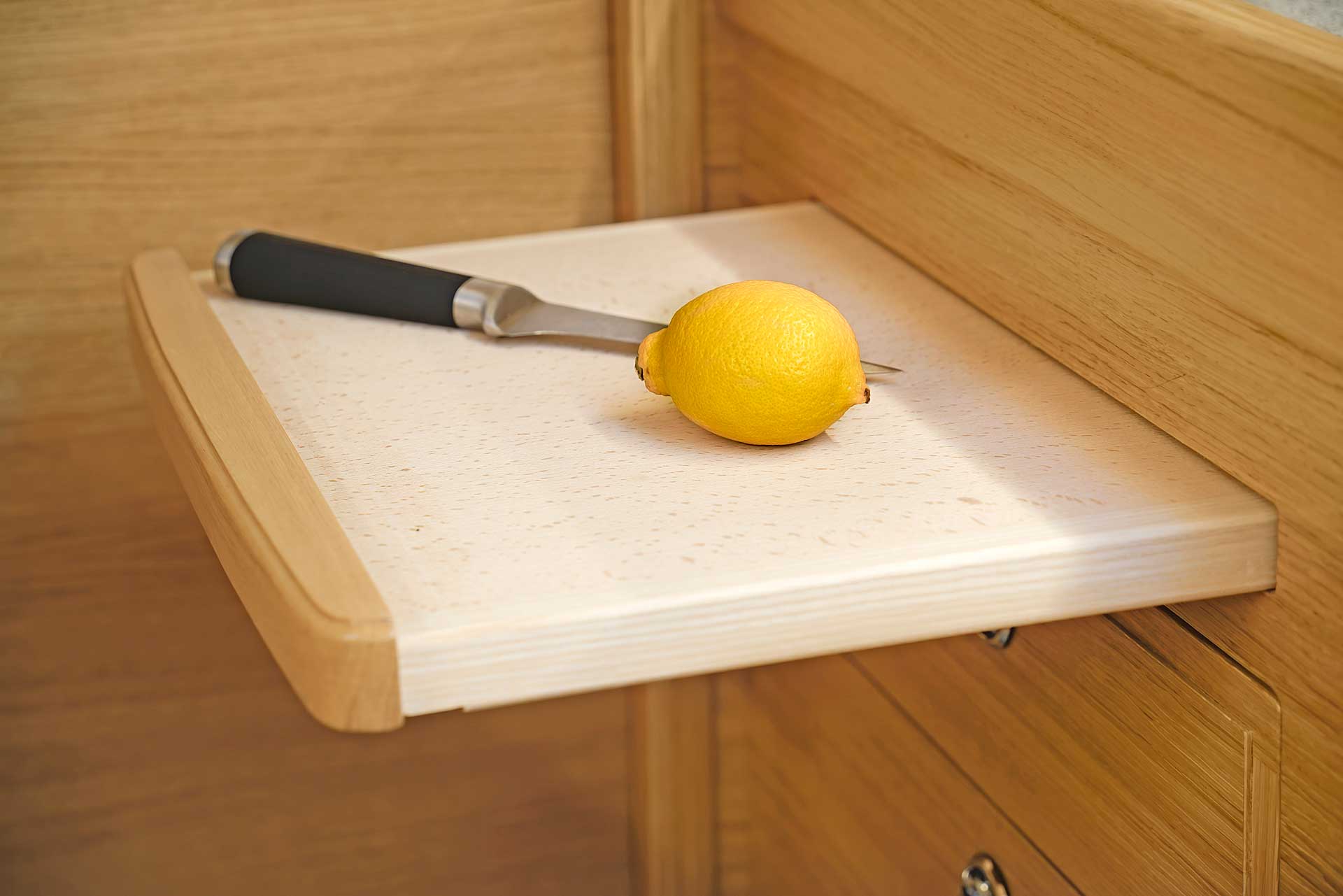

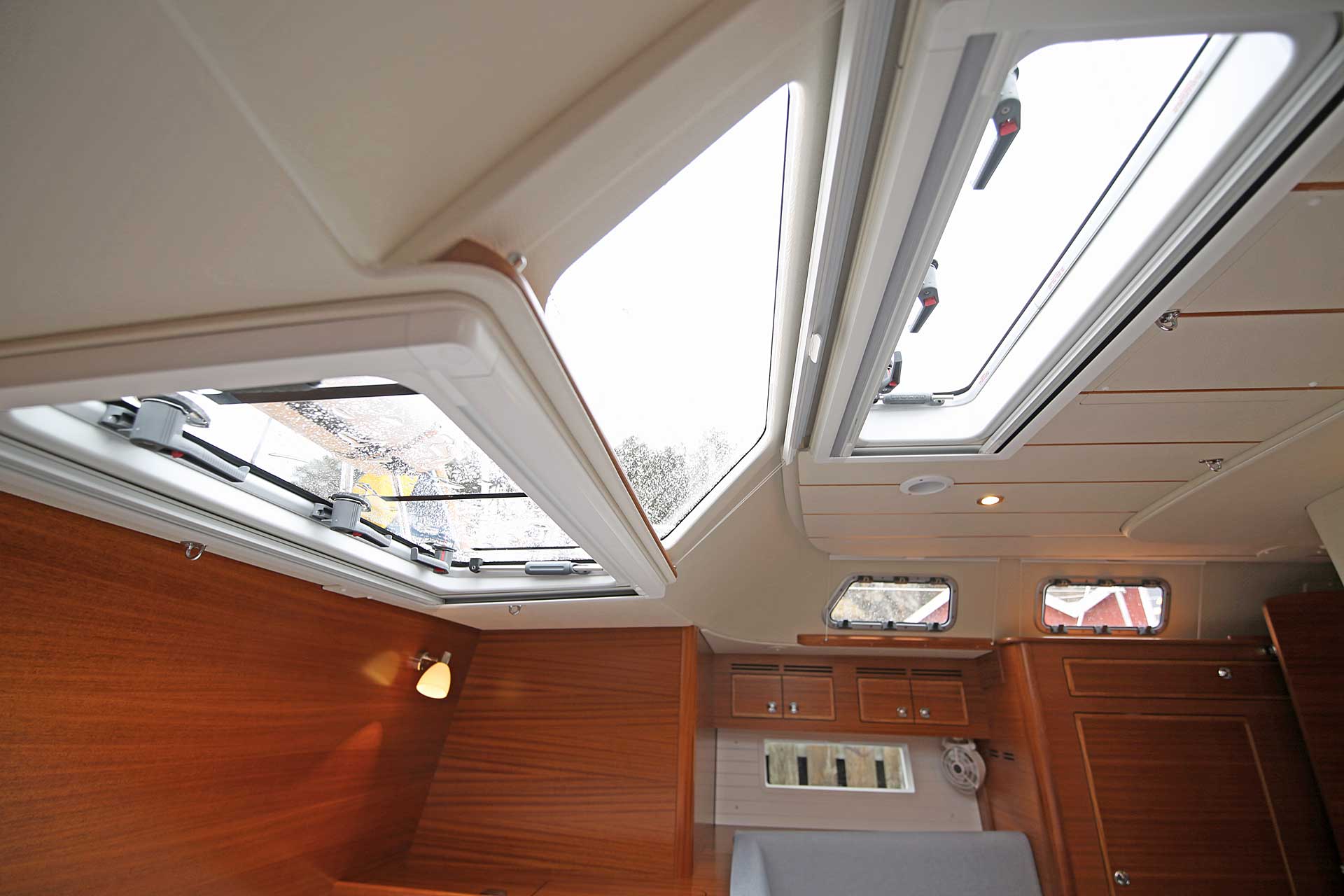

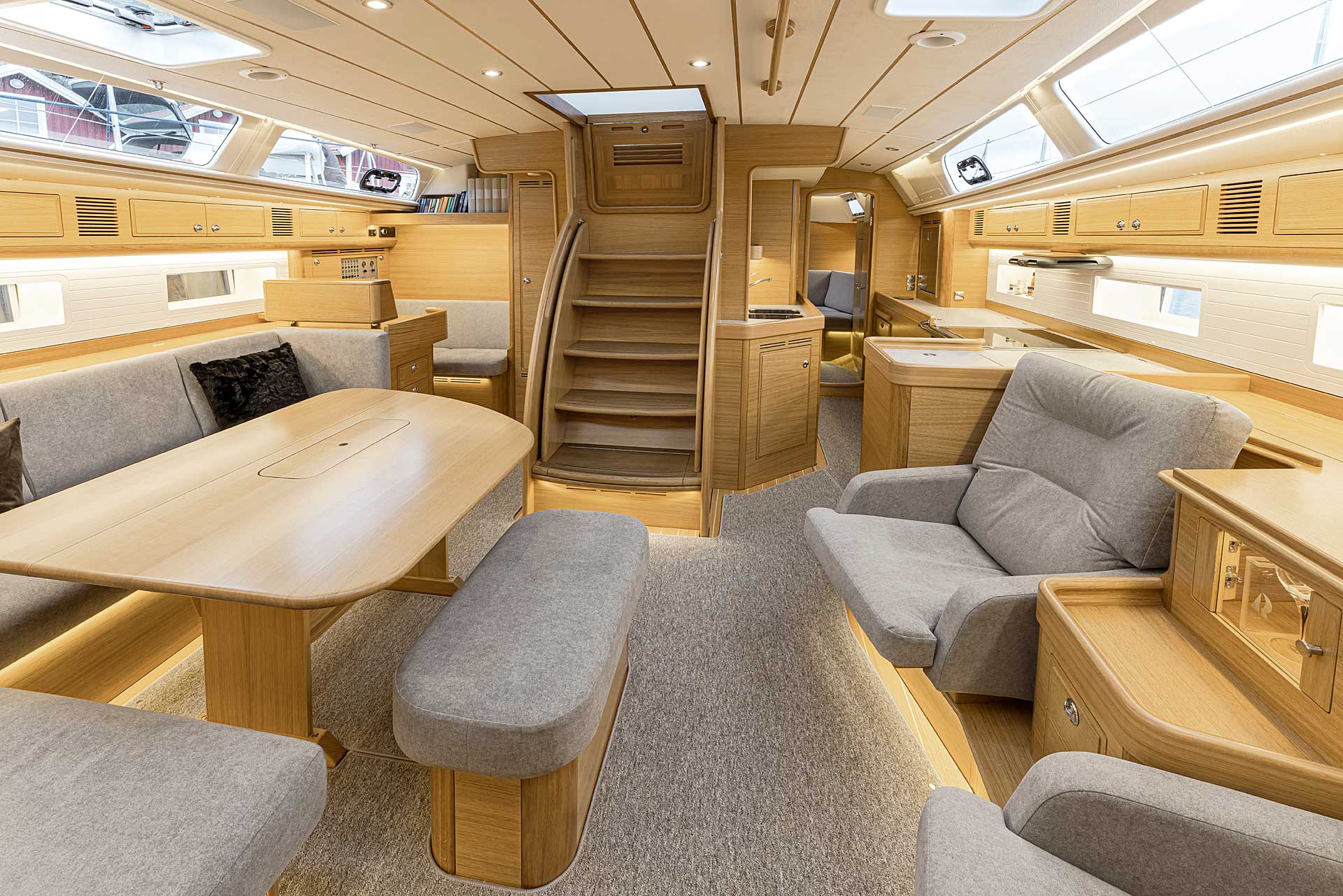

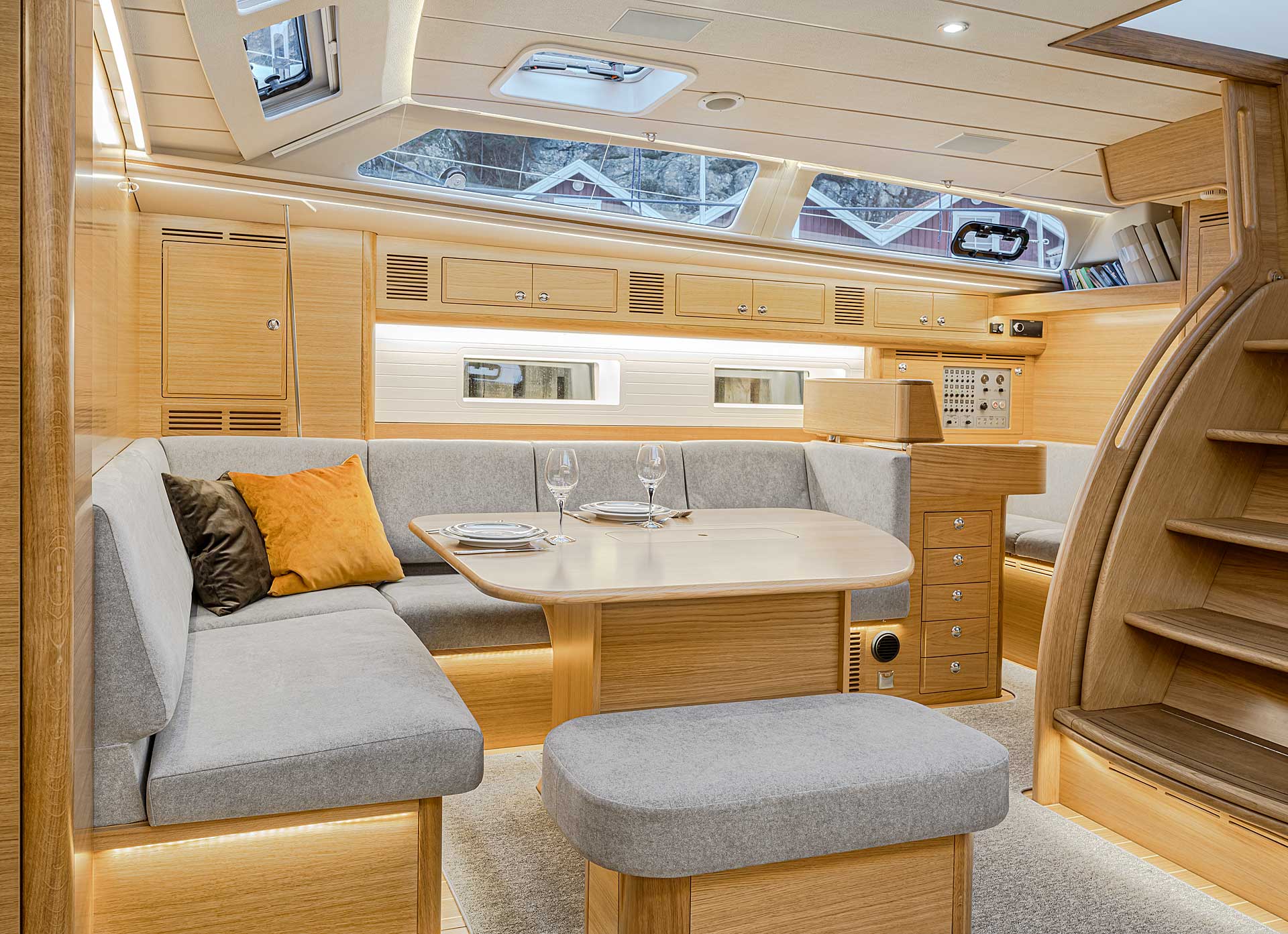

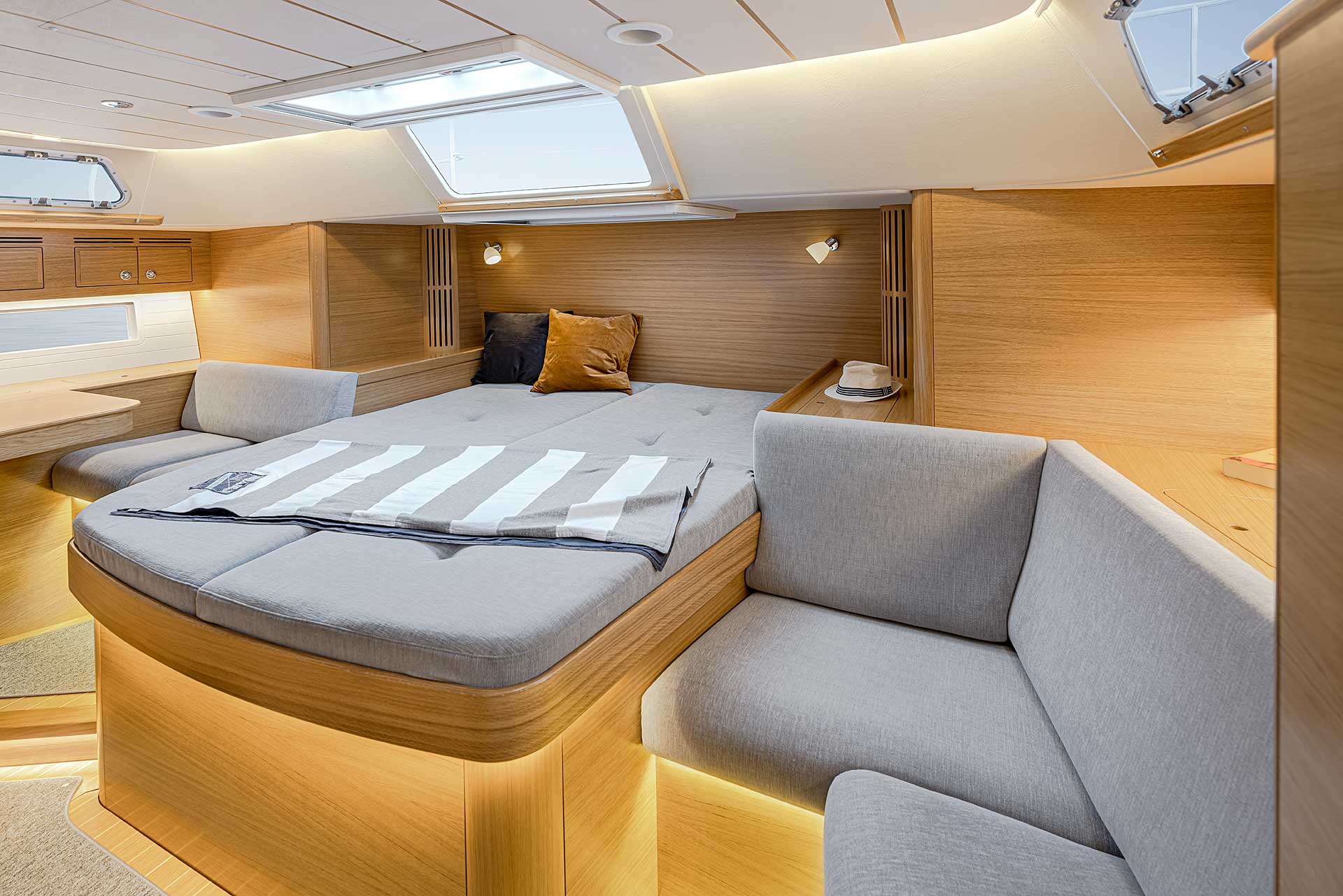

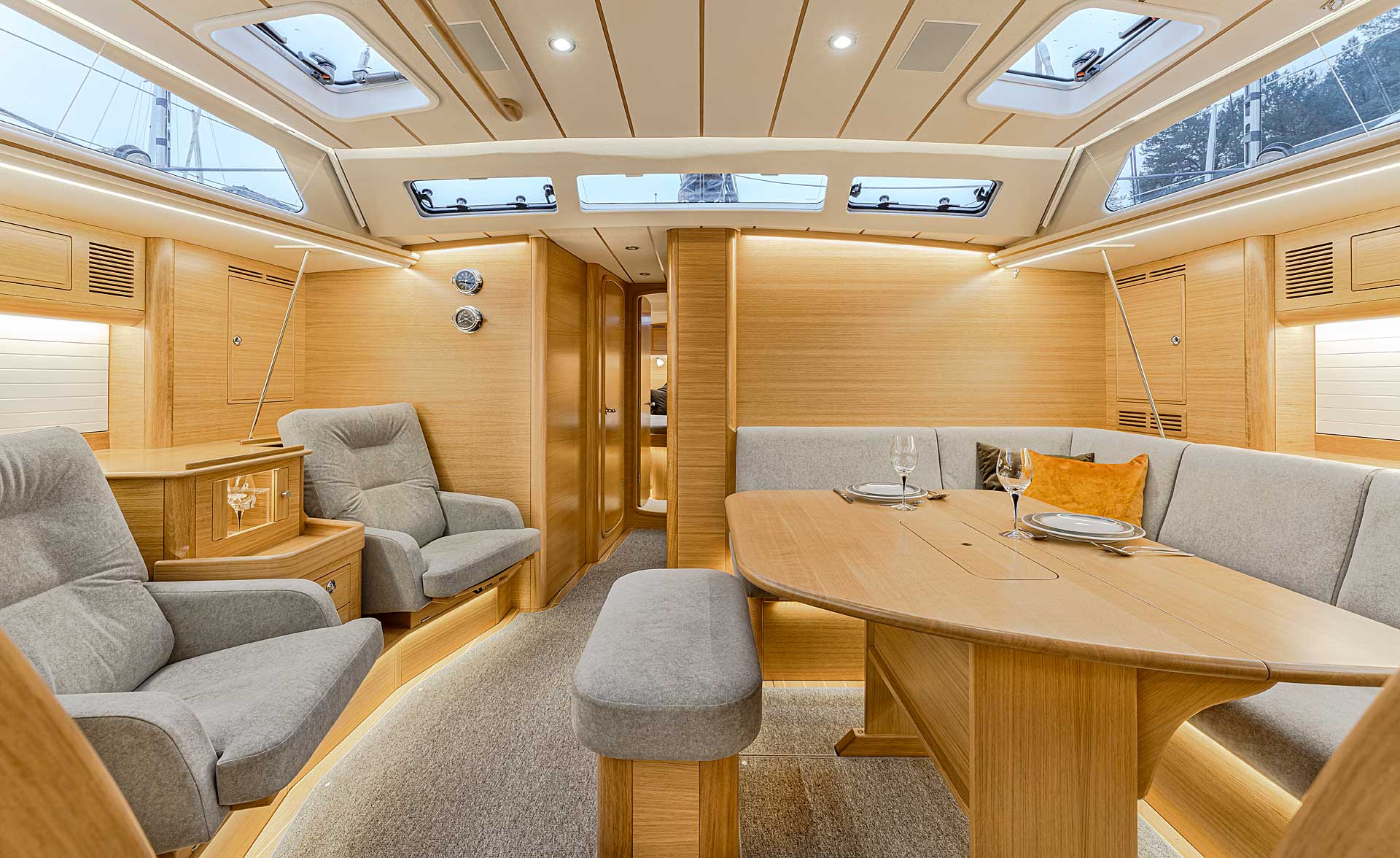

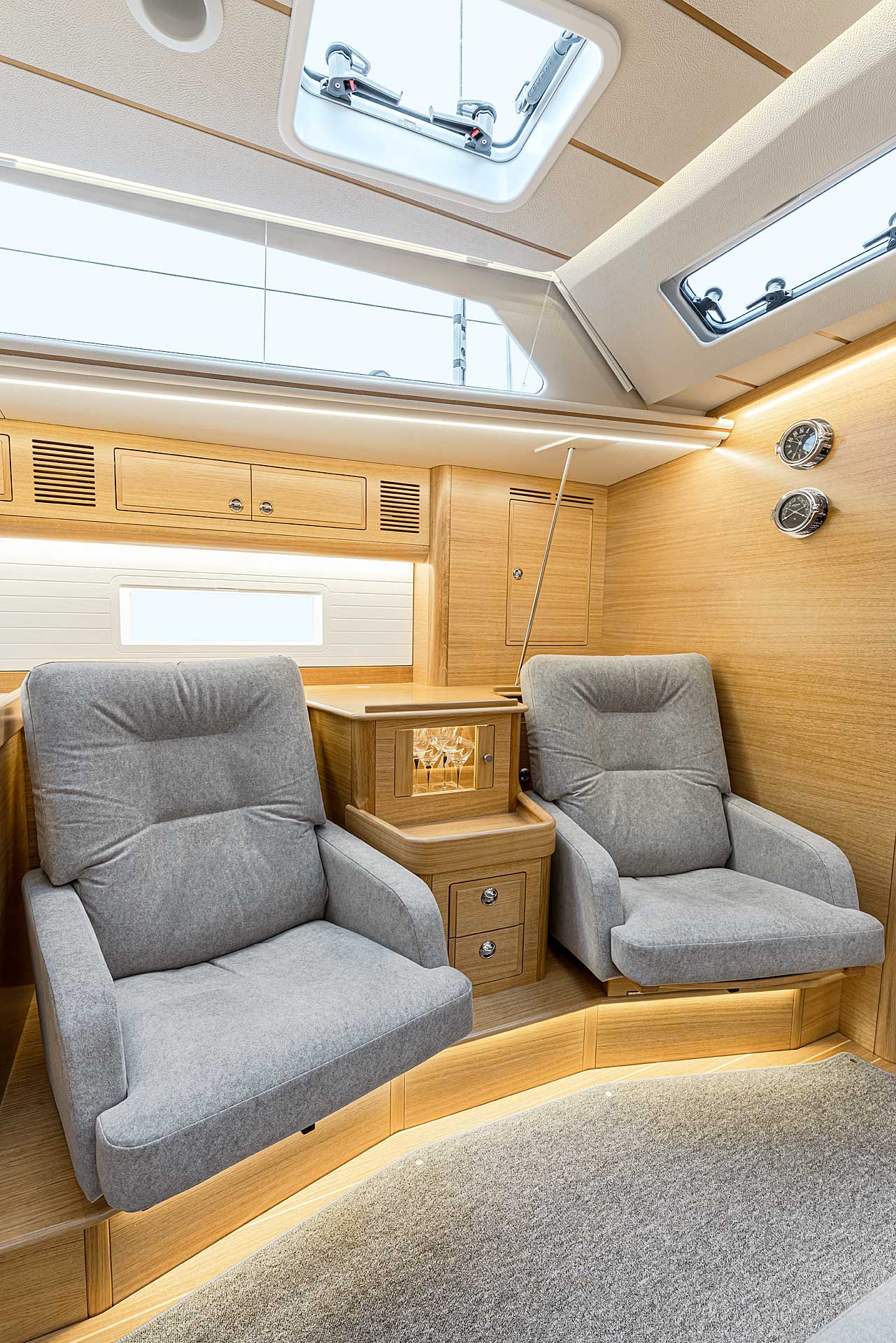

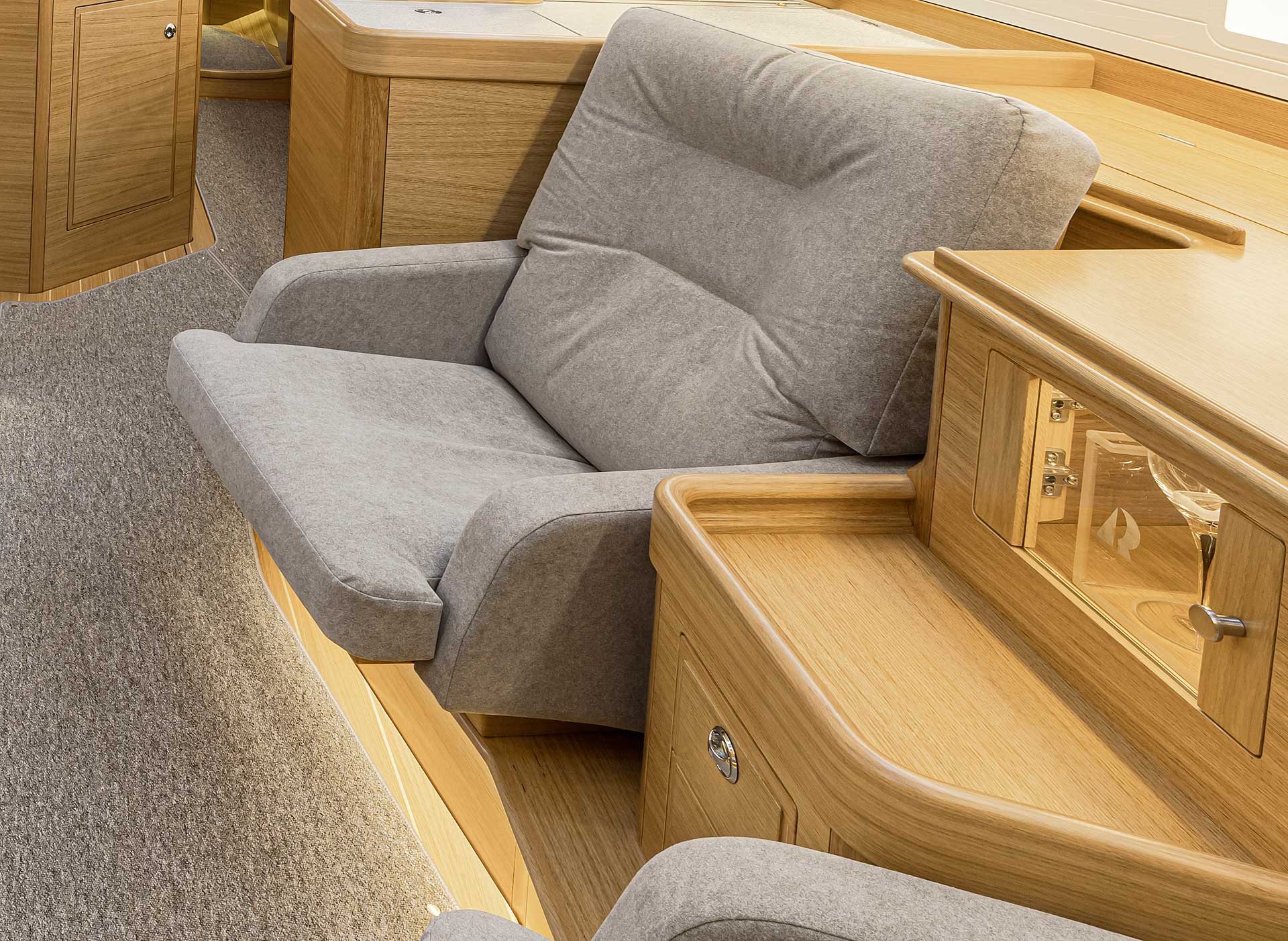

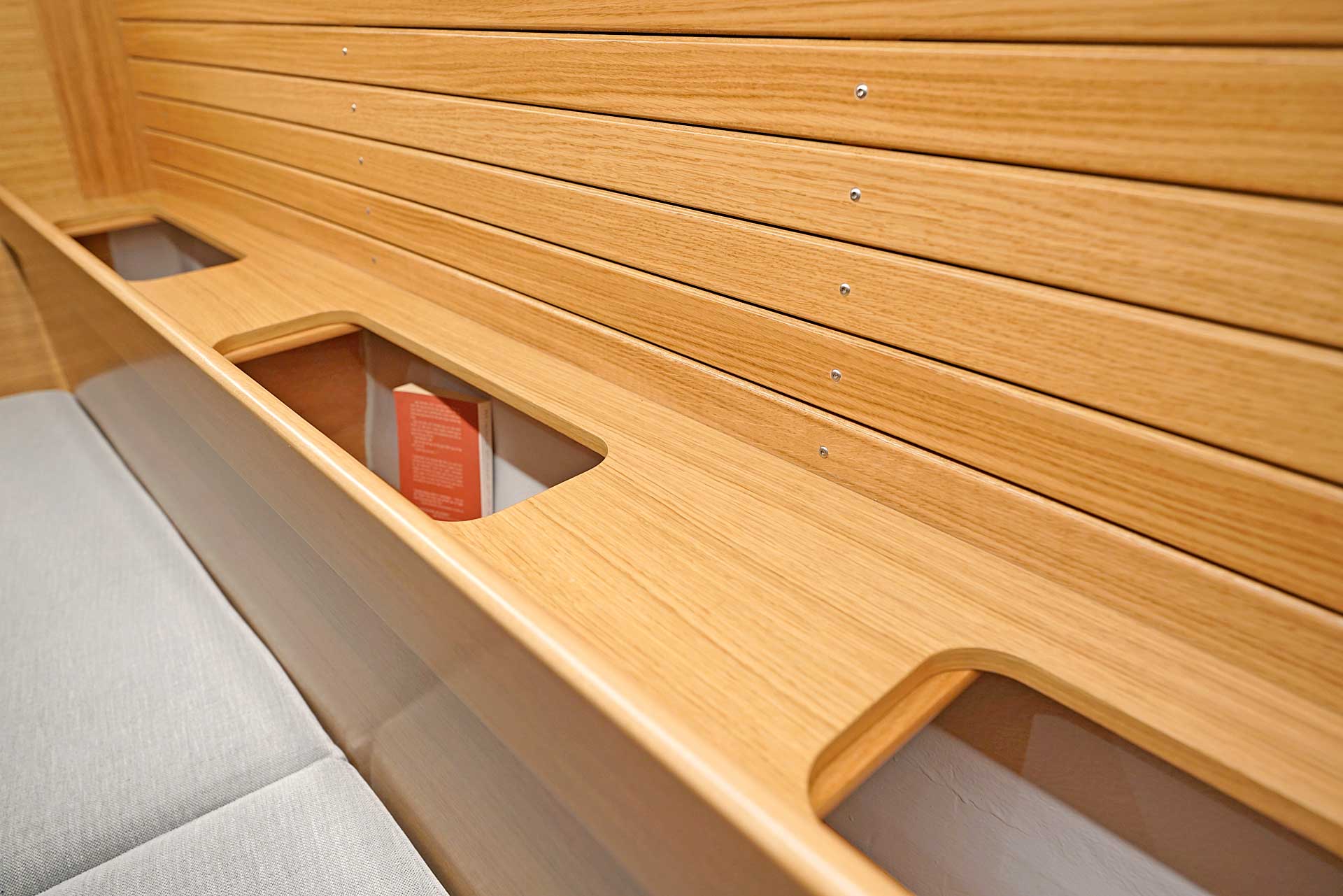

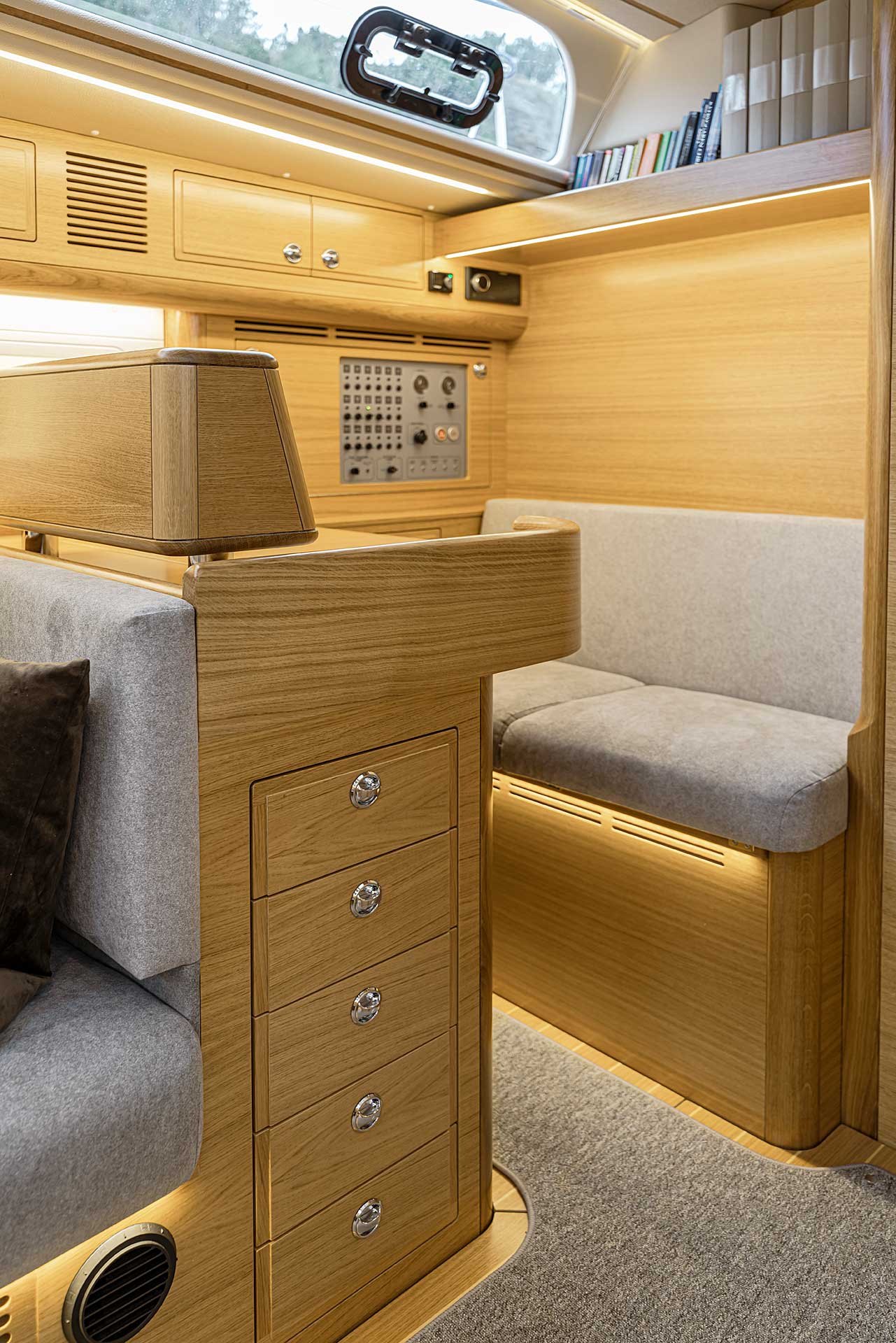

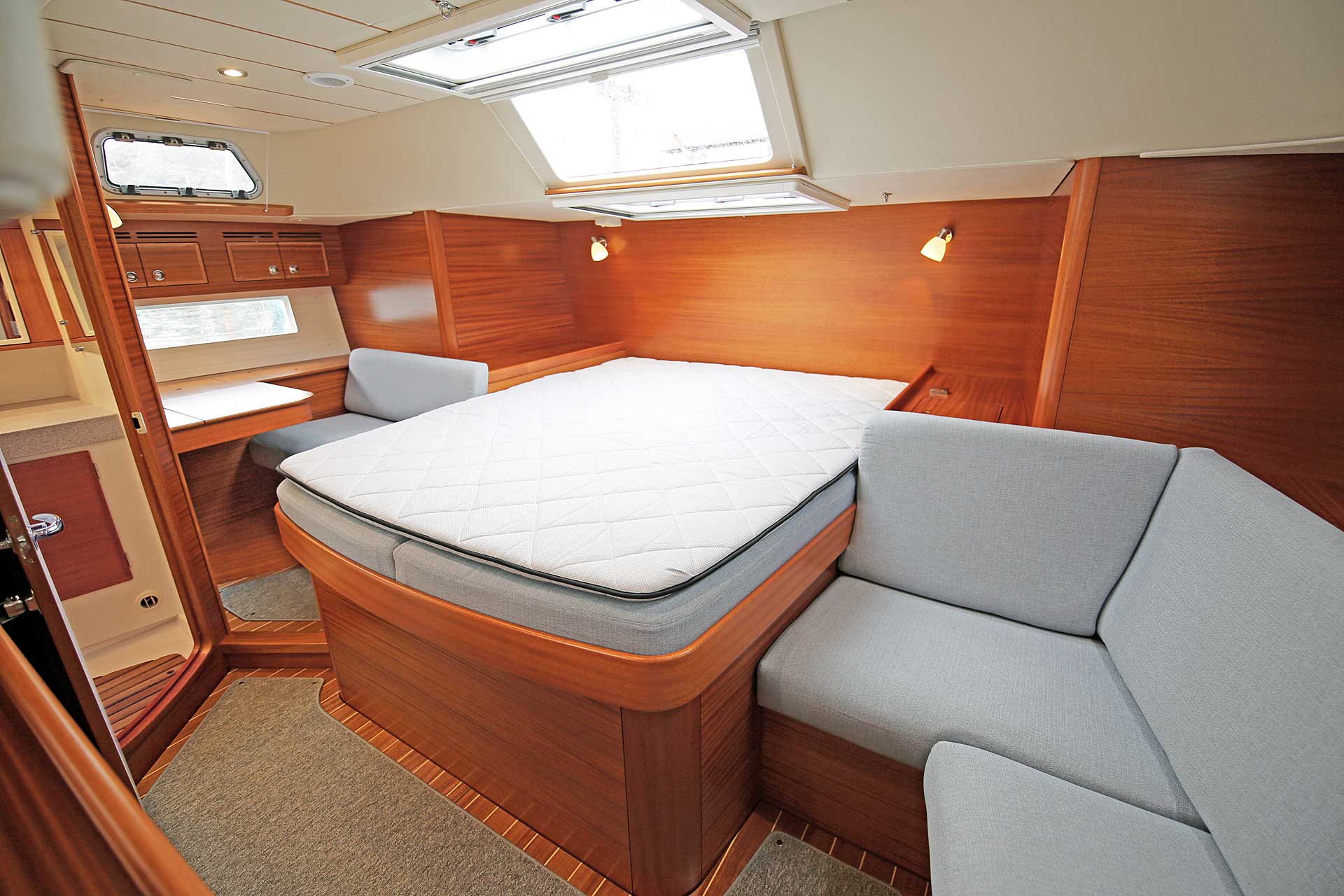

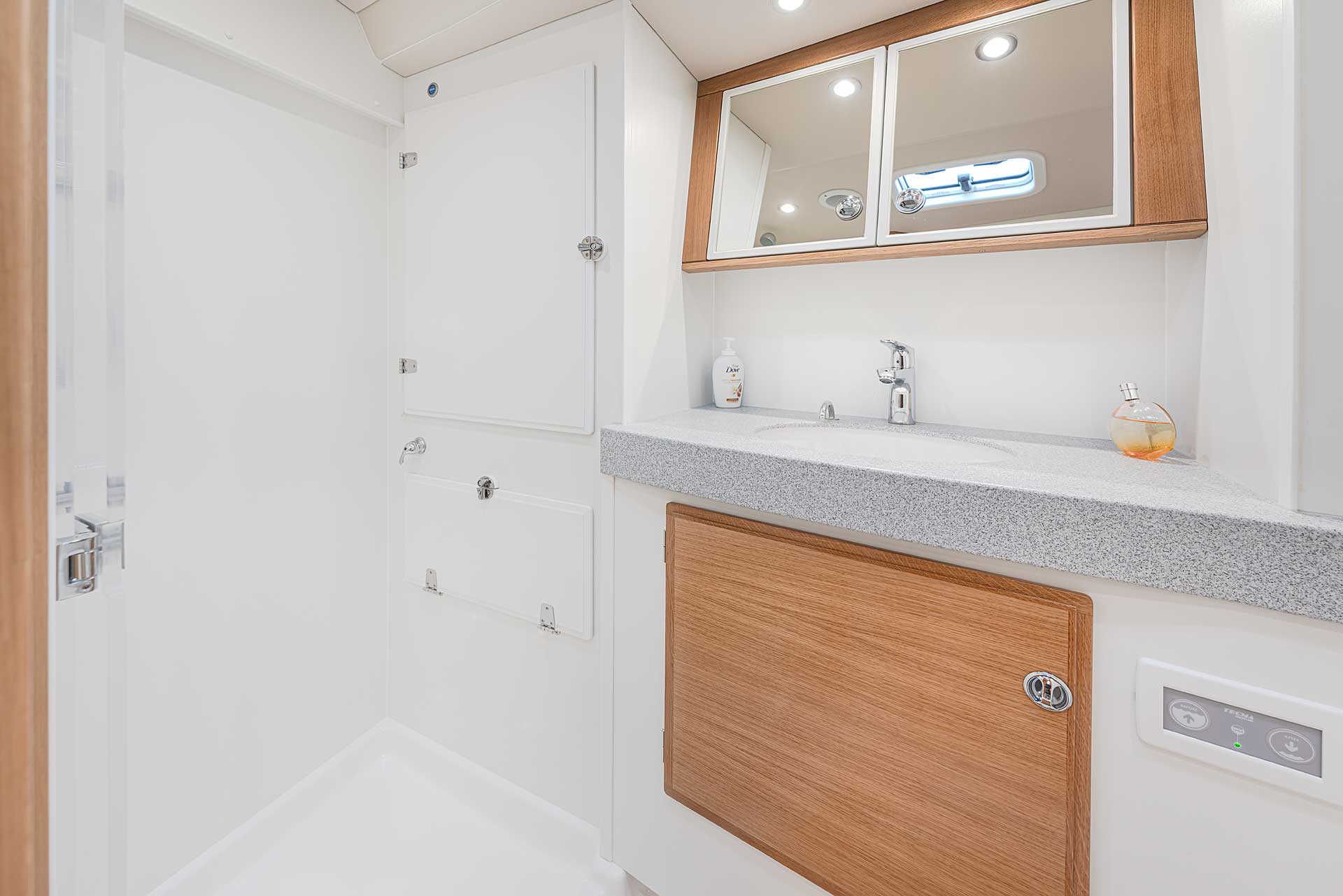

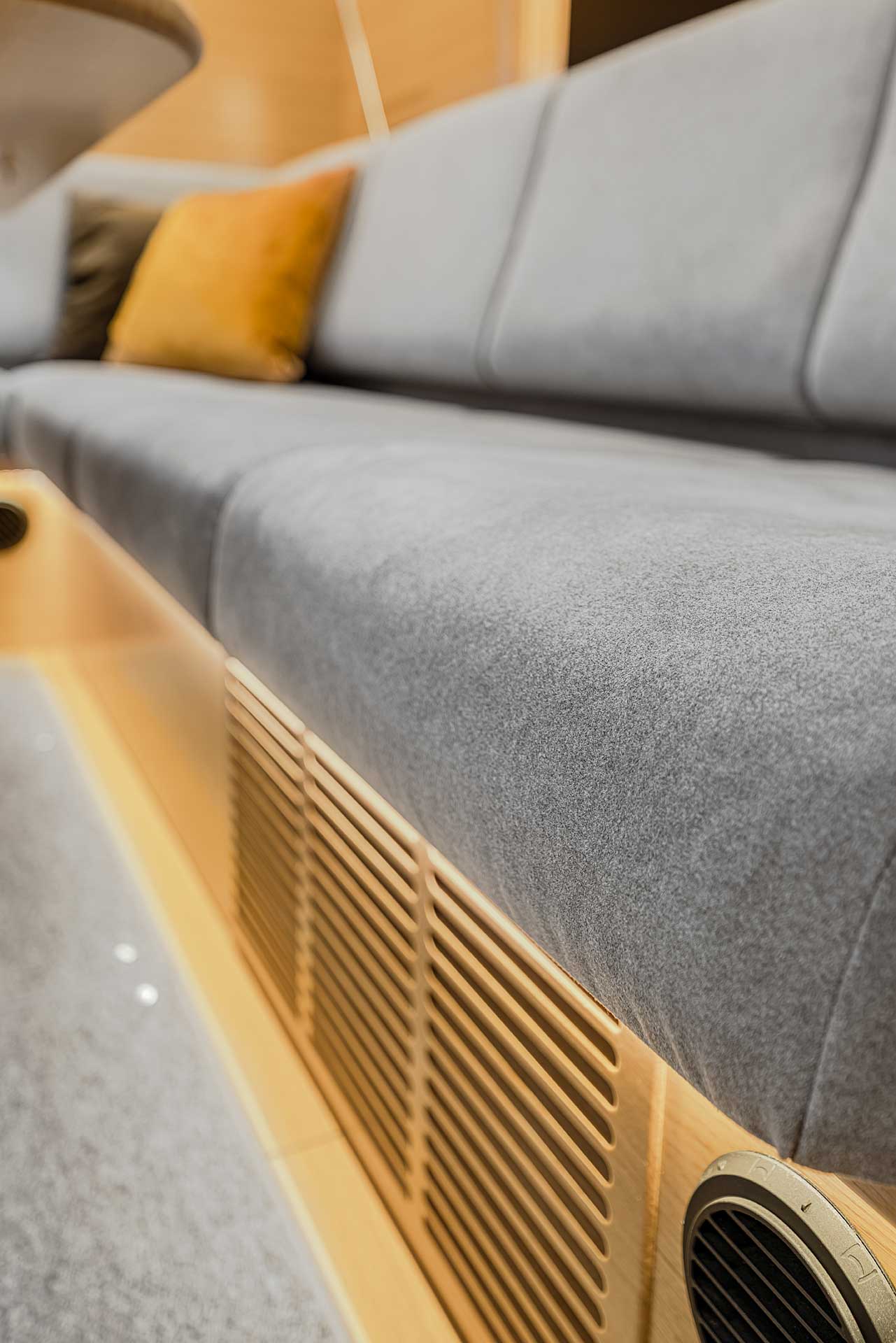

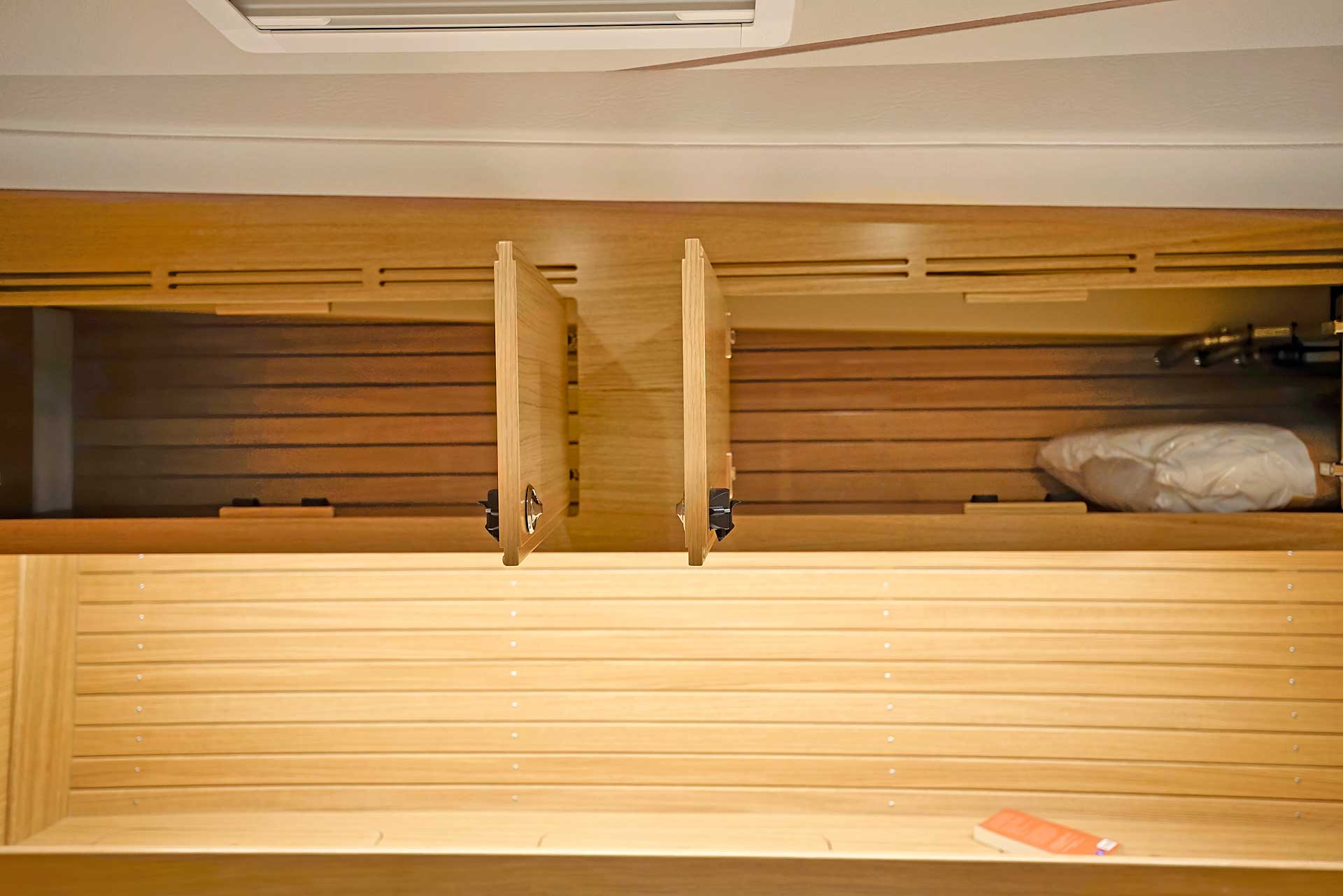

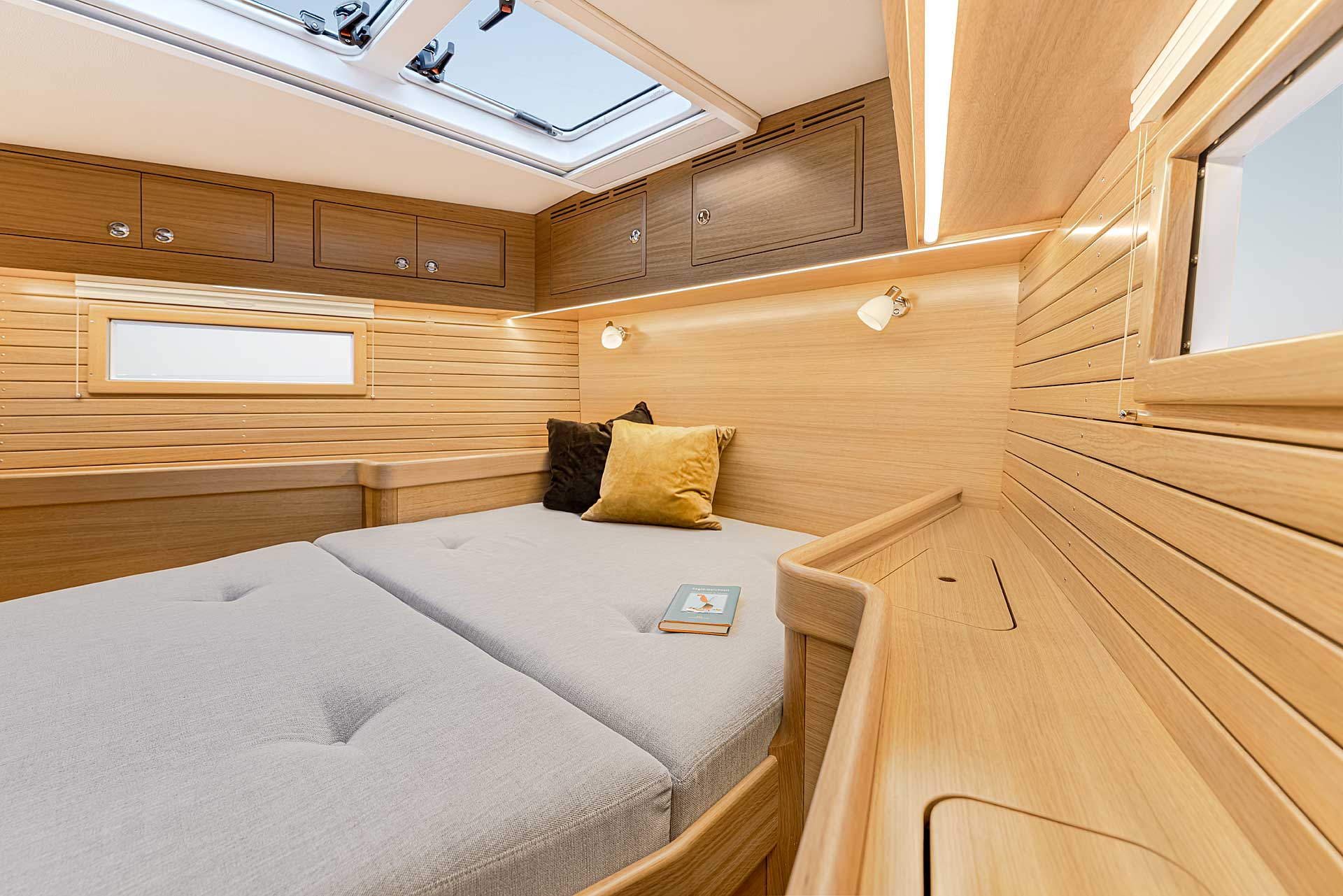

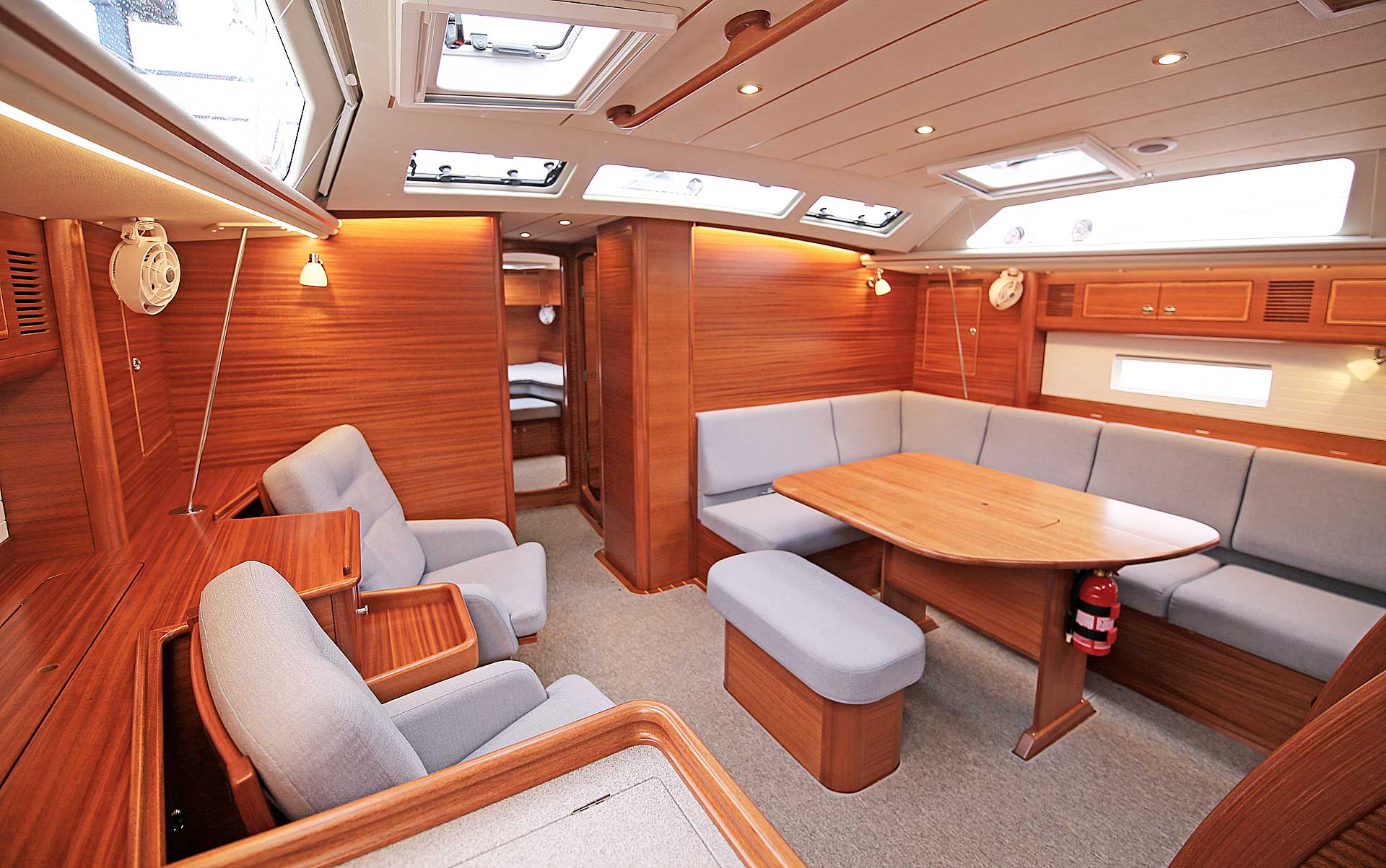

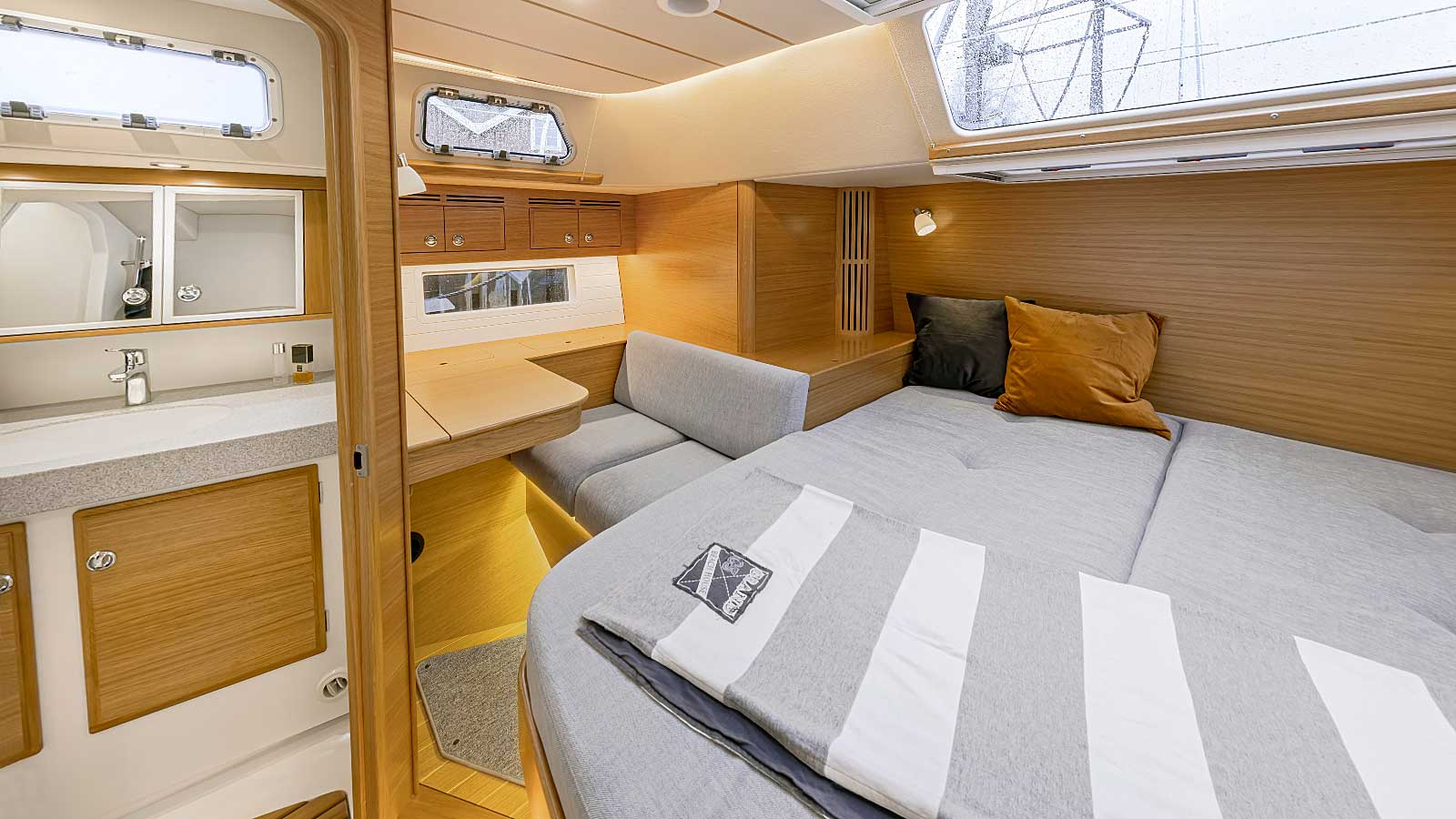

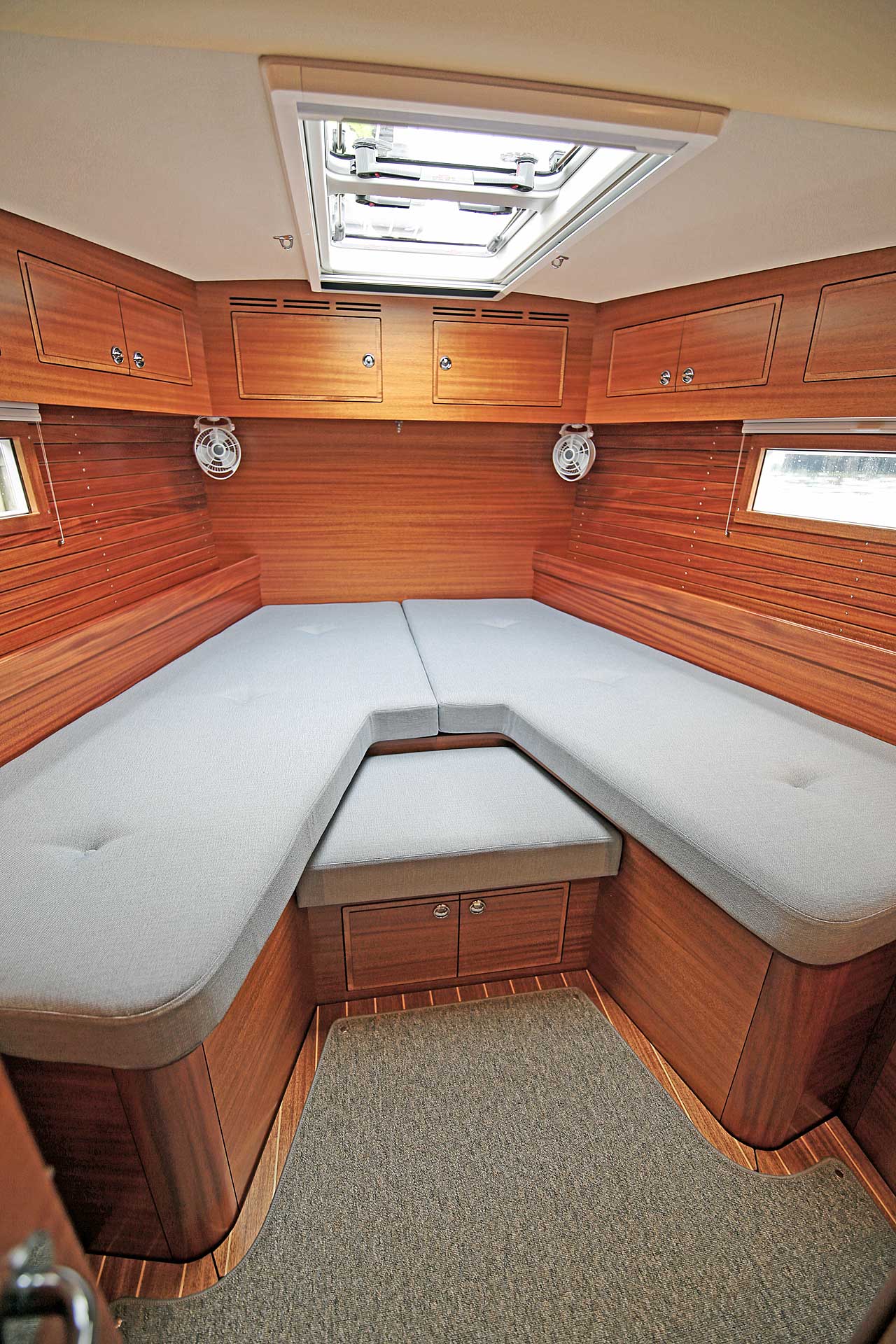

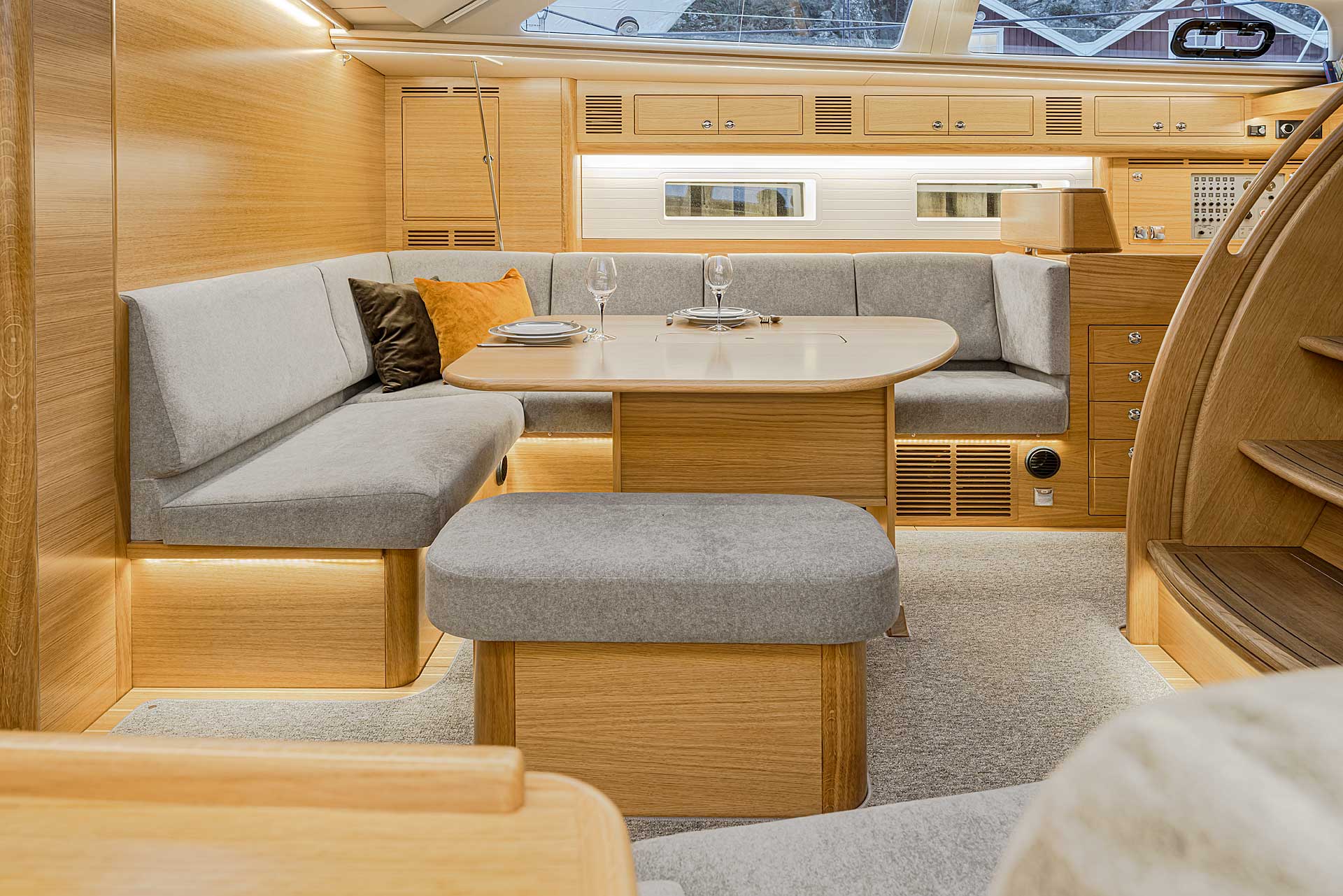

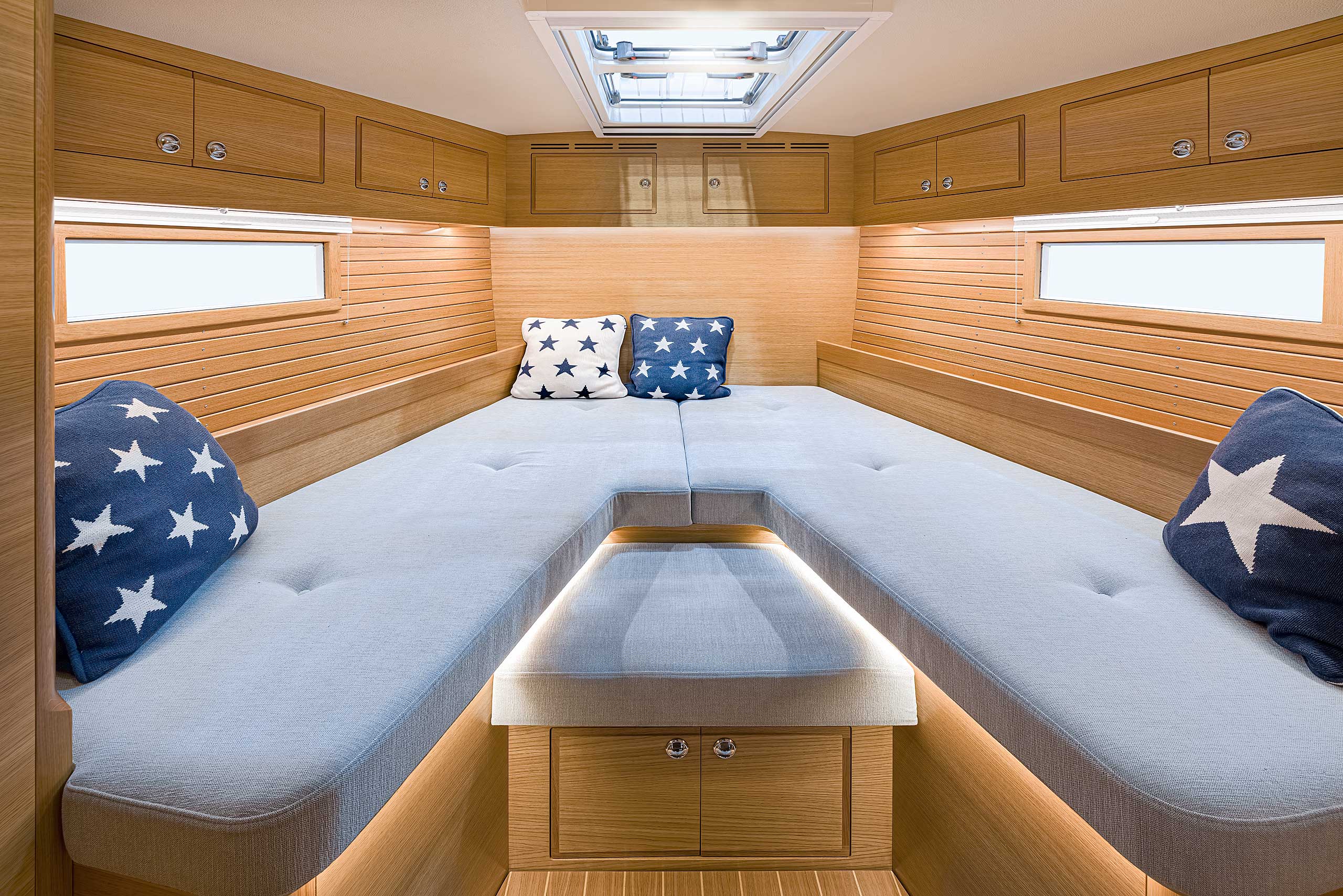

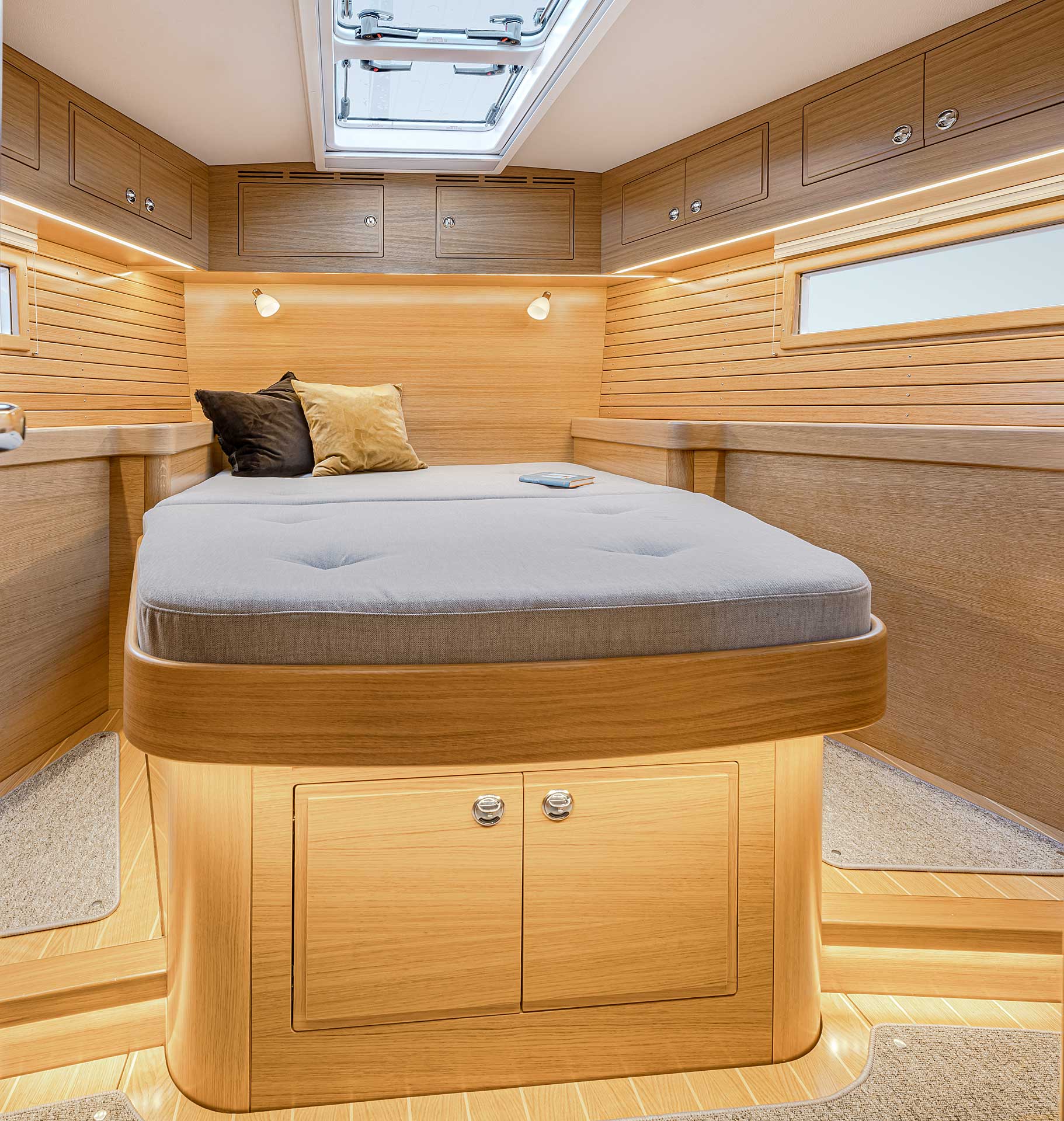

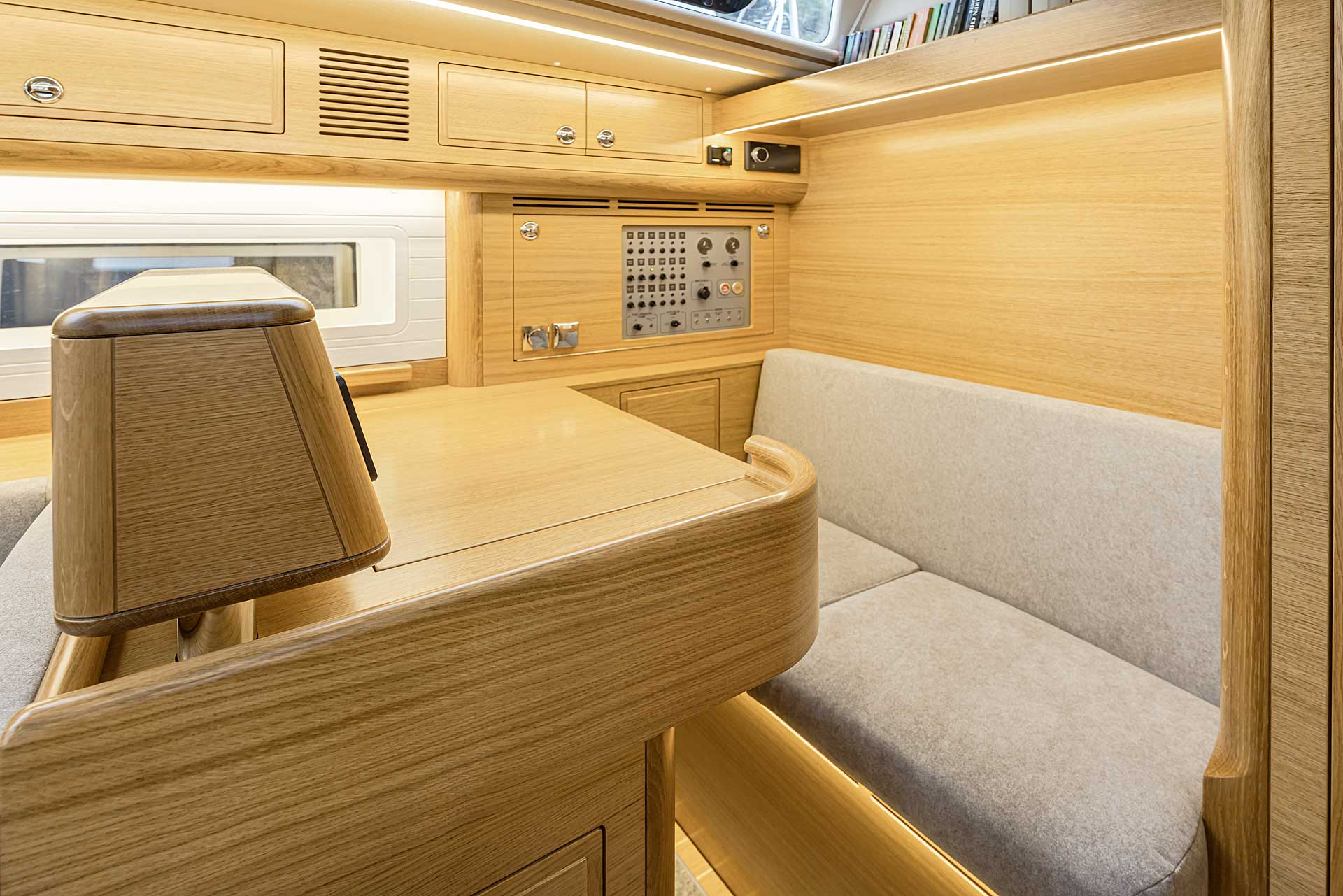

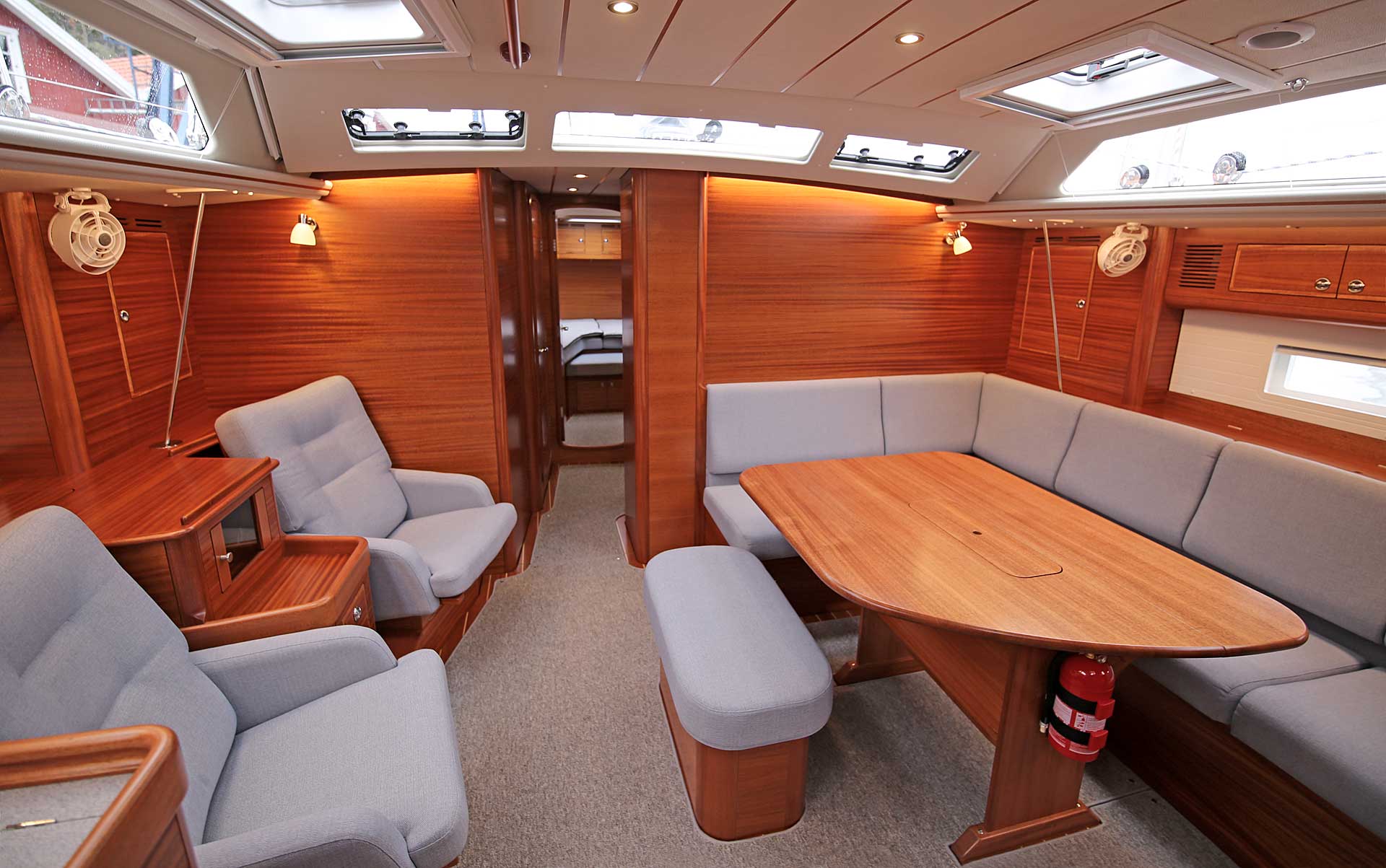

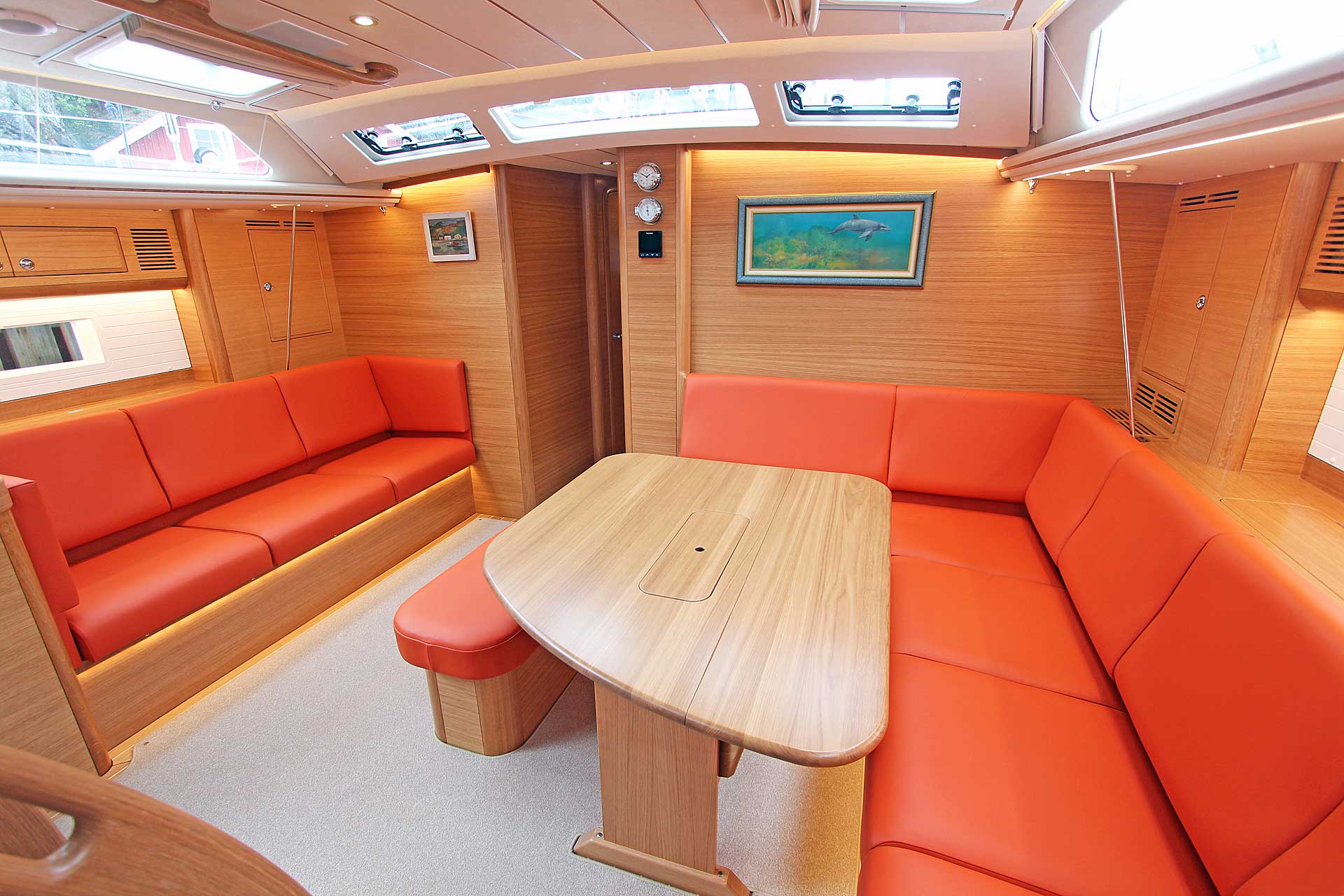

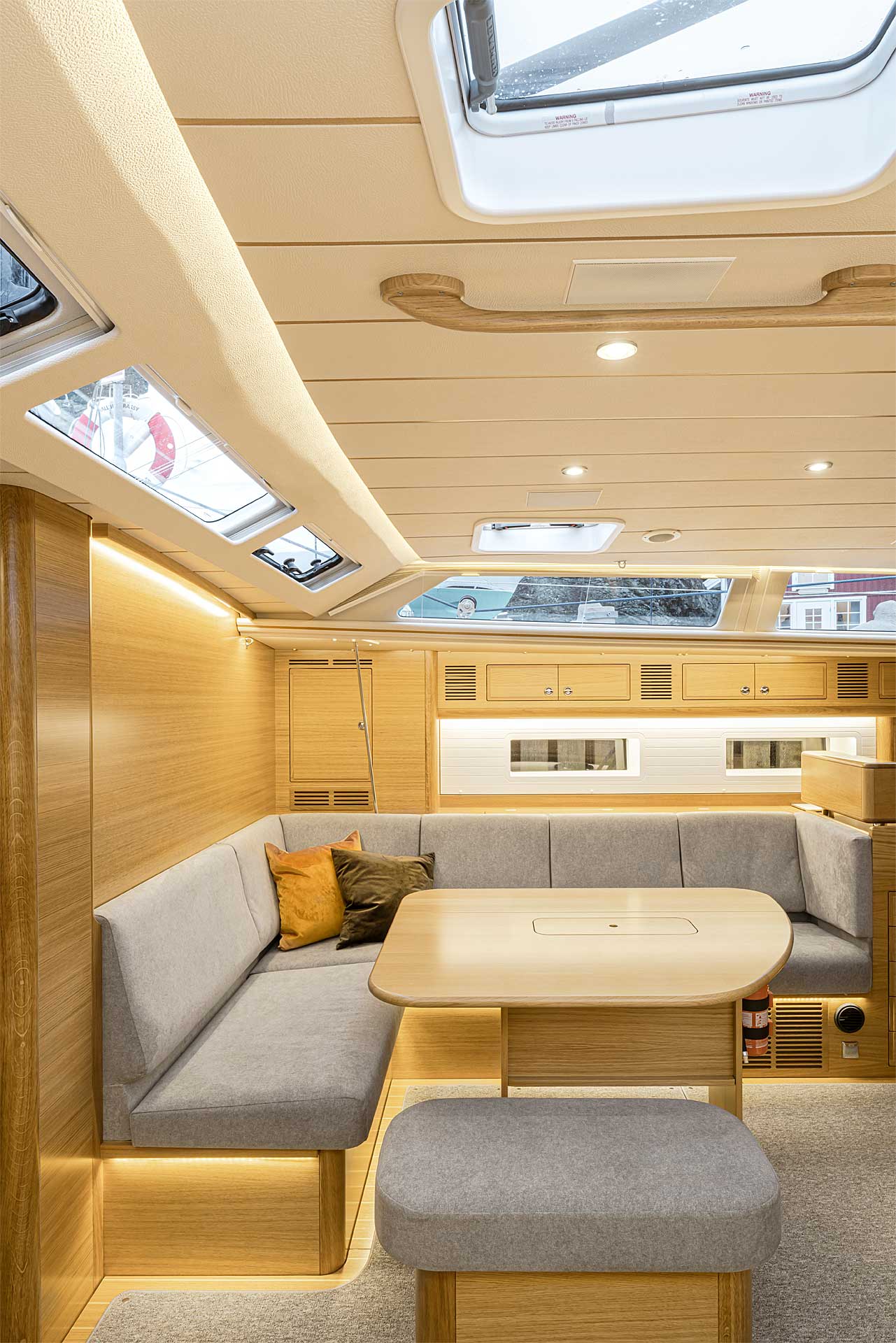

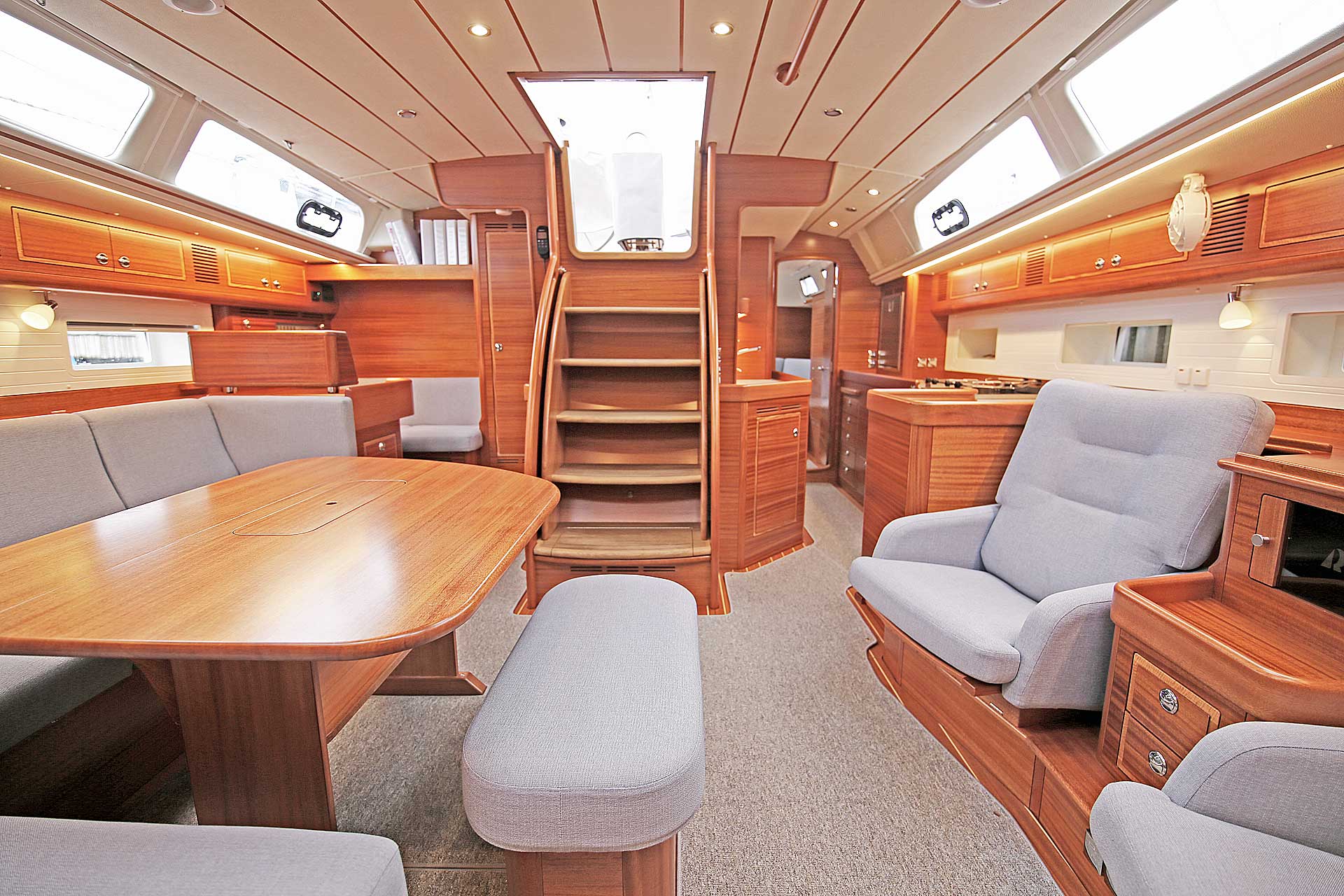

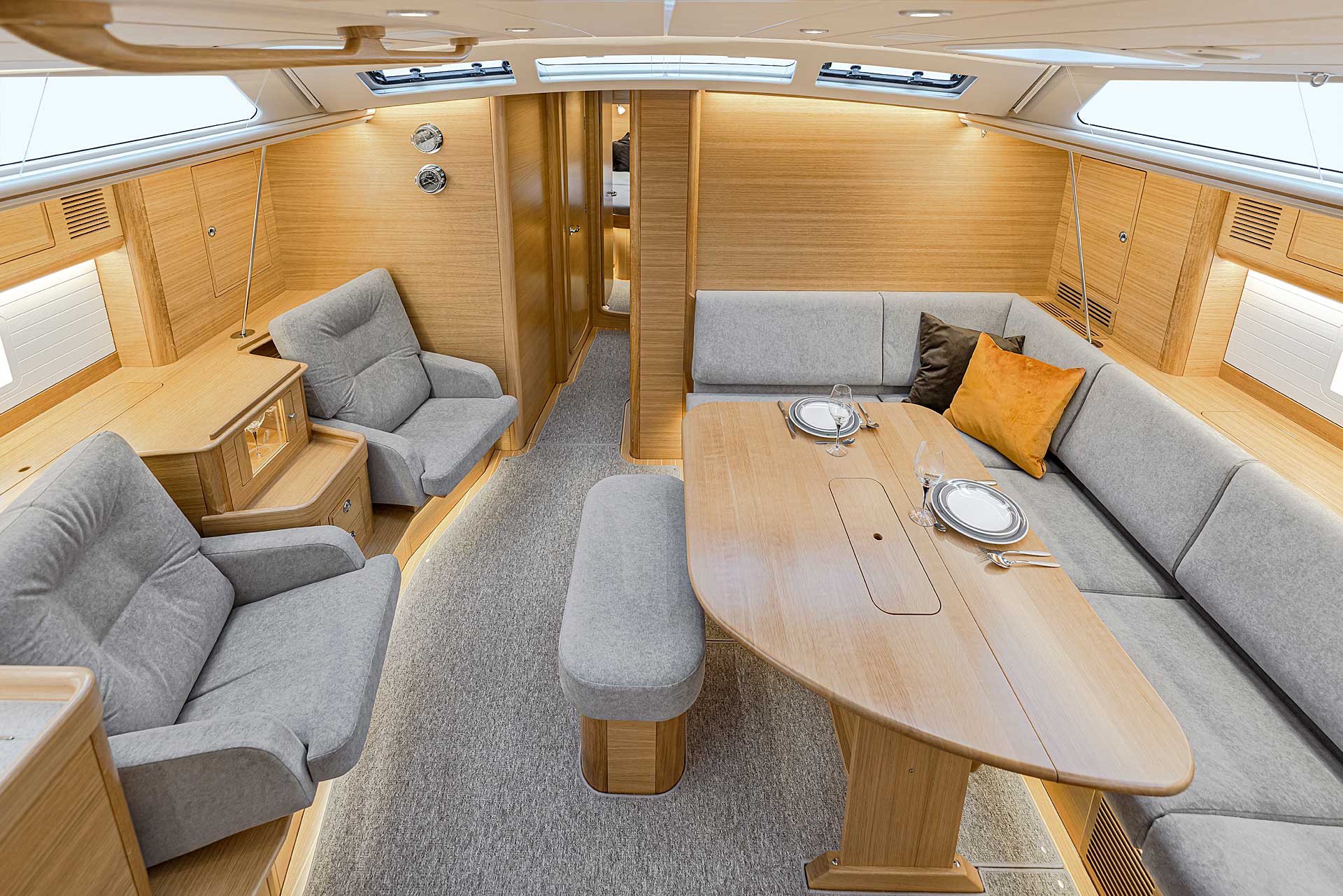

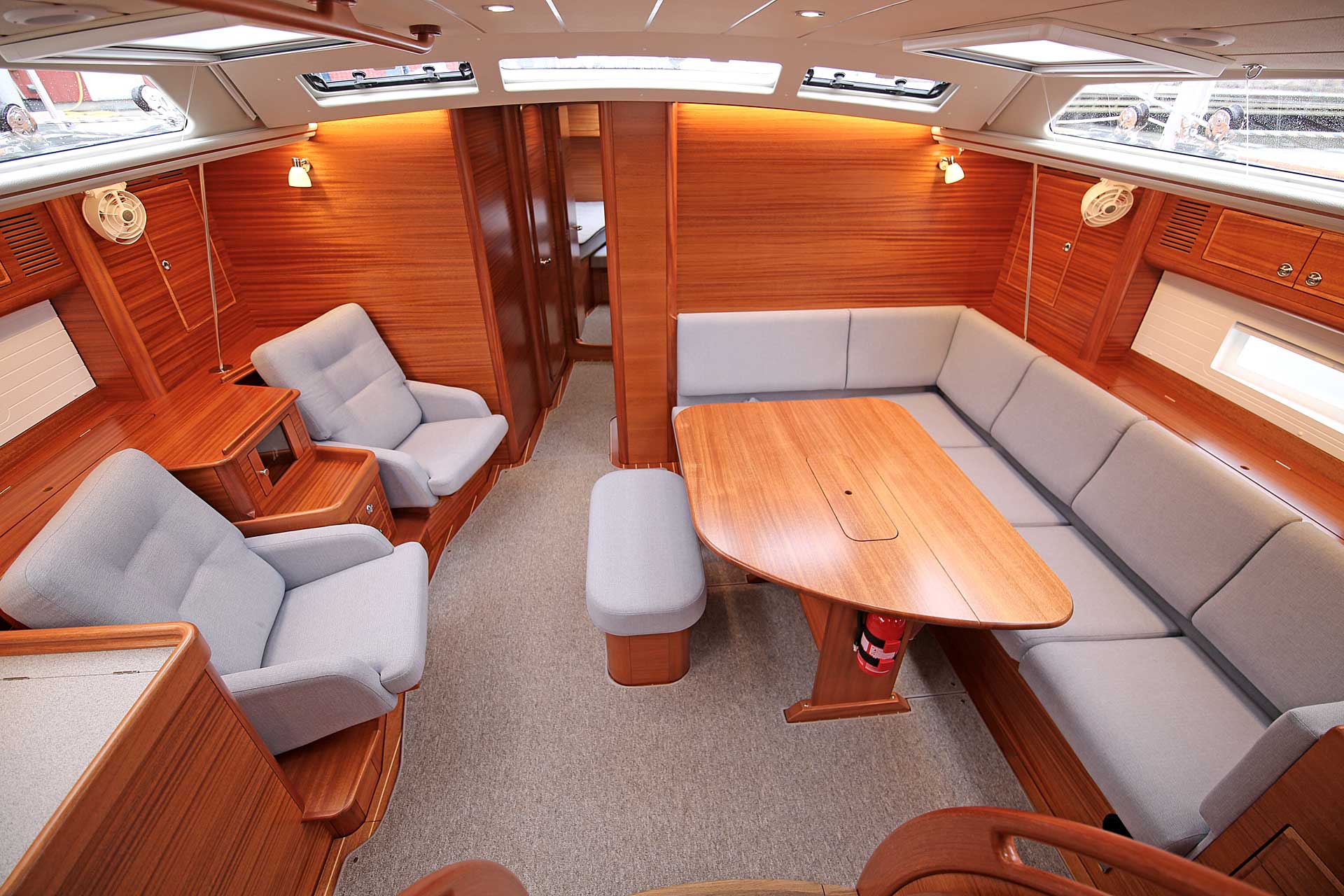

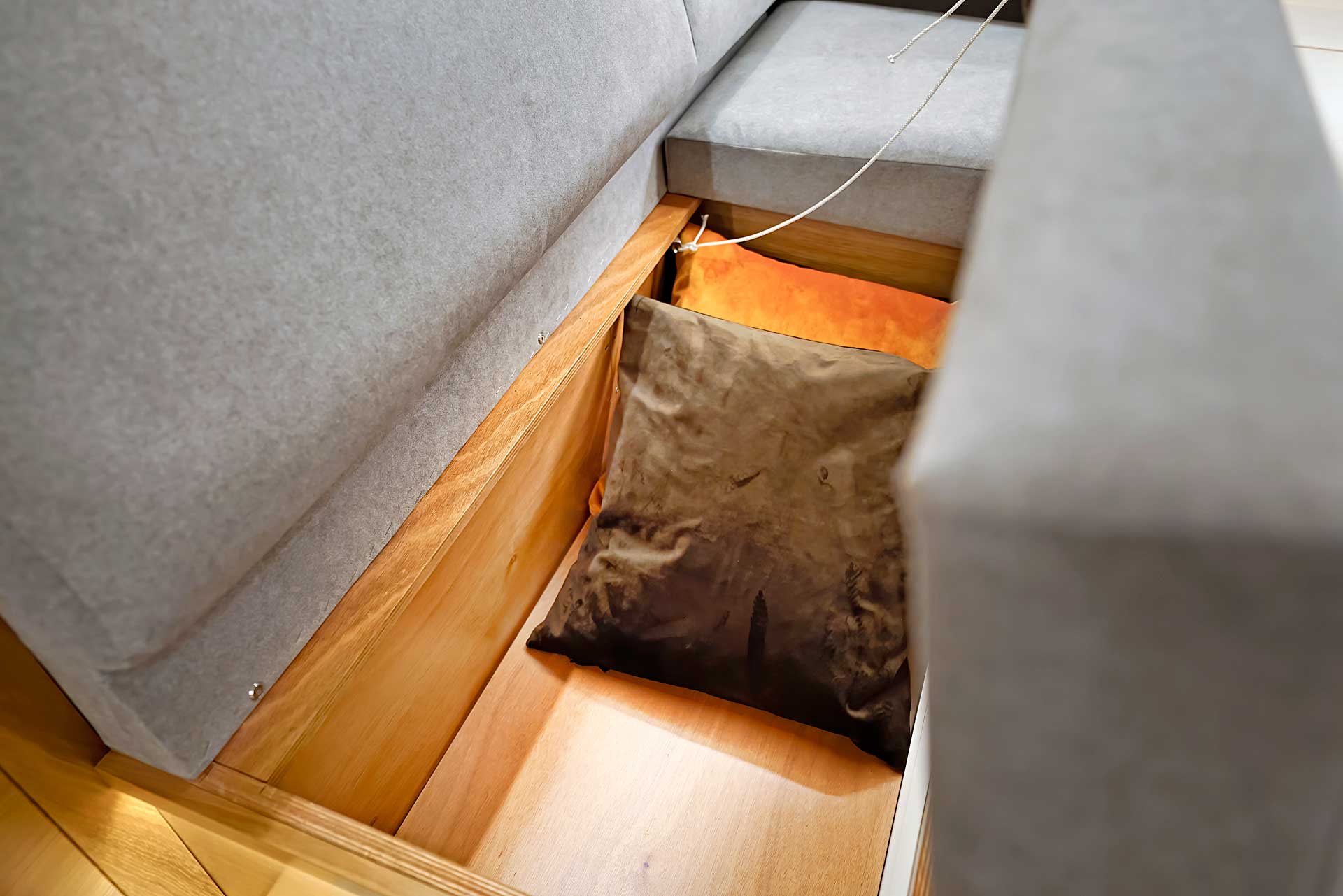

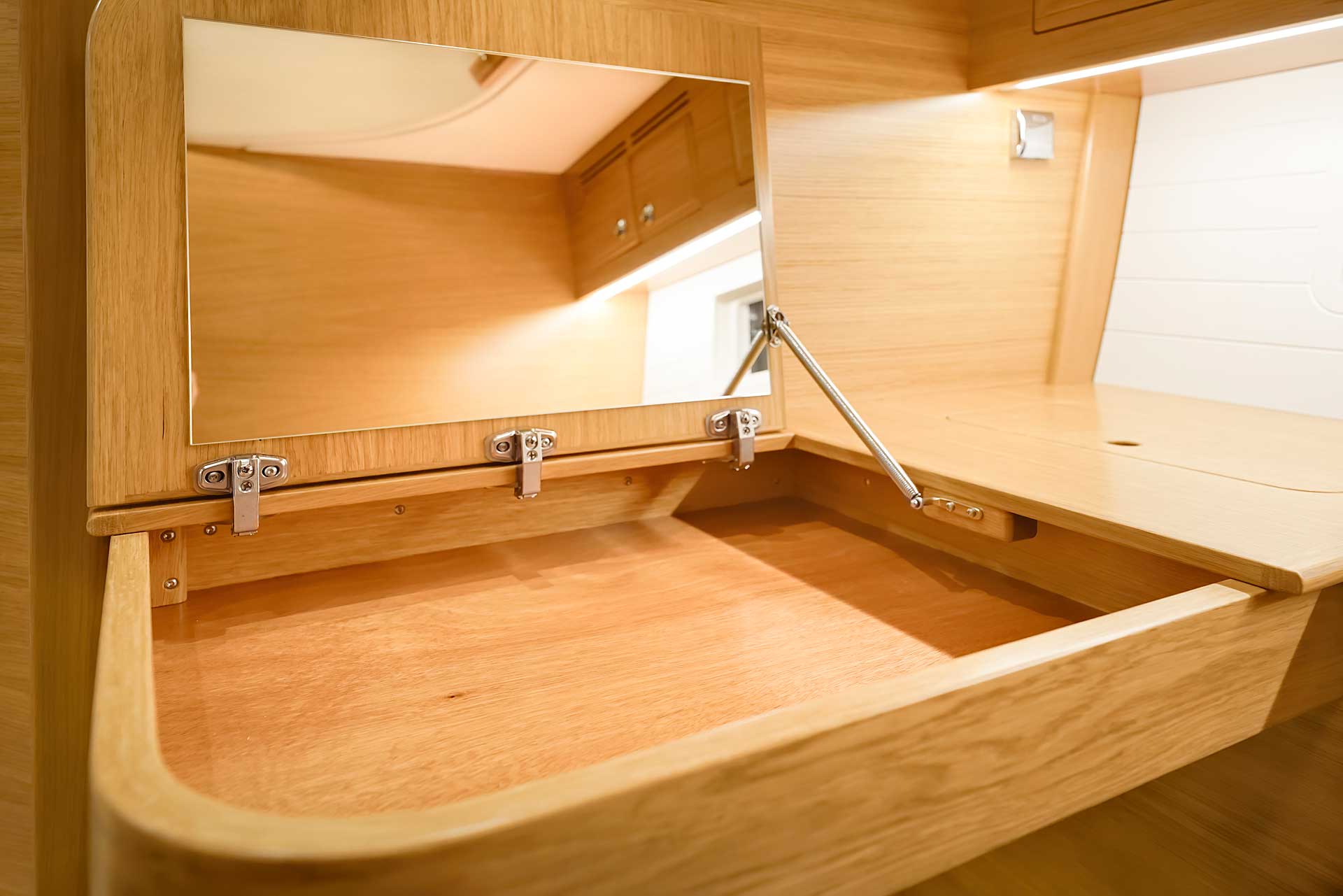

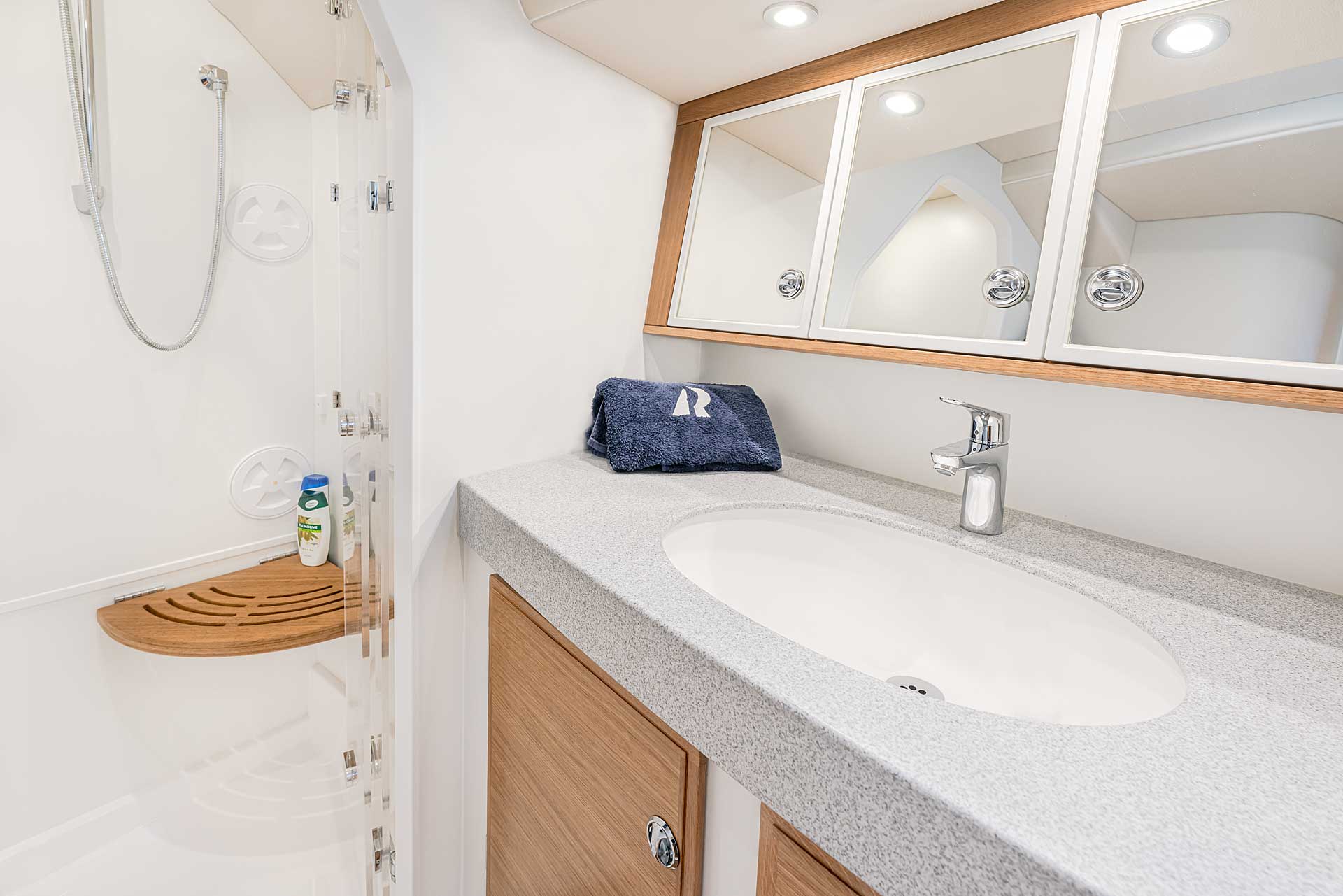

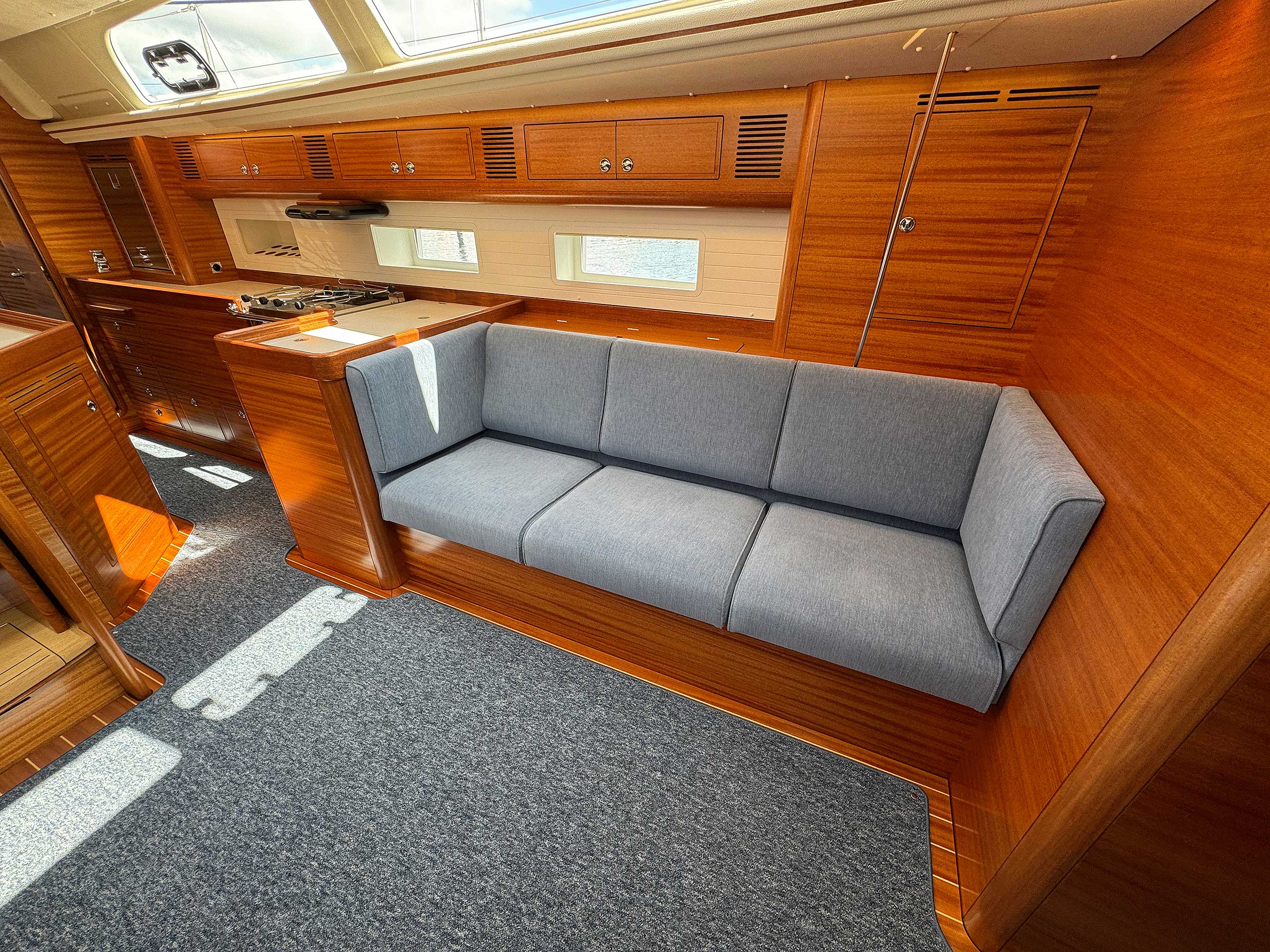

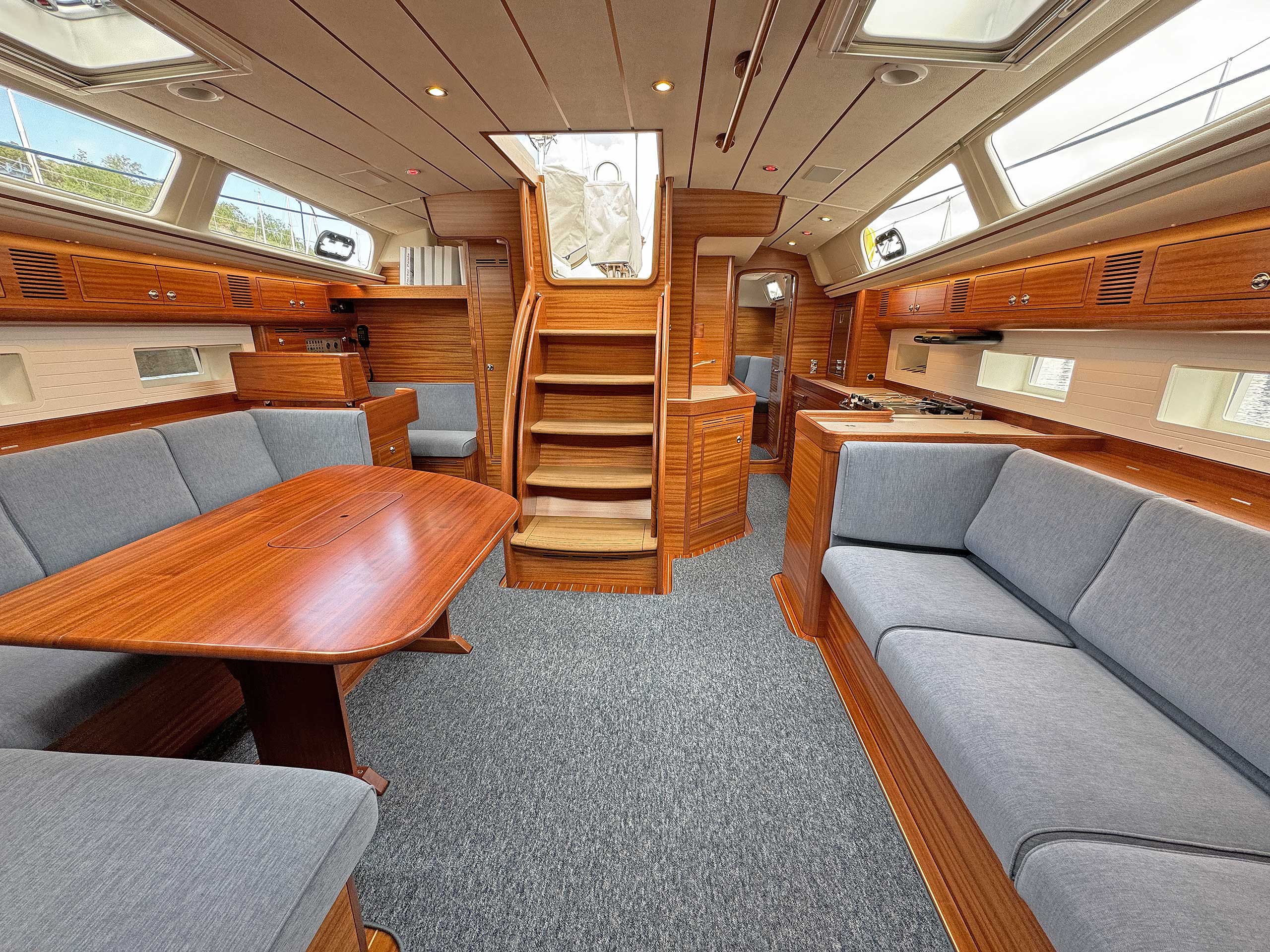

BRIGHT AND AIRY INTERIOR WITH LOTS OF STORAGE

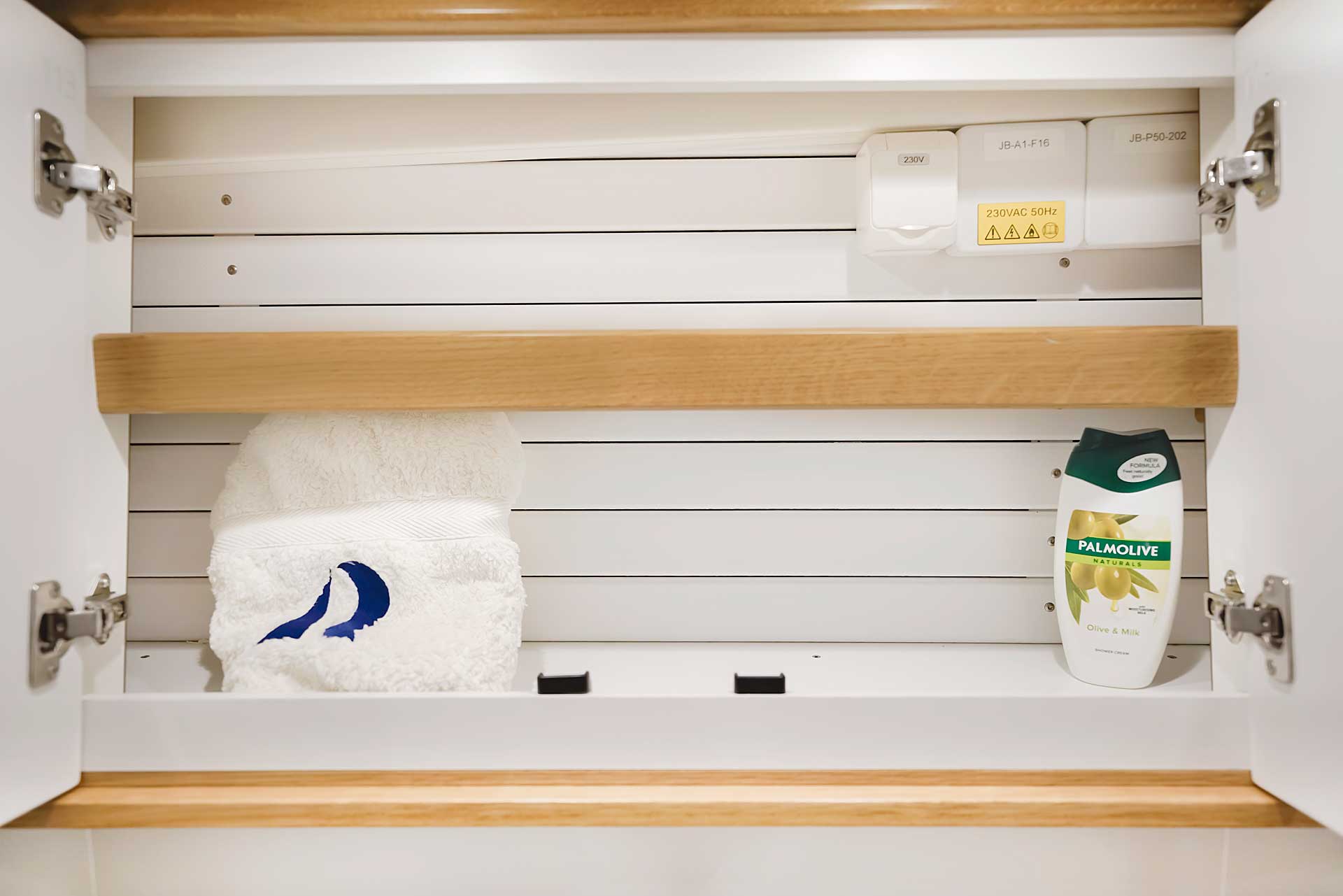

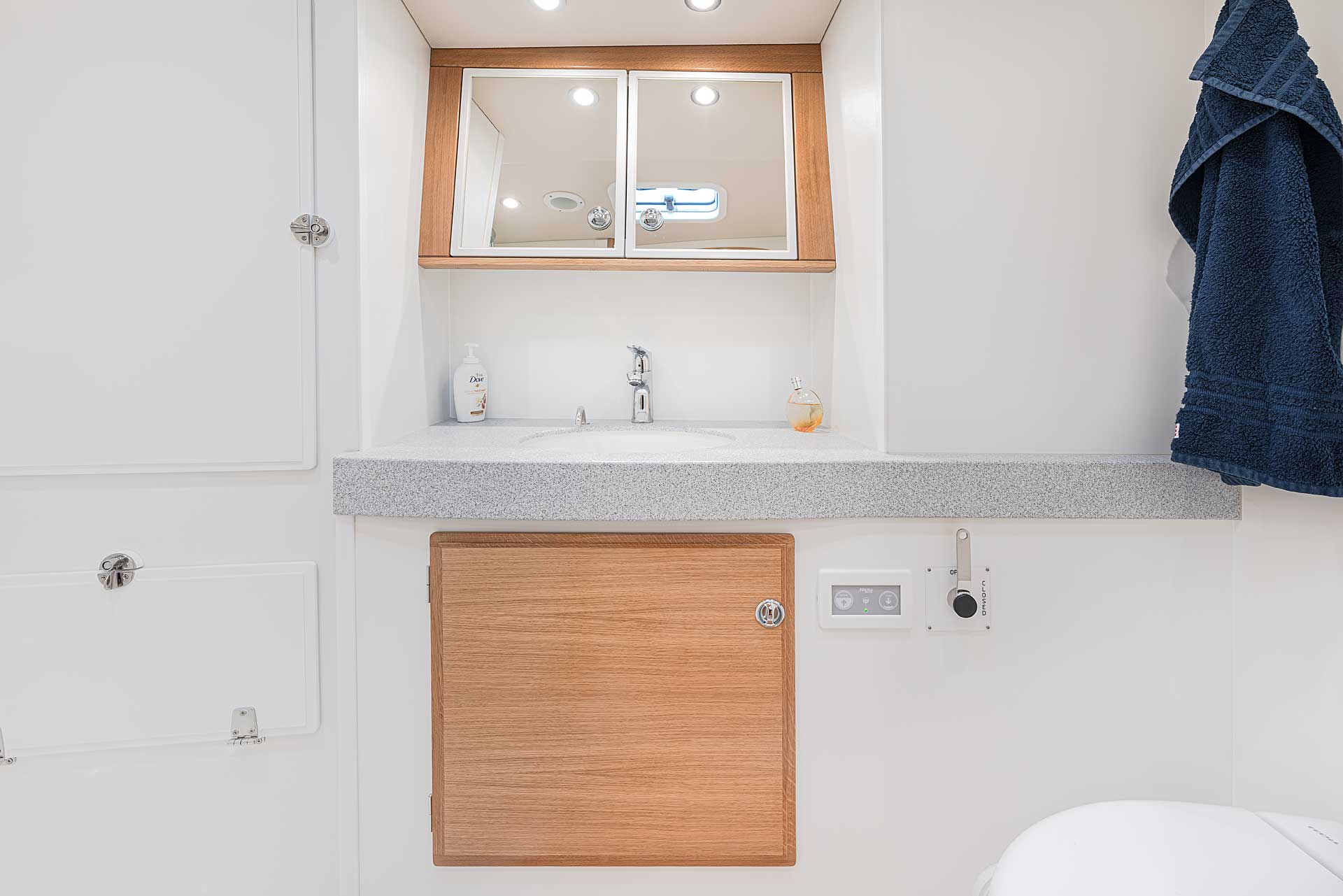

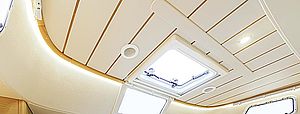

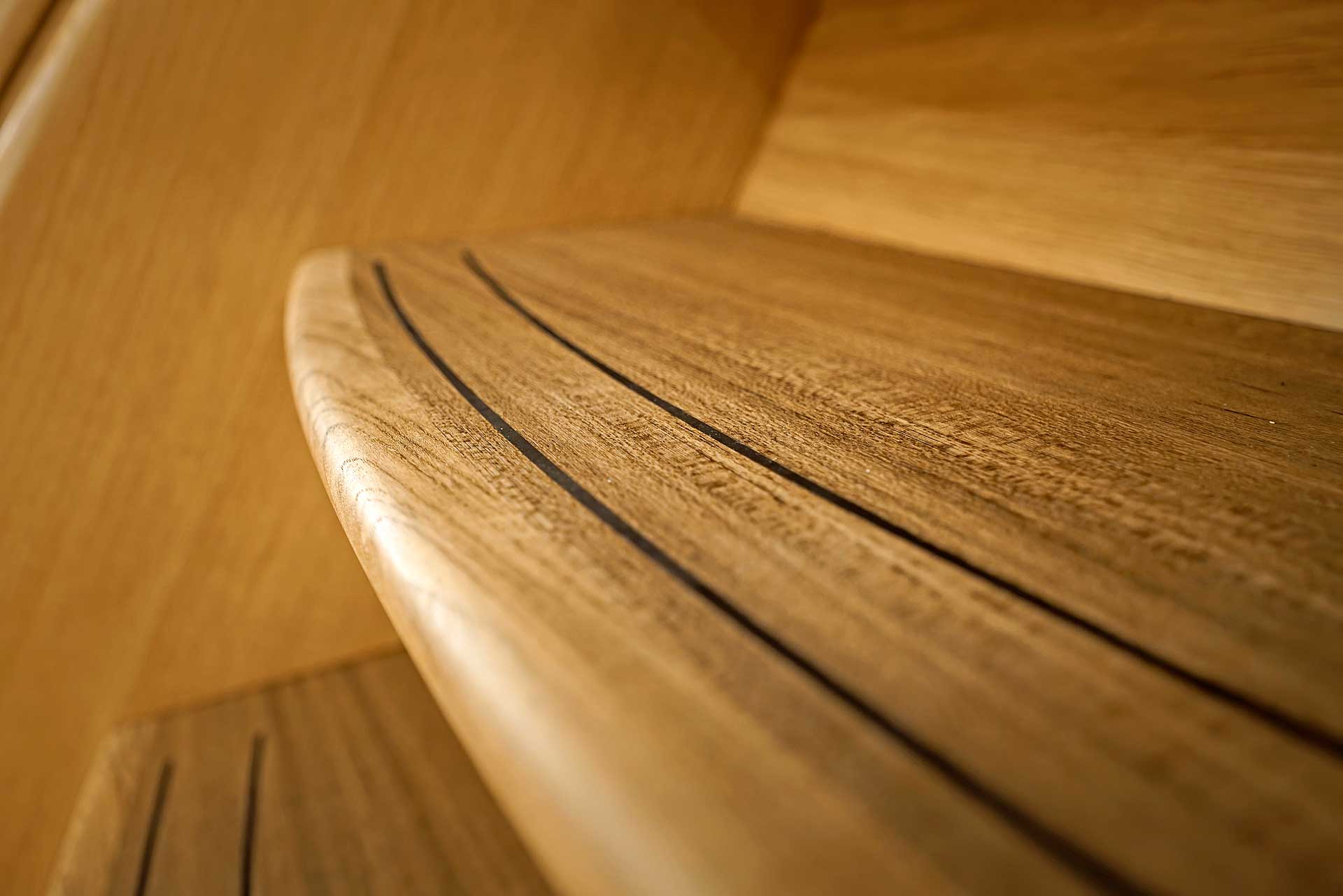

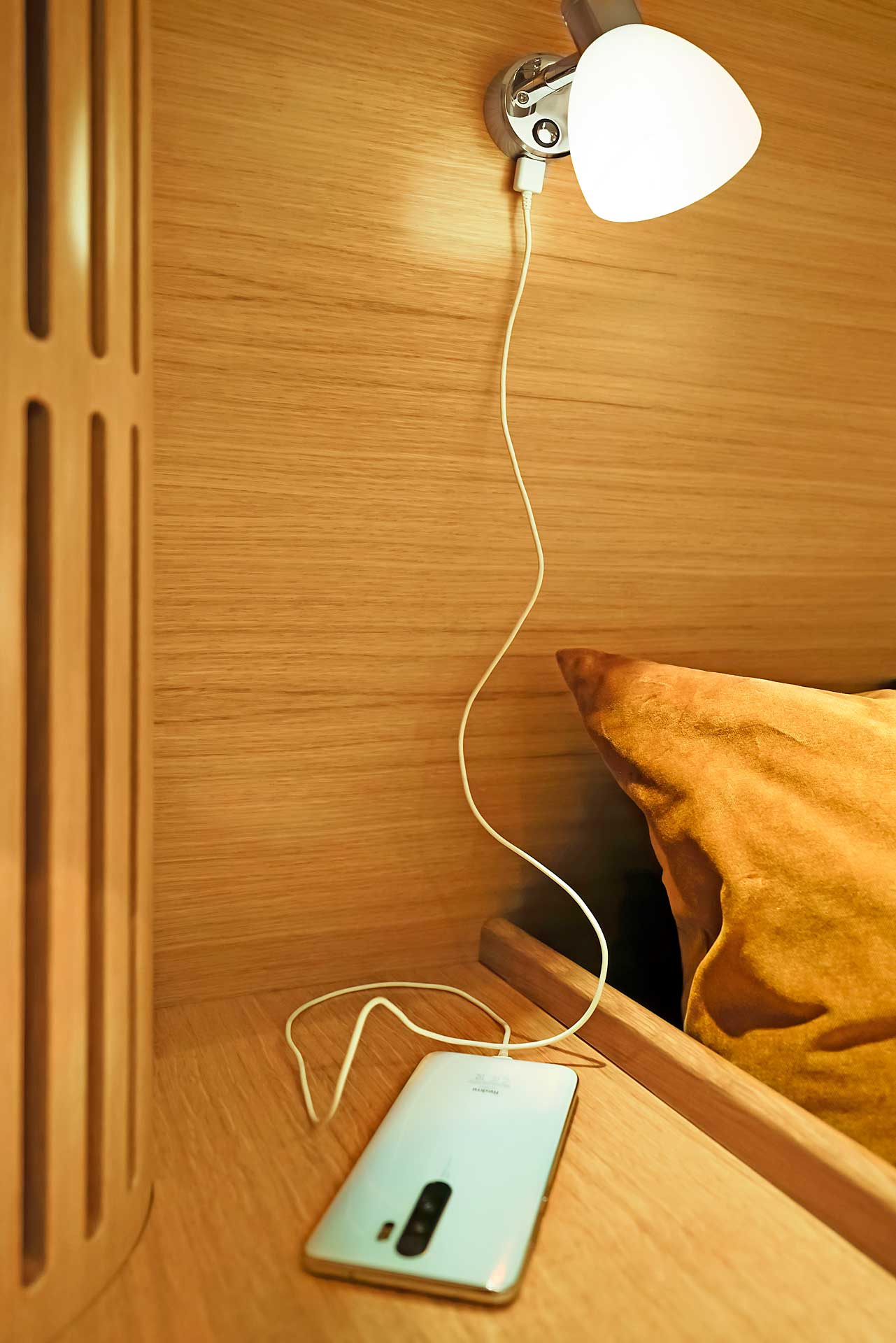

The interior has lots of natural light and indirect led lights as well. There is good ventilation. The layout is generous and roomy, with lots of elbow room. The storage facilities are generous too. The sturdy woodwork has the well renowned Hallberg-Rassy finish.
GENEROUS STANDARD EQUIPMENT

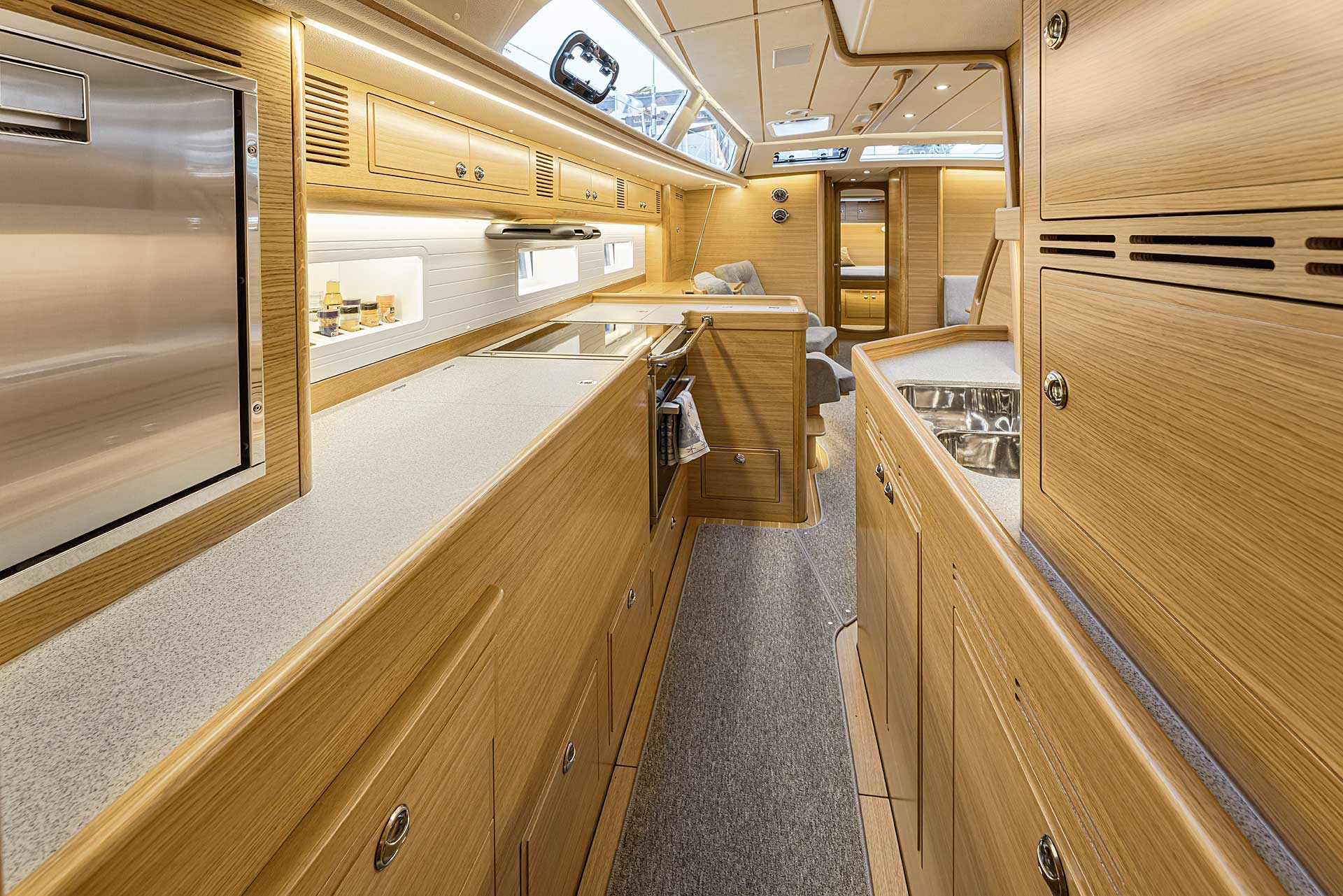

The sail away standard equipment list is very extensive, including for example electric in-mast furling and electric headsail furler, sails, teak deck, retractable bow thruster from Sleipner Side-Power, a 12 kW generator, a 110 HP main engine, electric cooking, fridge and freezer, launching and rigging at the yard, antifouling, fenders, mooring lines and a lot more.

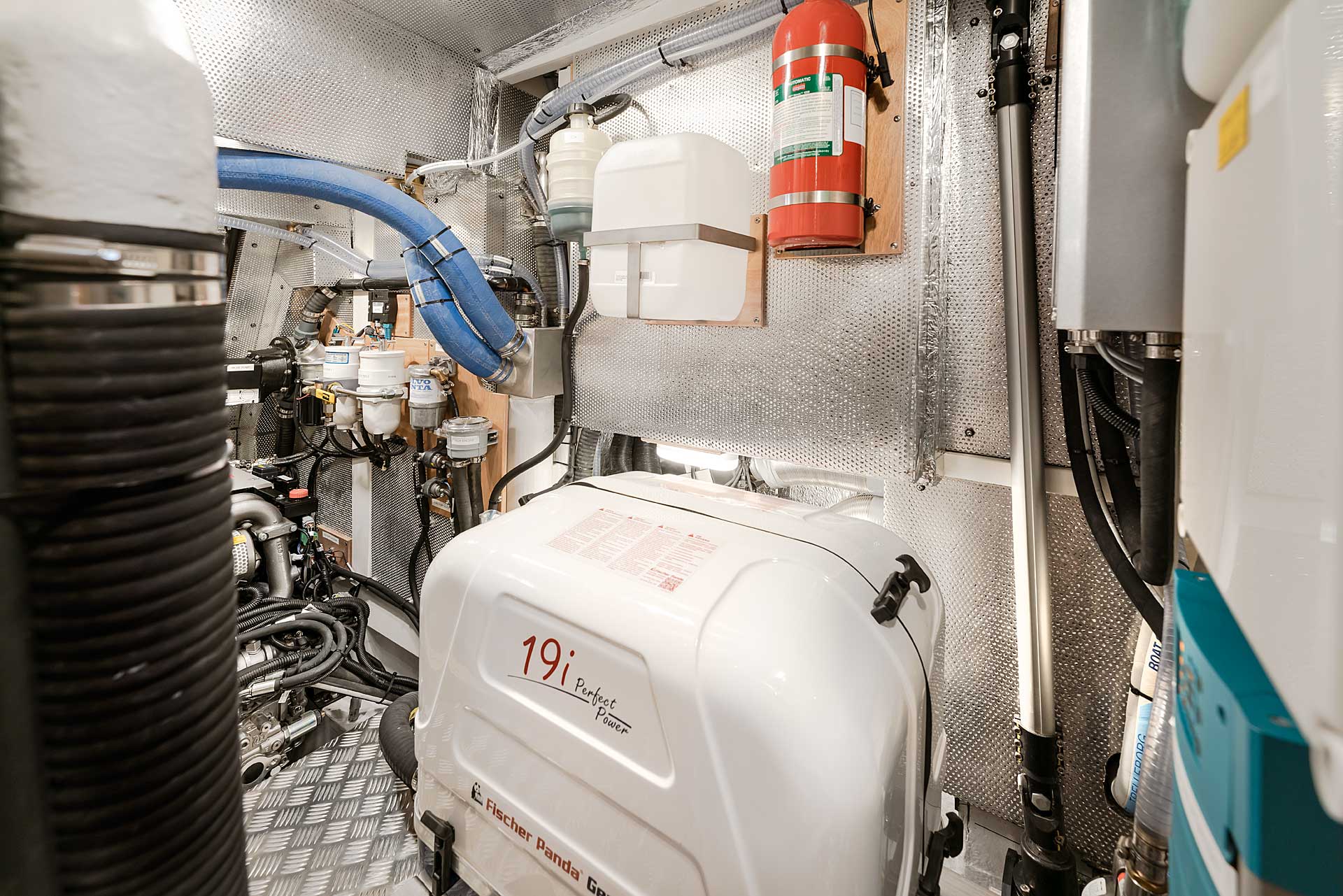

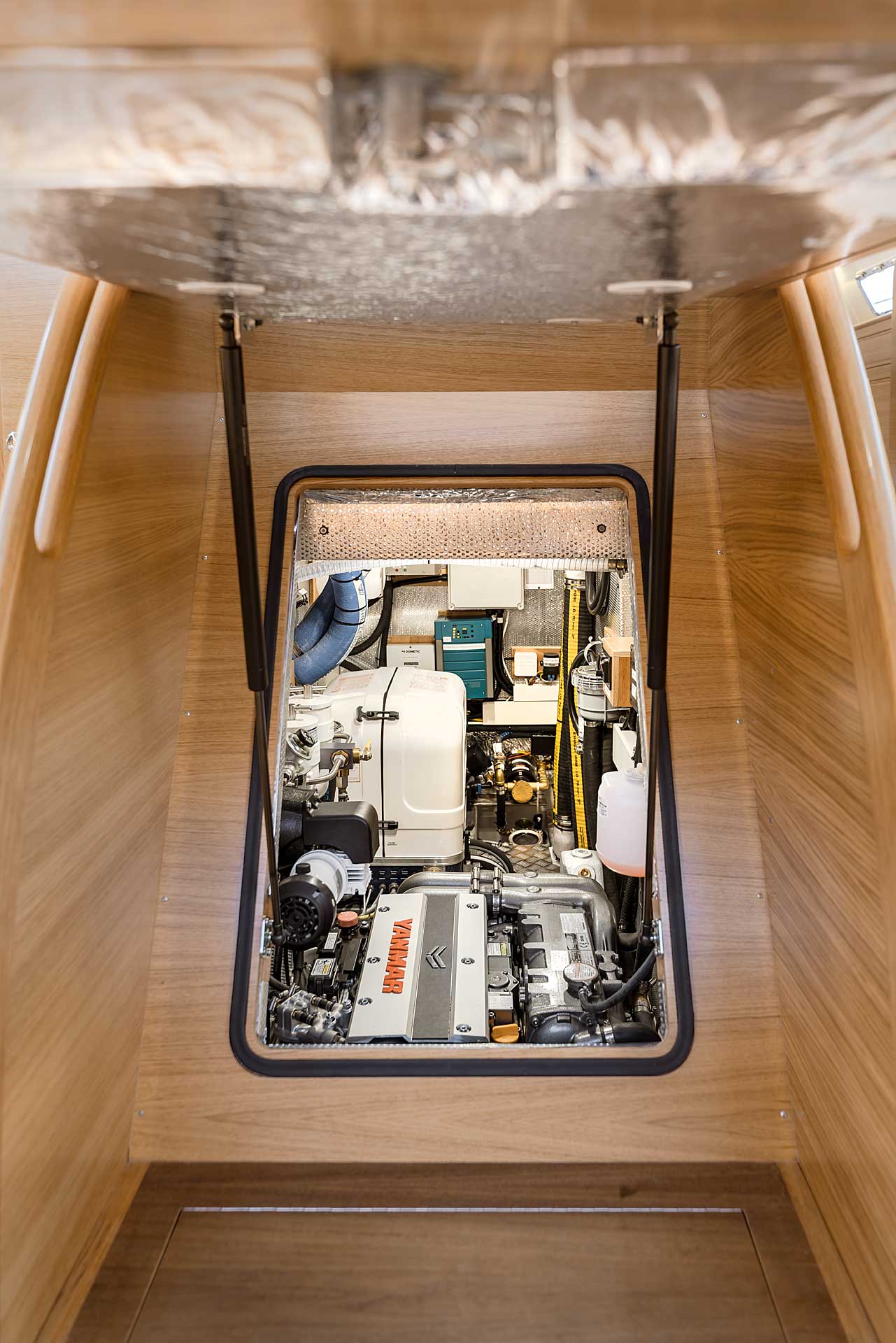

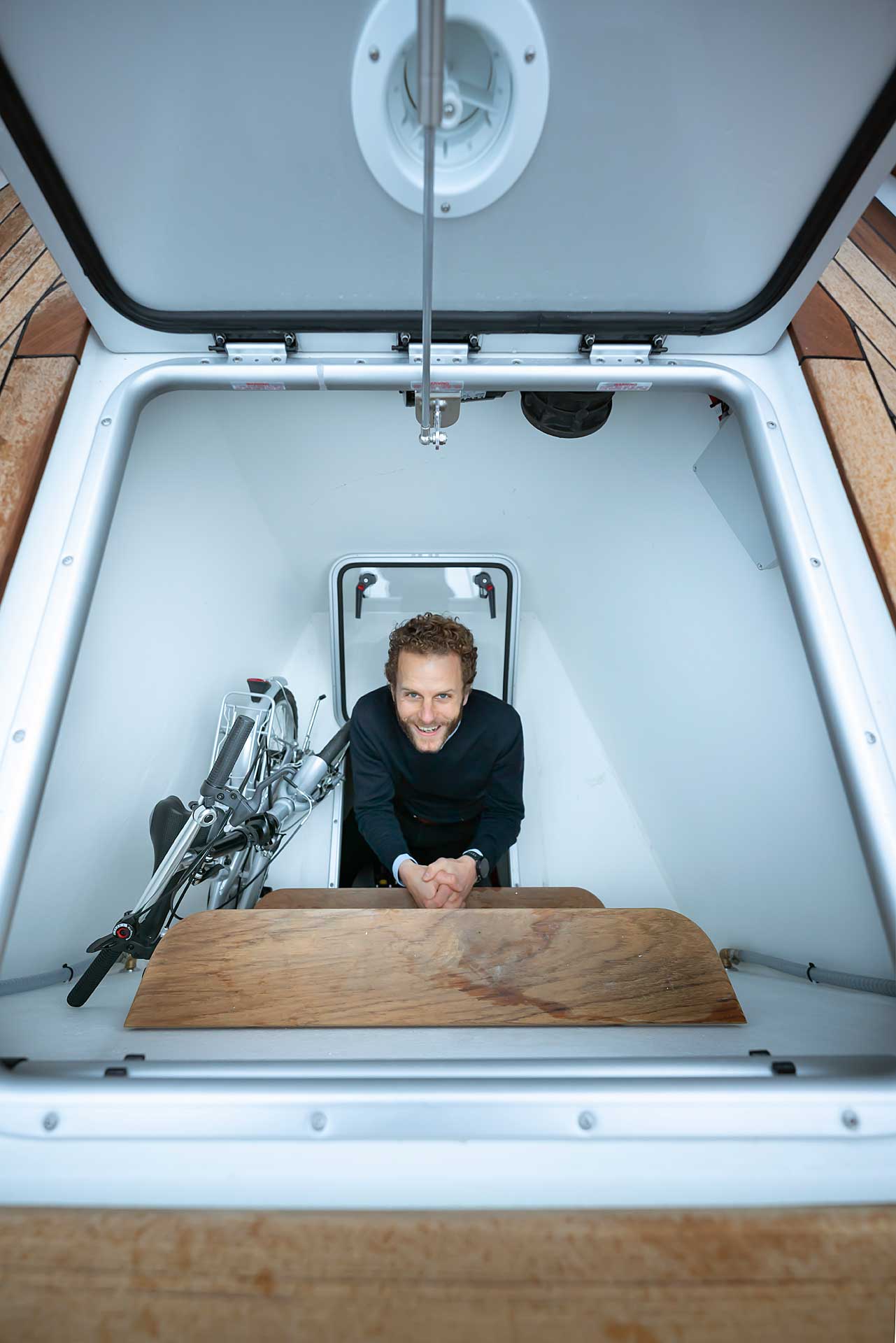

WALK-IN ENGINE ROOM

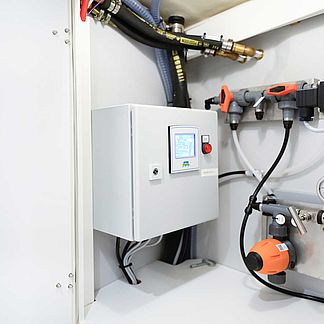

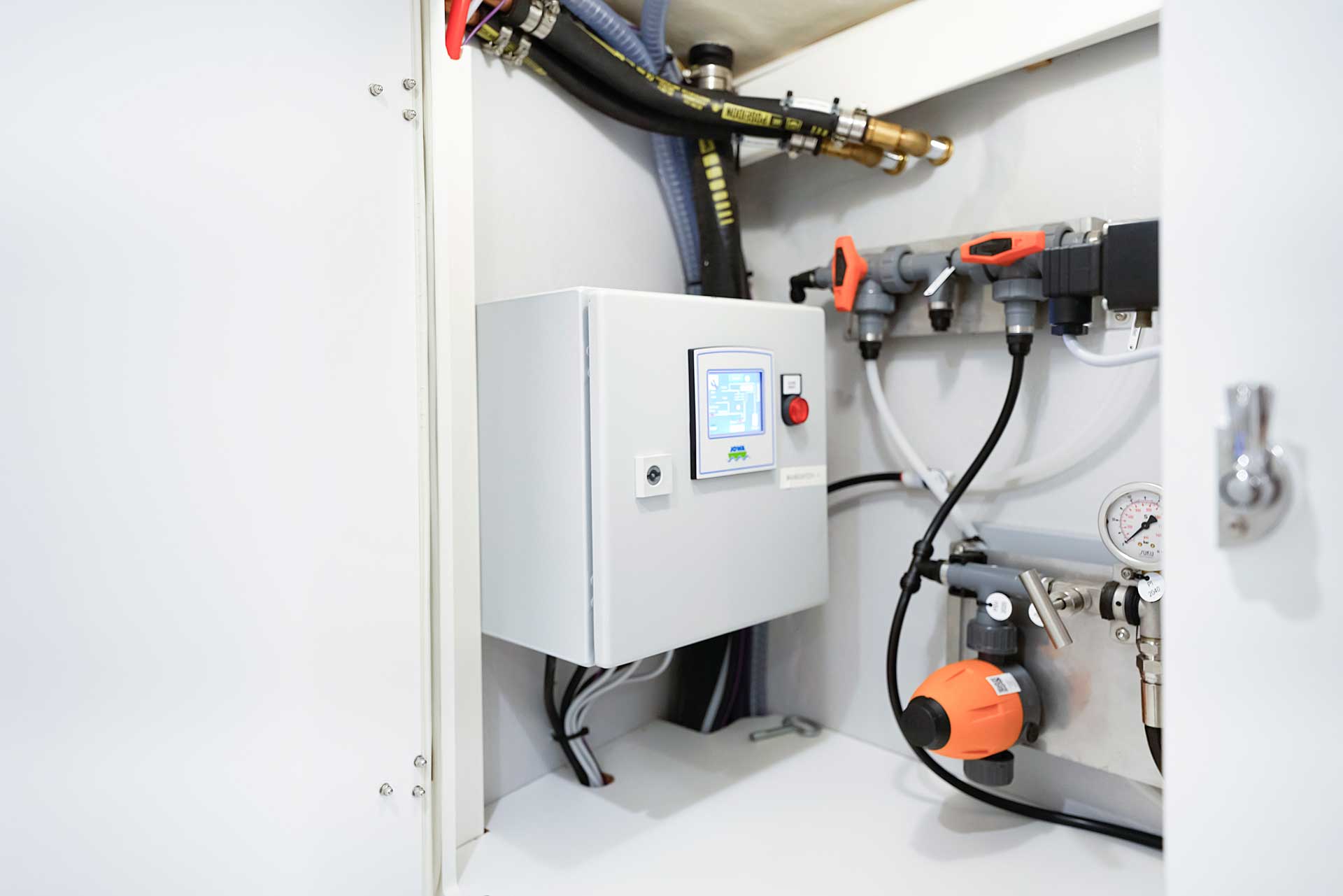

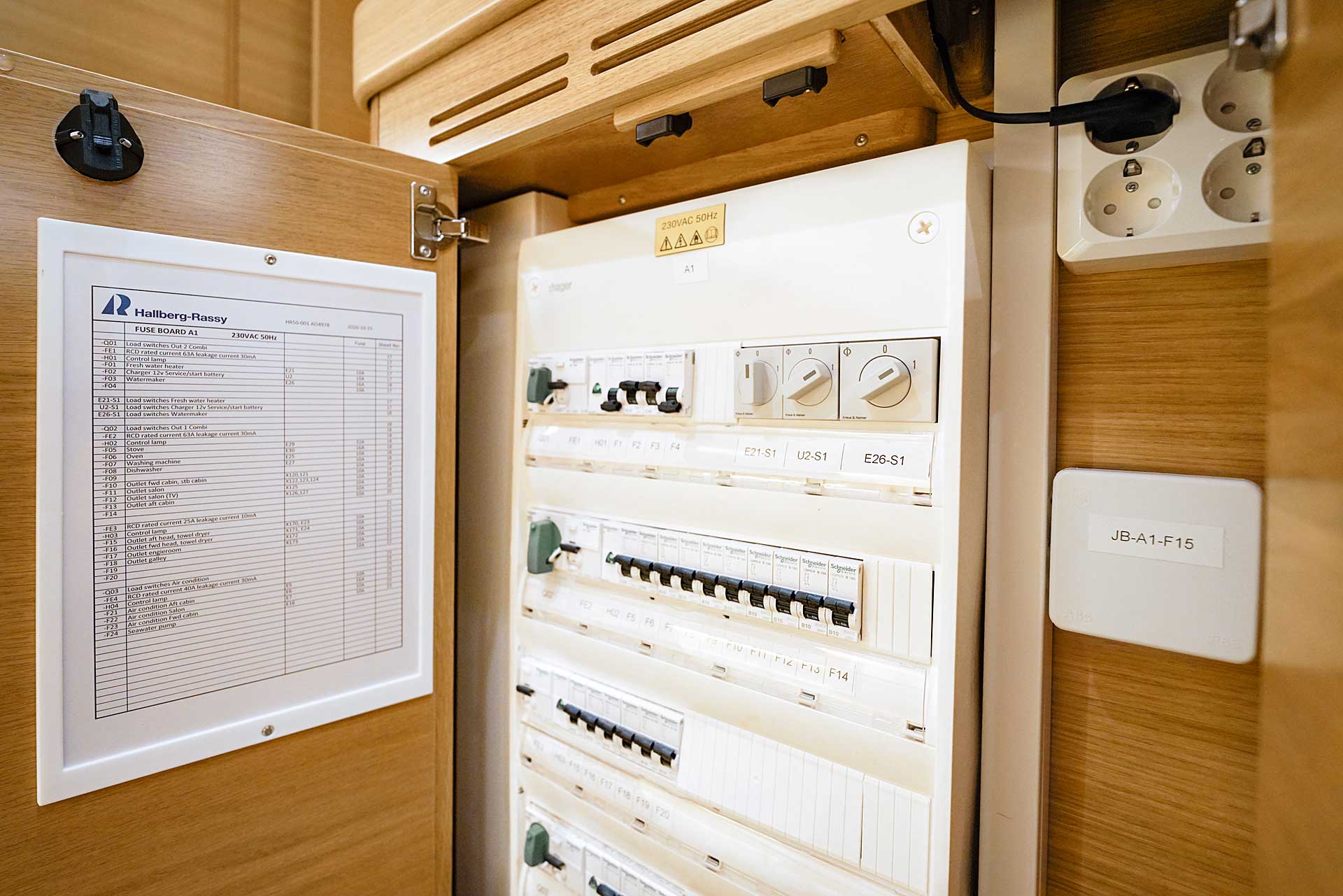

There is a large walk-in engine room. Easy access, easy maintenance and careful sound insulation covered by aluminium linings. There is access from a big door on the port side, as well as a lifting stair in front and a removable panel in the aft end of the engine room. Furthermore, the floor in the cockpit is bolted and removable. In the engine room the technical equipment is found: a powerful common rail main engine, the generator with sound shield, pumps, filters, double heaters, AquaDrive flexible coupling to take up the loads from the engine shaft and further lower vibrations and noise. The engine room lighting is 24 v, and there is also a powerful optional 230 v led light. The Mastervolt Combi Pro charger/inverter automatically and quickly changes between shore power and inverter, depending on what is available.

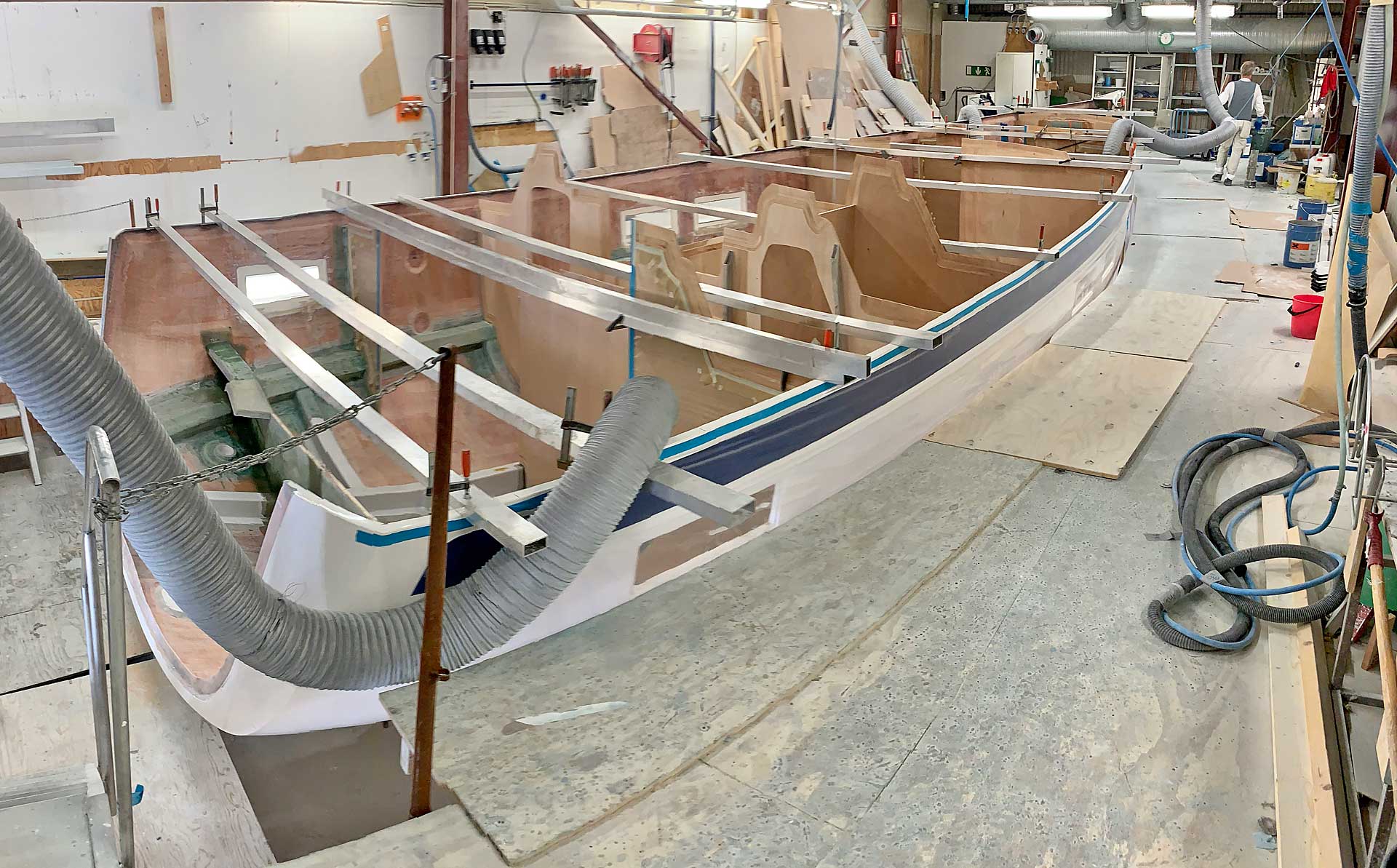

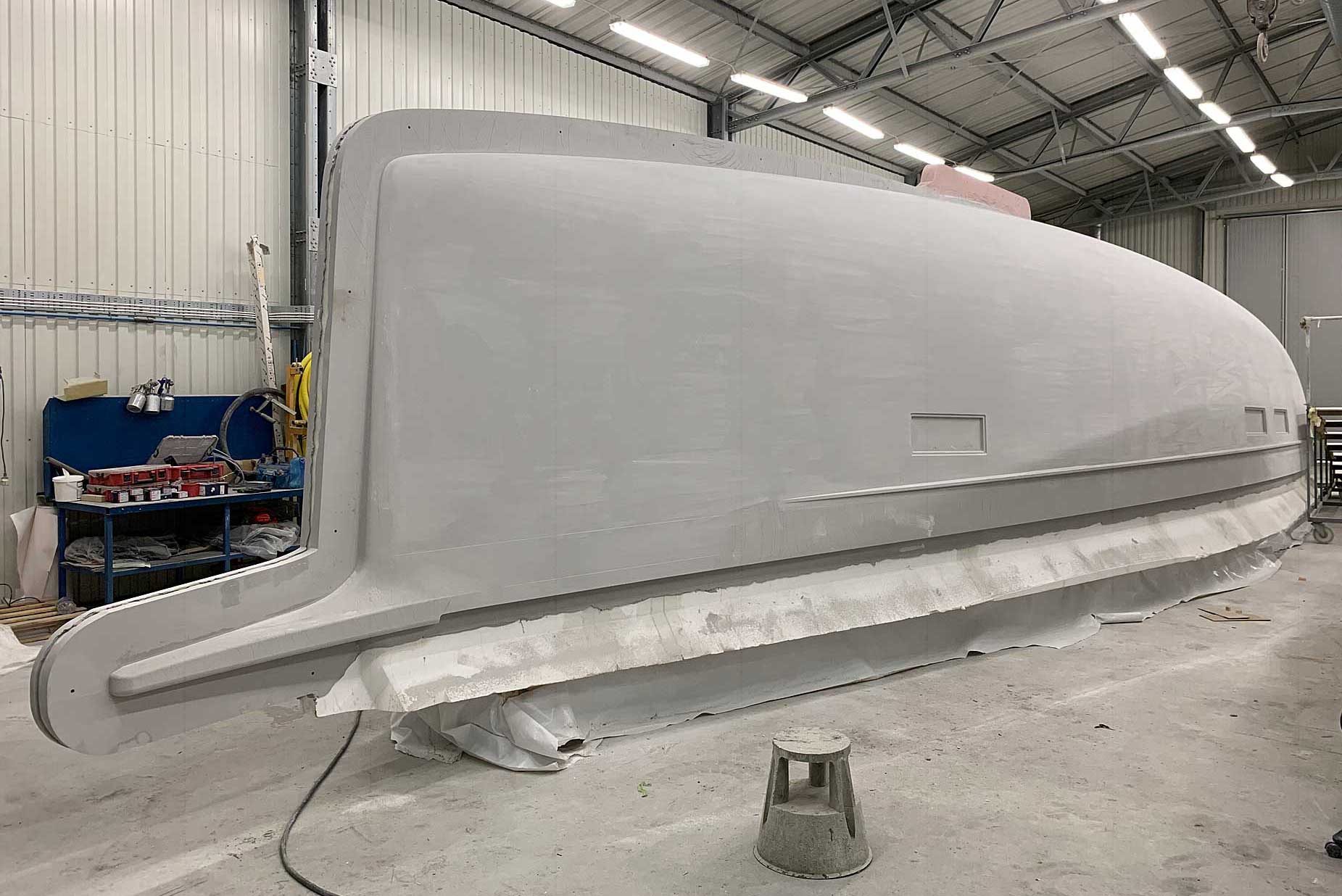

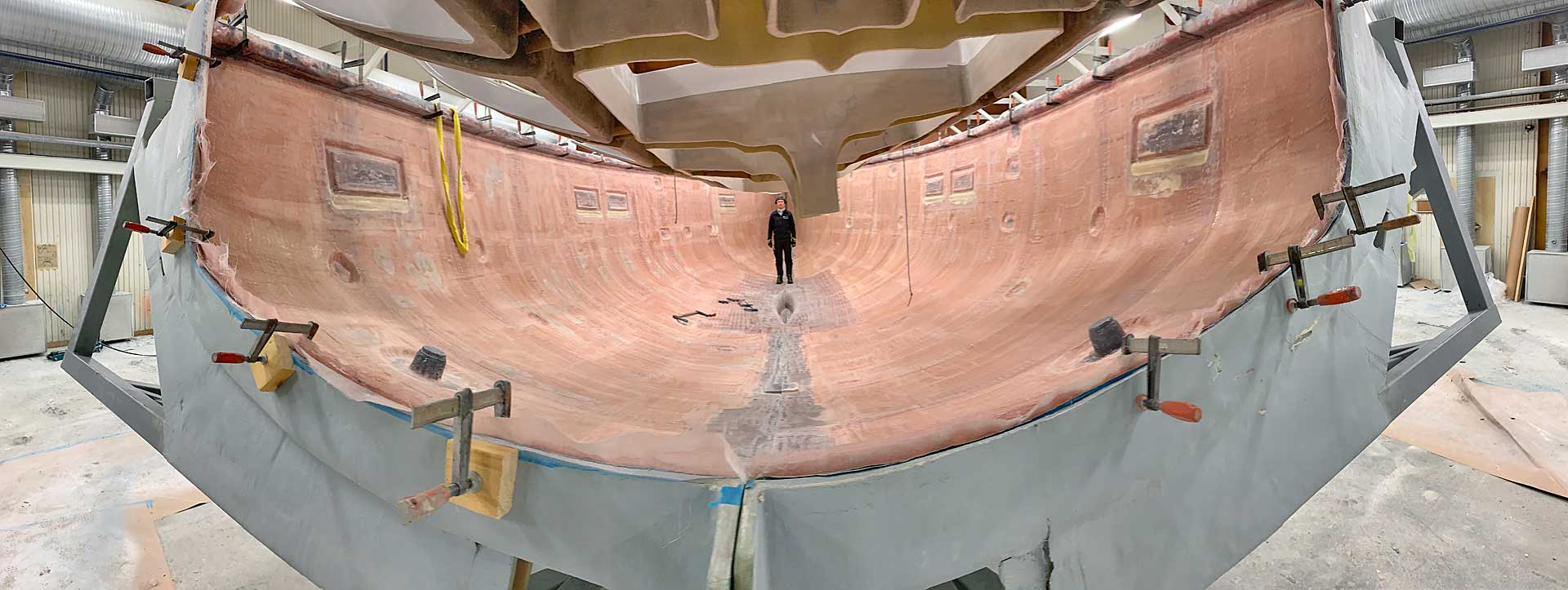

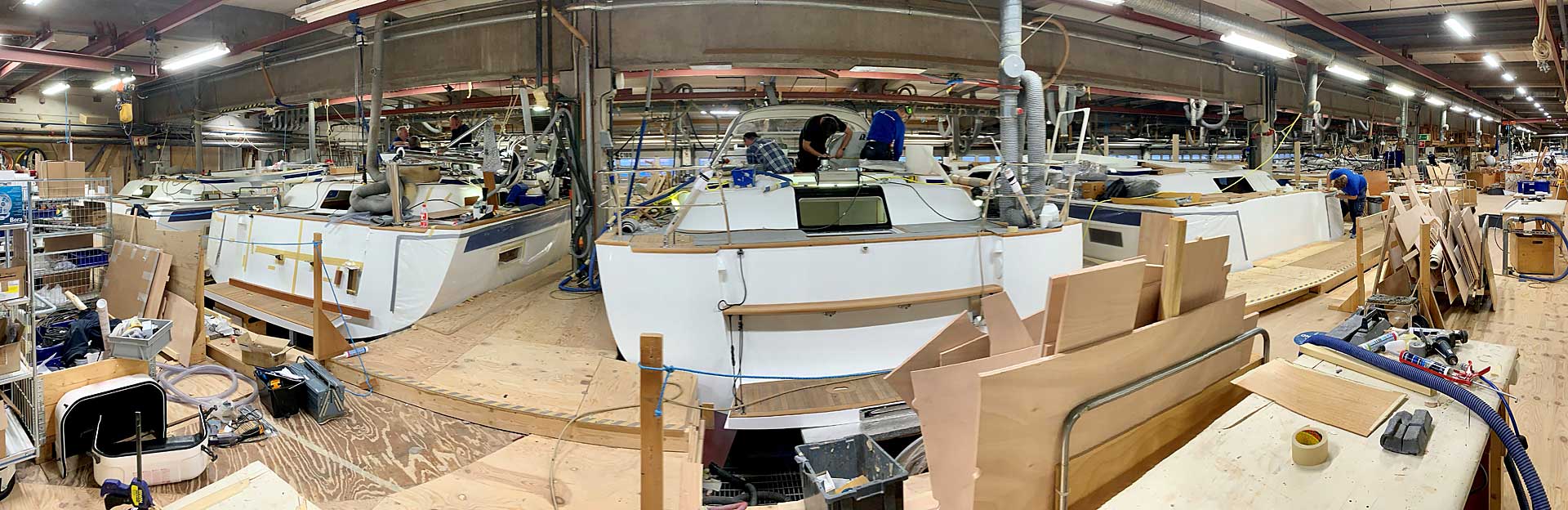

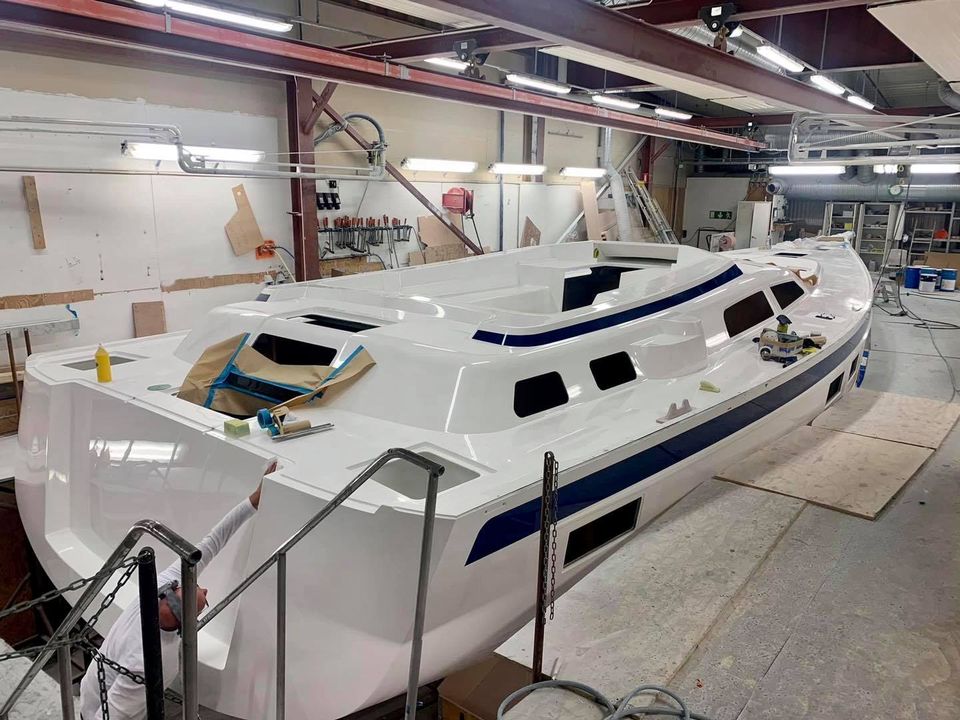

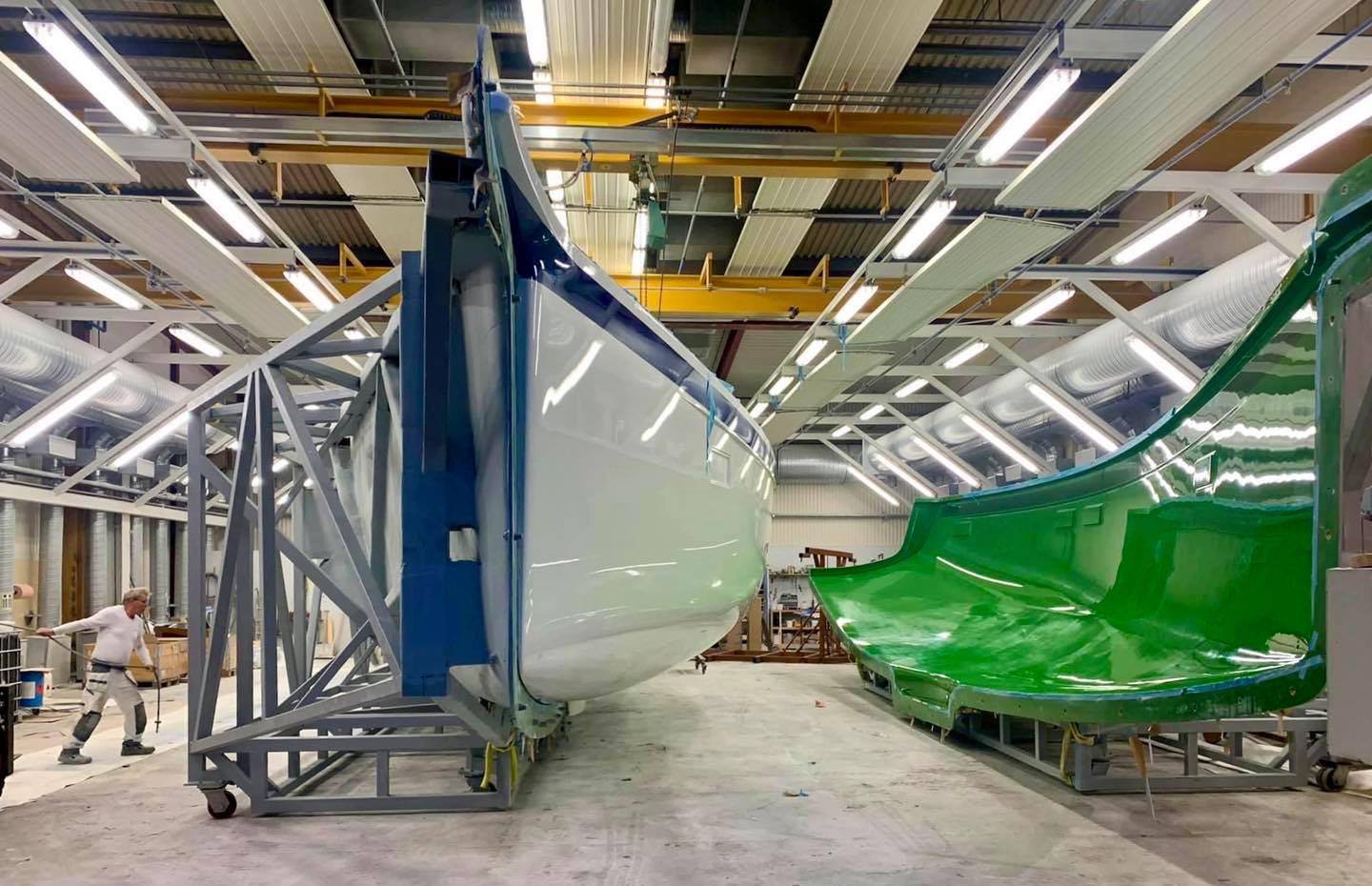

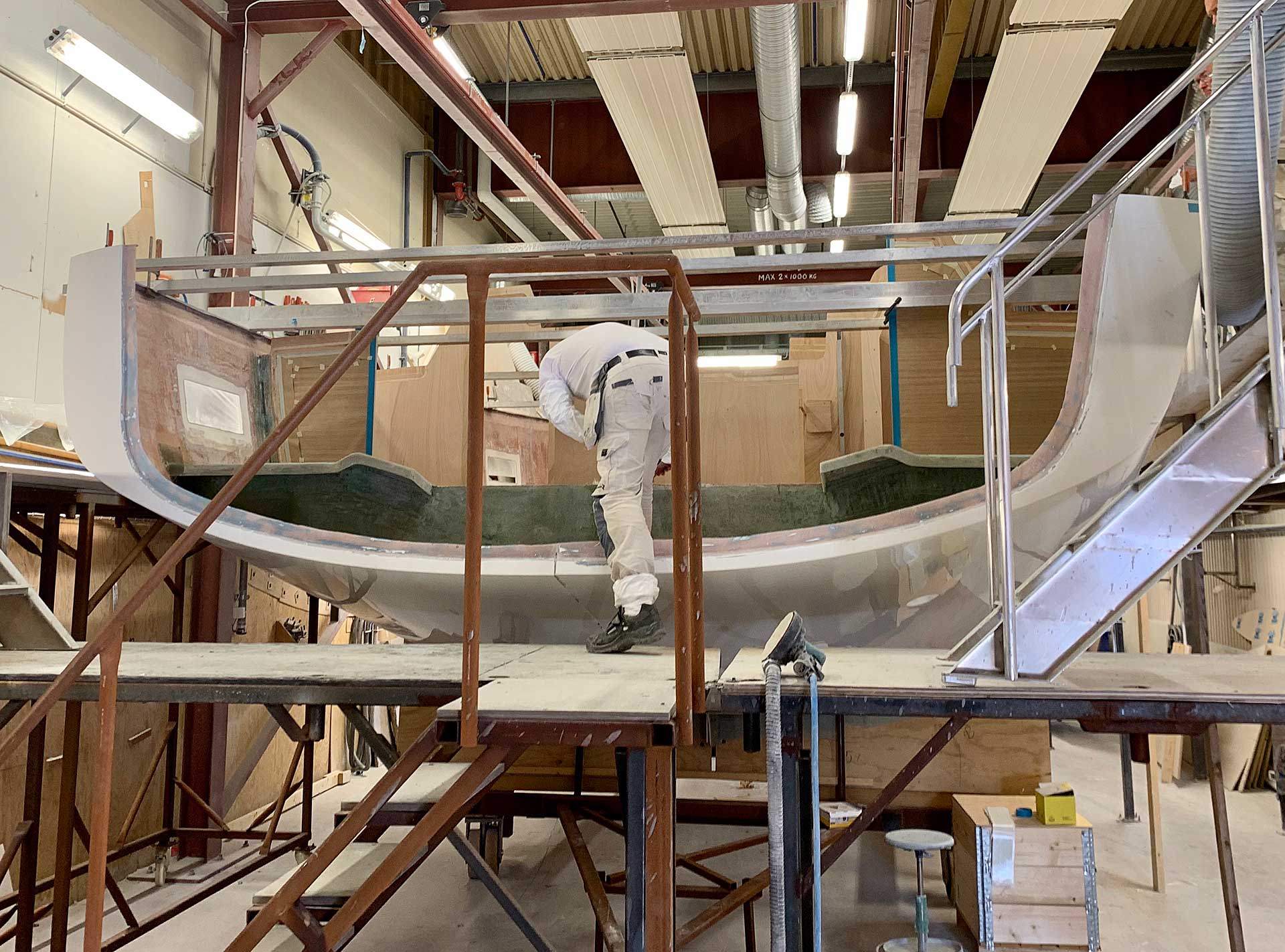

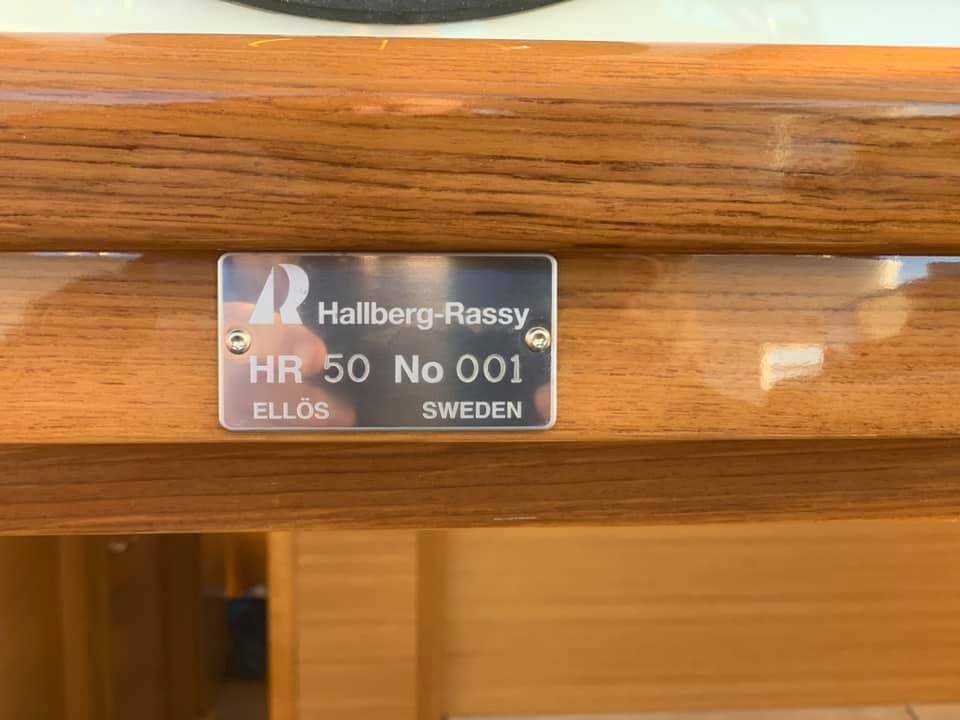

Four Hallberg-Rassy 50 in production

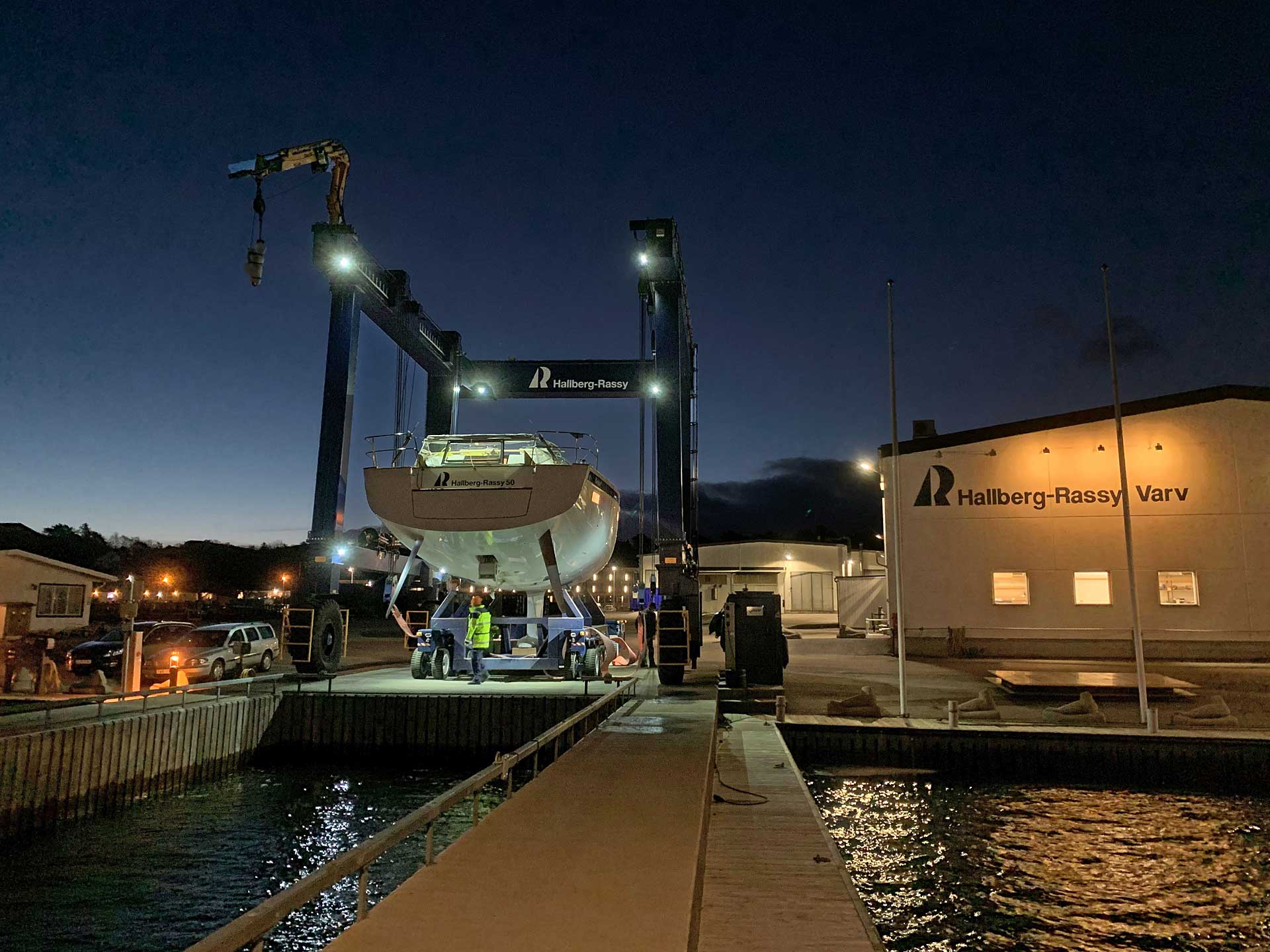

AVAILABLE NOW FOR VIEWING AT THE YARD
The first four units of the all-new Hallberg-Rassy 50 are already in production, and the first fully finished boat is available at the yard from January 2021.
360 DEGREES VIRTUAL REALITY VIEWS
To see a 360 degrees virtual reality views of the Hallberg-Rassy 50 please follow the links below.
Sixteen 360 degrees views »

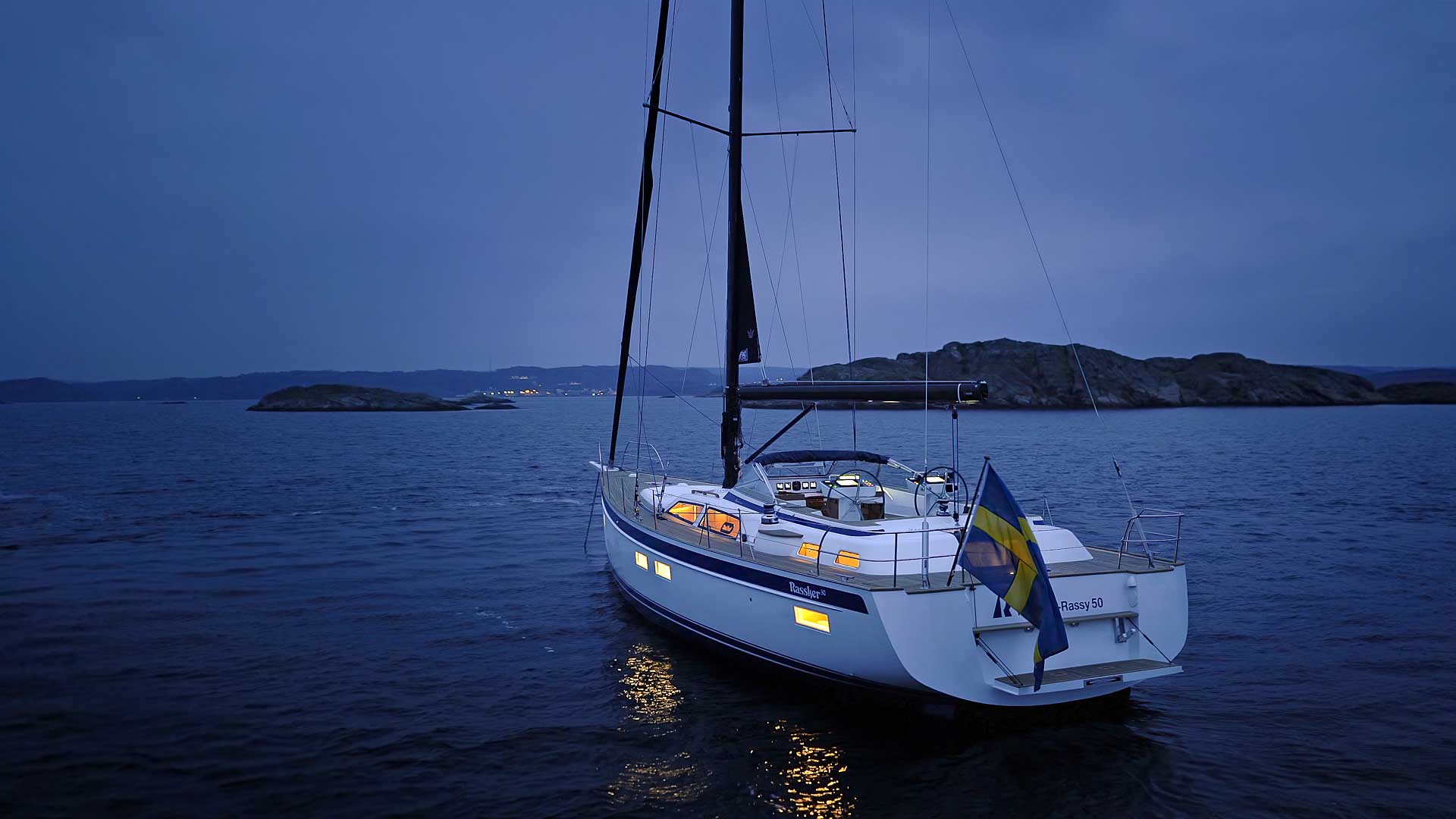

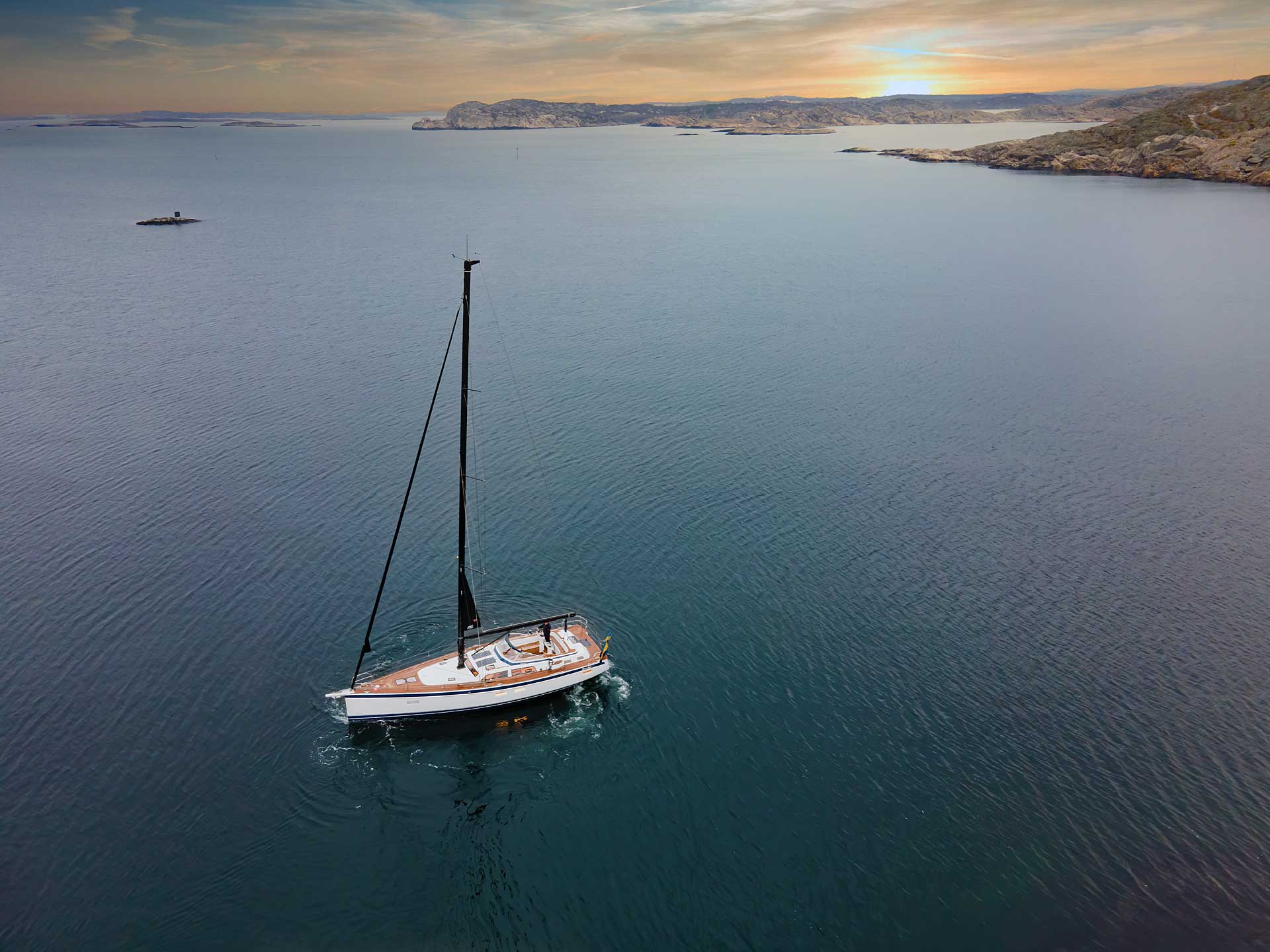

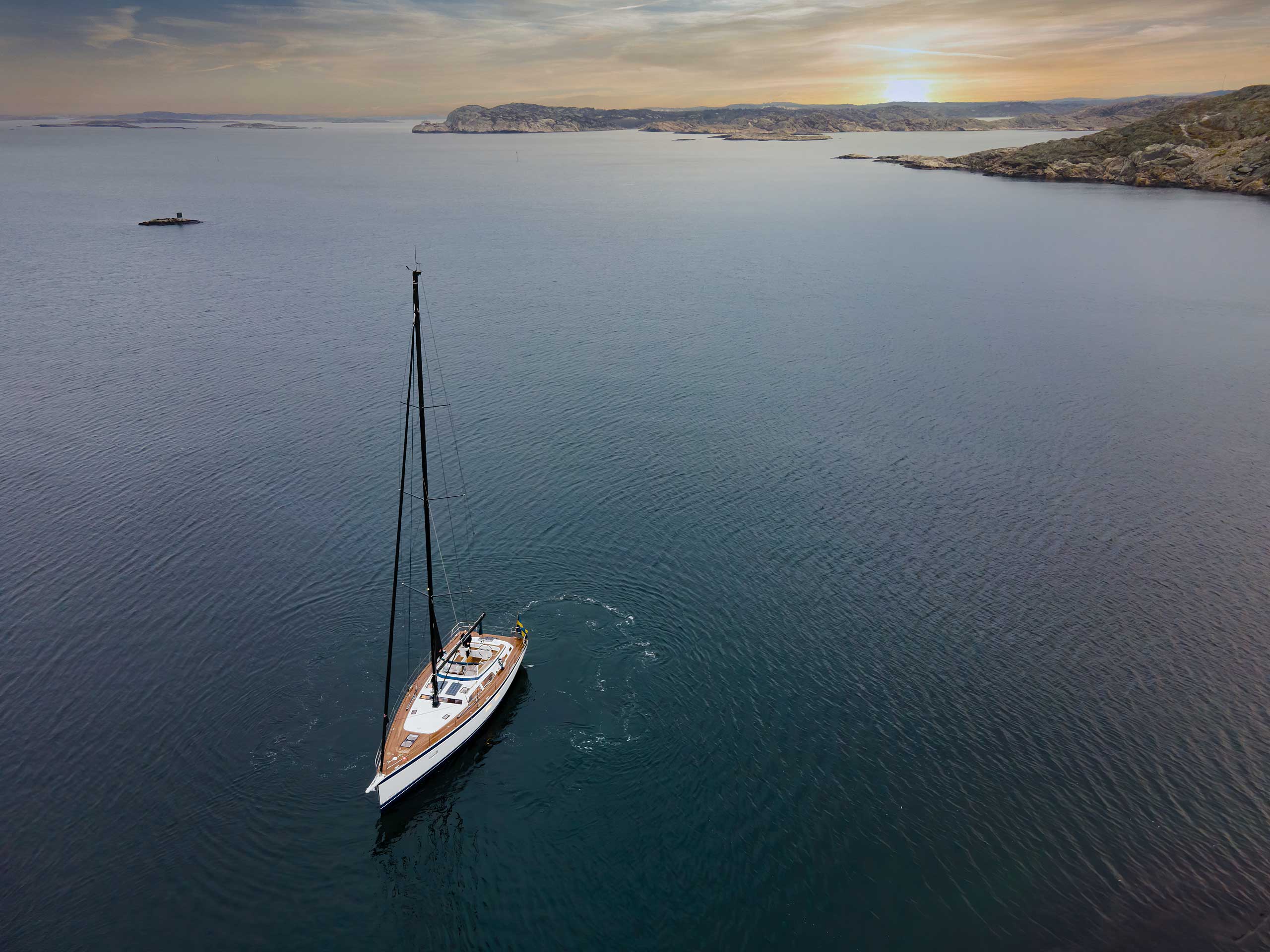

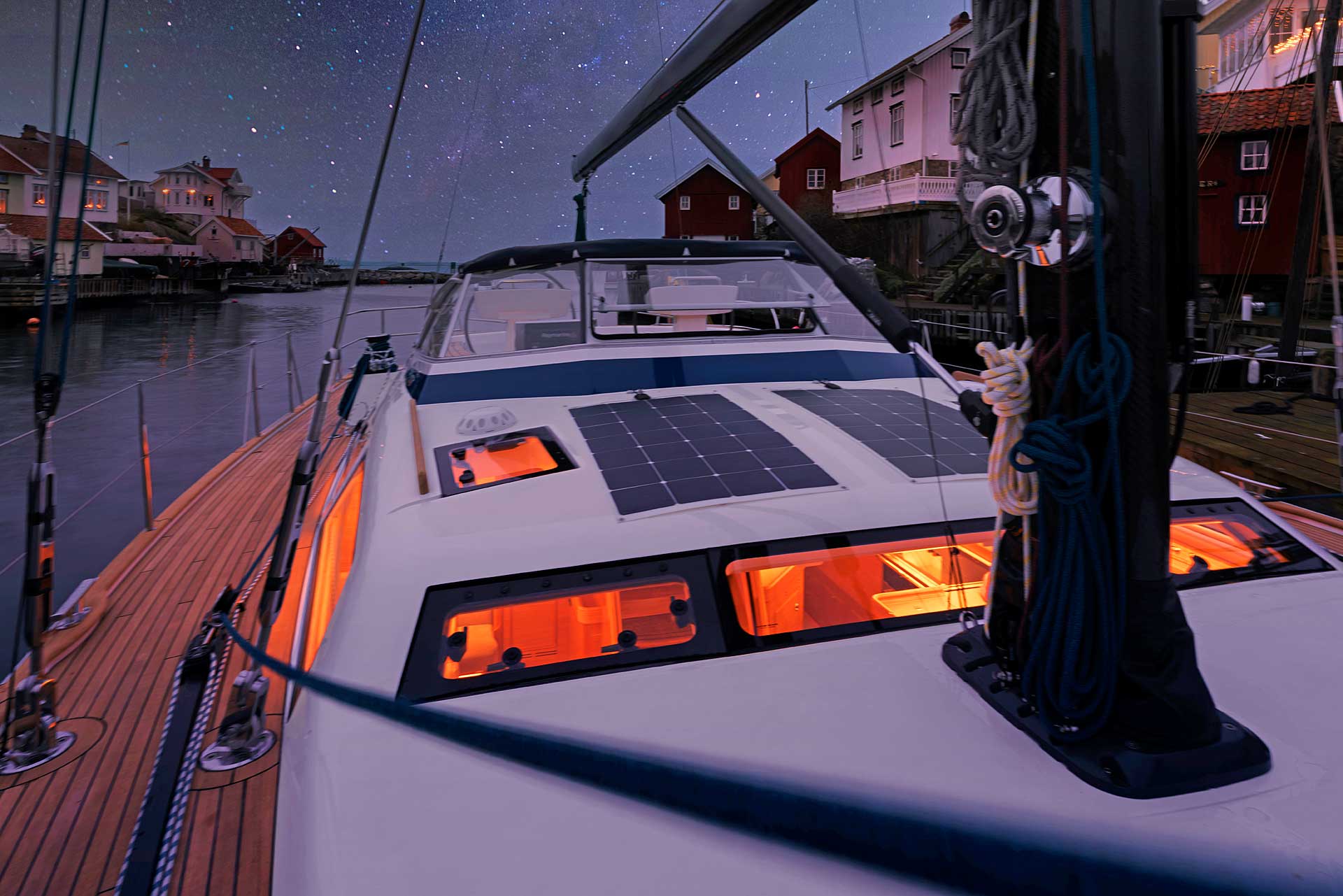

At anchor under a sky full of stars »

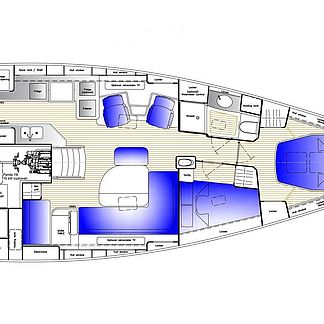

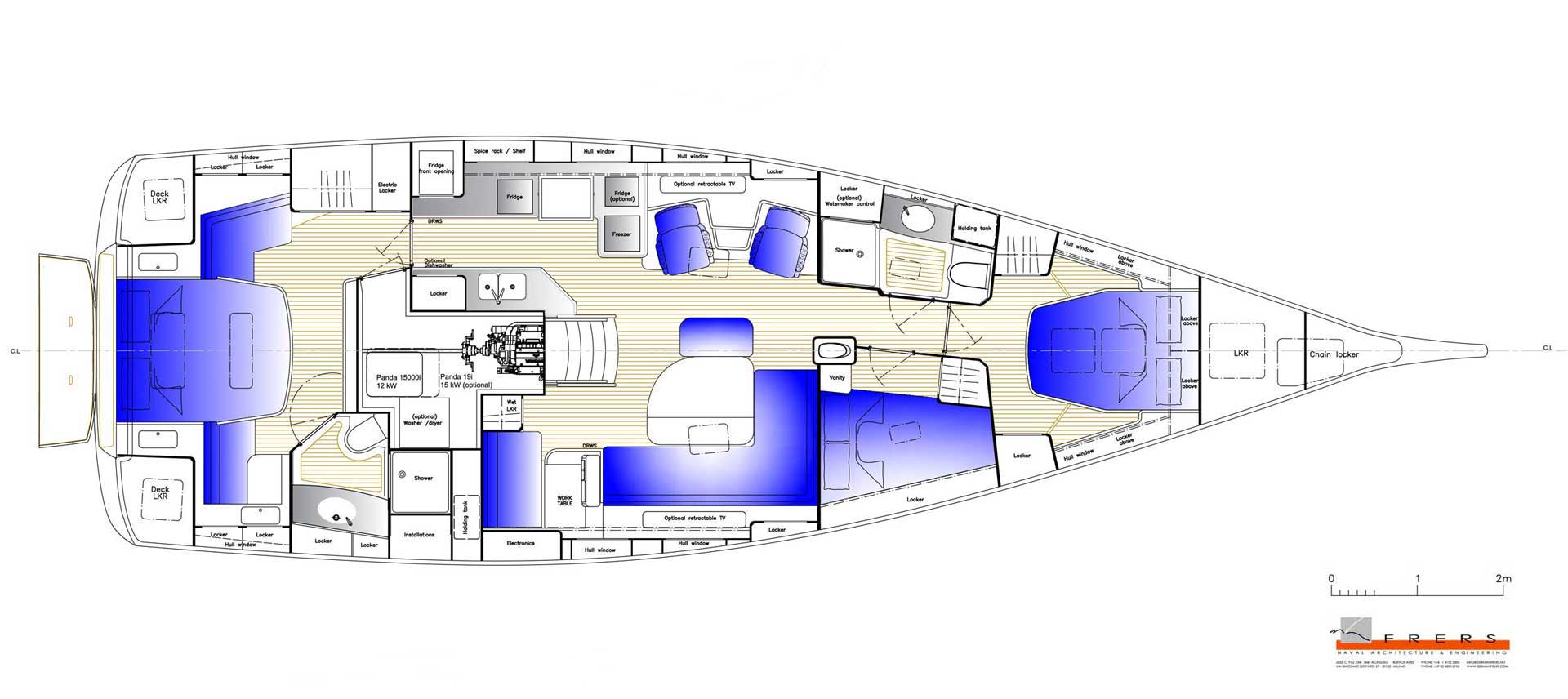

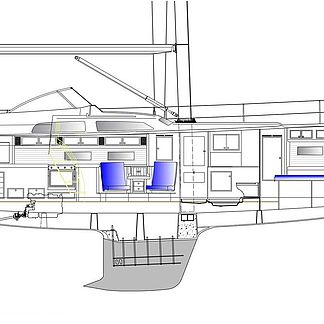

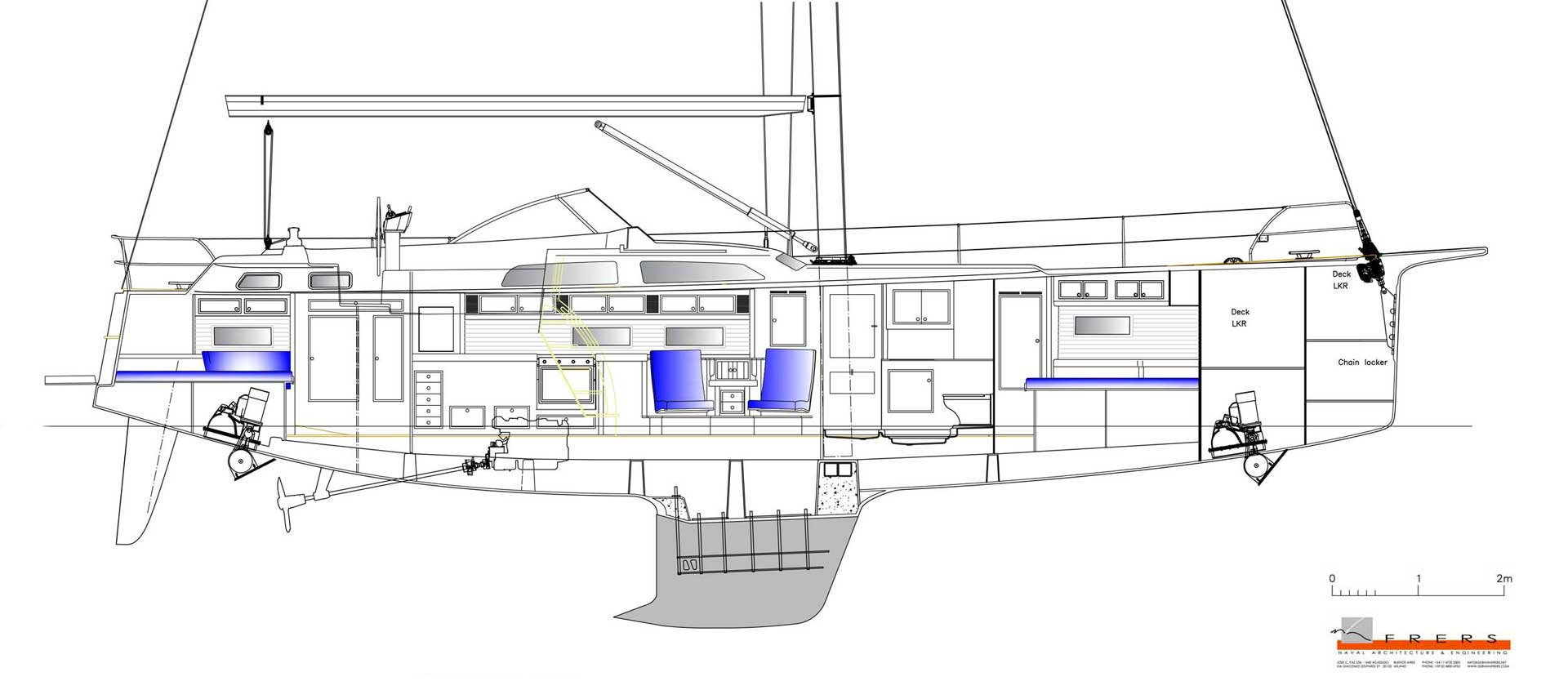

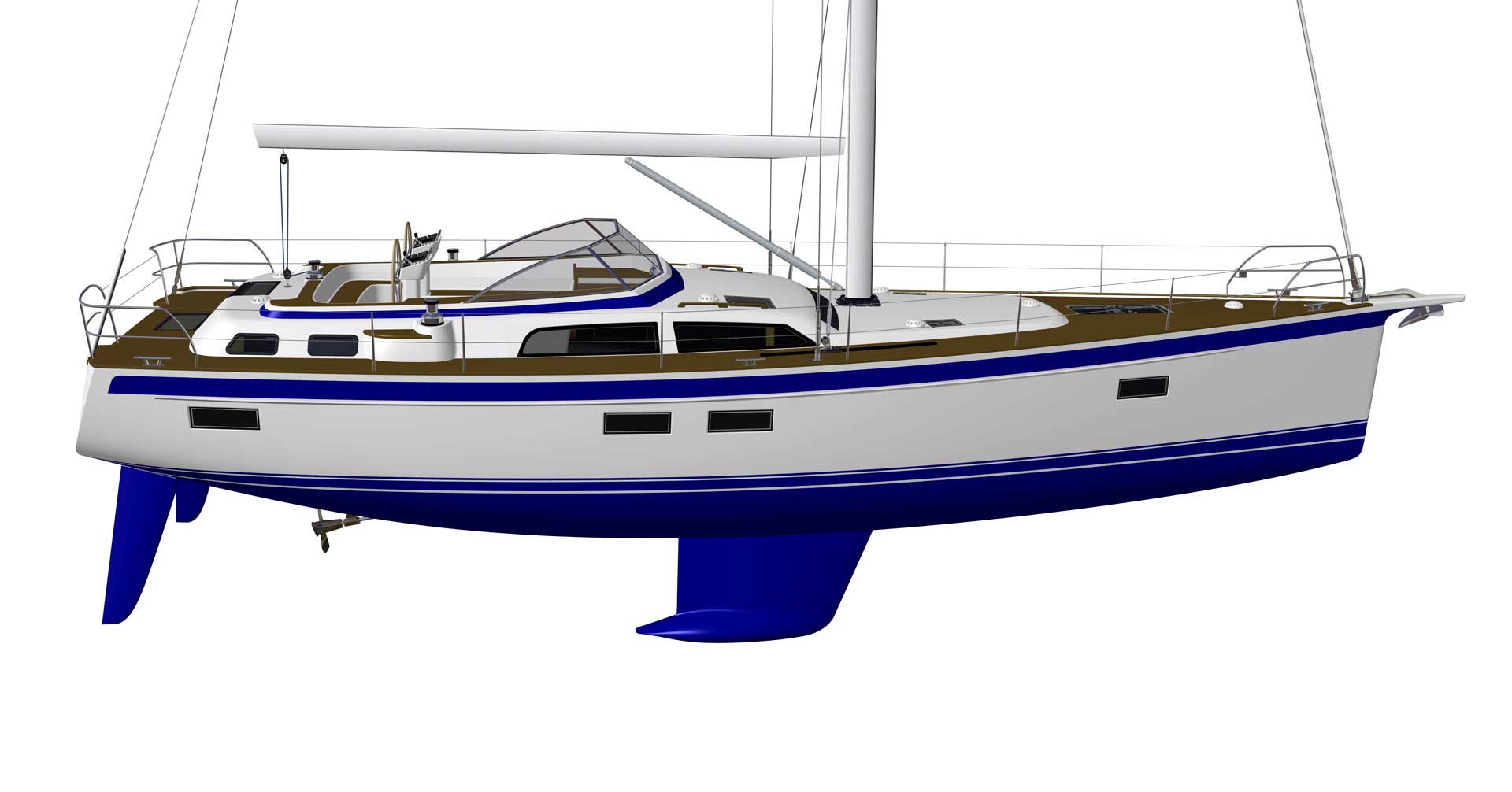

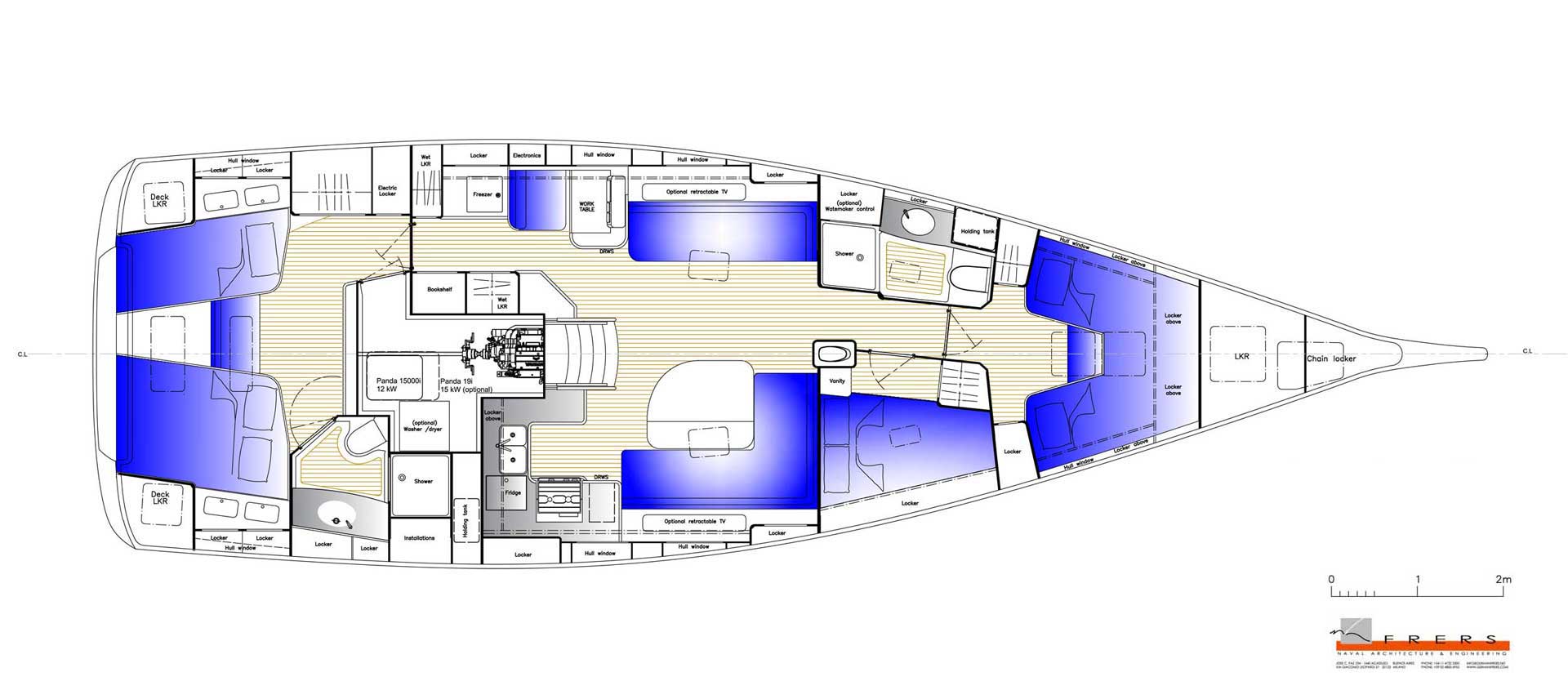

PLANS
DATA SHEET
| Designer | Germán Frers Naval Architecture |
|---|---|
| CE category | A - Unlimited ocean voyages |
| Hull length | 15.23 m / 50’ 0” |
| Maximum length | 16.34 m / 53’ 7’’ |
| Waterline at rest | 14.80 m / 48’ 7’’ |
| Beam without rubrail | 5.00 m / 16’ 5” |
| Beam with rubraill | 5.02 m / 16’ 6” |
| Draft, empty standard boat | 2.35 m* / 7’ 8 1/2” * |
| Displacement, empty standard boat | 21 t / 46 300 lbs |
| *= Also available as a shallow draft version | |
| Keel weight | 7.4 t / 16 350 lbs |
|---|---|
| Keel type | lead on deep bilge |
| Sail area with genoajib | 131,5 m² / 1 410 ft² |
| Sail area, optimized main and genoajib | 149.5 m² / 1 635 ft² |
| Air draft, ex Windex | 24.9 m / 81’ 8’’ |
| Engine | Yanmar 4JH110CR |
| Power at crank shaft | 81 kW / 110 HP |
| Transmission | Hydraulic with shaft |
| Diesel | 1000 l / 264 US gallon |
| Fresh water | 940 l /248 US gallon |
| Transport hight, lowest point of keel to pedestal heads | 4.92 m / 16' 2'' |
| Transport hight, lowest point of keel to under the windscreen, windscreen, pedestal heads and pulpit removed | 4.68 m / 15' 4 1/4'' |
